EPS Sandwich Panel Production Line
This EPS sandwich panel production line is engineered for the continuous manufacturing of insulated sandwich panels. It features precision rollers and an automated cutting system to ensure consistent panel quality.
Technical Specifications
Overview
High-Efficiency Production Line

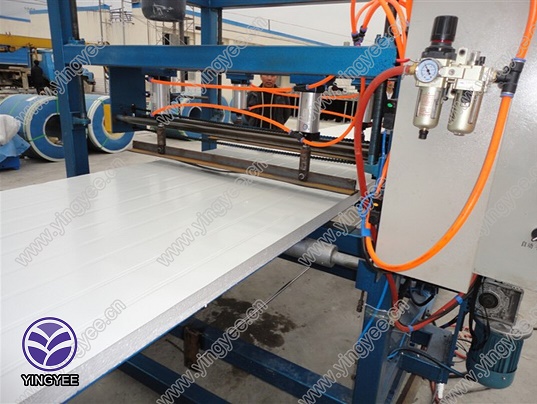

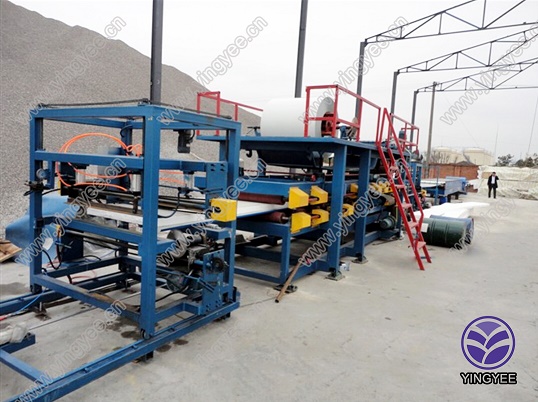

This EPS sandwich panel roll forming machine is engineered for the continuous, high-volume production of insulated sandwich panels. Designed for versatility, it handles various panel thicknesses and widths, making it ideal for manufacturing wall and roof panels for industrial and commercial construction. The system integrates automated feeding, roll forming, cutting, and stacking processes to ensure consistent quality and energy-efficient building materials.
Technical Specifications
- Maximum Panel Width
- 1200 mm
- Maximum Panel Thickness
- 25 cm
- Production Speed
- 5-7 M/min
- Main Power
- 34.1 kw
- Total Weight
- 15-16t
System Components
Key Components
- Profile forming machine
- Decoilers
- Laminators
- Roll forming units
- Automated cutting system
- Stacking system
Panel Capabilities

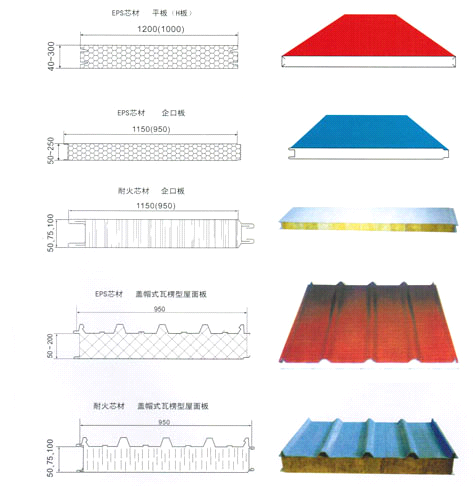

Profile Dimension Ranges
| Core Type | Thickness Range (mm) | Width Range (mm) |
|---|---|---|
| EPS Core | 40-300 | 950-1200 |
| Fire-resistant Core | 50-100 | 950-1150 |
- Supported Panel Types
- Flat (H-shaped)Groove typeCorrugatedEPS CoreFire-resistant Core
