Technical Specifications
Overview
Intelligent Pump Control

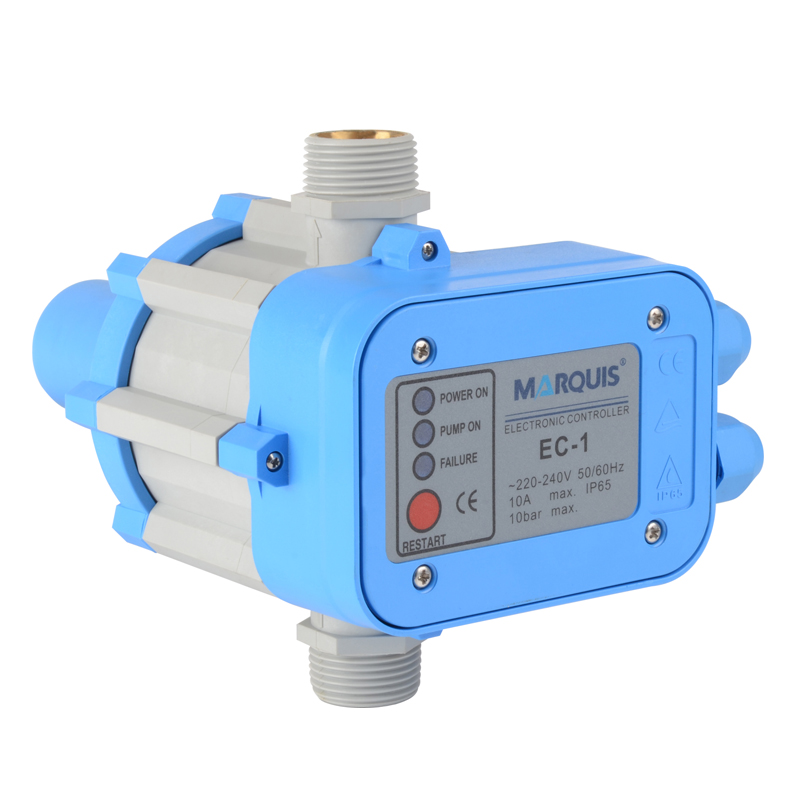

This electronic water pump controller is designed to automatically manage water pumps based on real-time pressure and flow detection. By integrating advanced electronic and pressure sensor technology, it ensures seamless pump operation, starting and stopping automatically as needed. It is a reliable solution for domestic water systems, irrigation setups, and various industrial applications requiring consistent water pressure.
Electrical Specifications
- Voltage
- 220V-240V / 110V-120V
- Frequency
- 50Hz - 60Hz
- Maximum Current
- 10 A
Performance Metrics
Power Ratings
1.1 kW
Max Power (220V)
0.75 kW
Max Power (110V)
Pressure Settings
- Starting Pressure: 1.5 bar / 2.2 bar
- Maximum Working Pressure: 10 bar
Physical & Environmental
Connection Ports
| Port Type | Specification |
|---|---|
| Inlet | G1 (External Thread) |
| Outlet | G1 (Internal Thread) |
Protection Grade
IP54
- Max Working Temperature
- 60 °C
