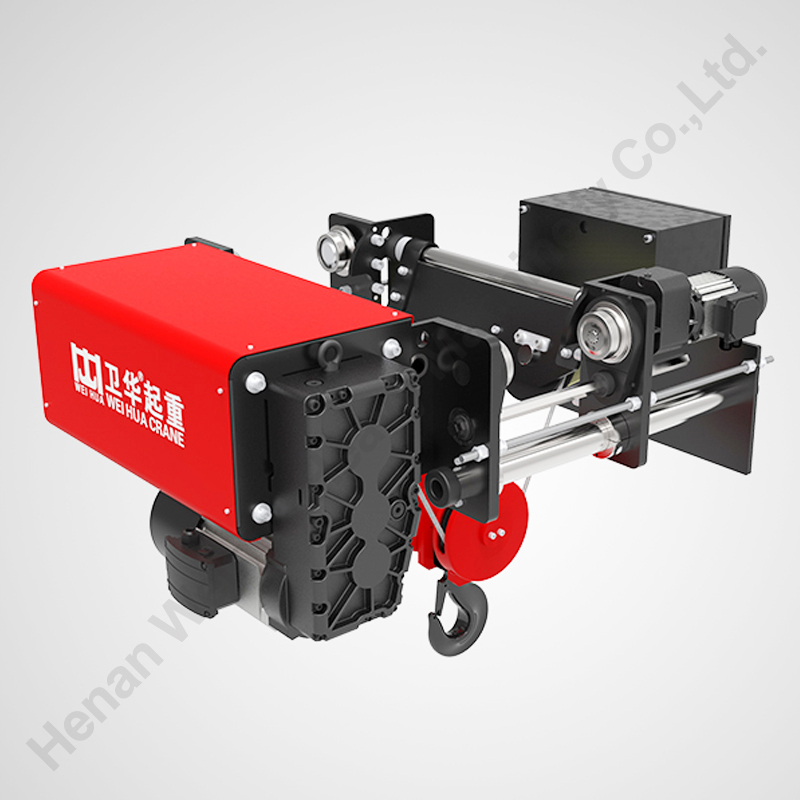

Electric Wire Rope Hoist - European Standard
This electric wire rope hoist is designed for demanding industrial applications. It features robust construction and advanced control systems for smooth and efficient lifting.
Technical Specifications
Overview
High-Performance European Standard Hoist
This electric wire rope hoist is engineered to meet rigorous international standards, offering a modular design for versatile industrial applications. Built with advanced high-precision components, it features a compact, low-headroom configuration that maximizes lifting height and minimizes dead zones in your facility. Designed for efficiency and sustainability, the unit incorporates energy-saving motor technology and maintenance-free components, ensuring long-term reliability and environmental compliance.
Technical Specifications
Performance Highlights
70 dB
Noise Level
30 %
Motor Power Reduction
20 %
Efficiency Improvement
NRL Model Specifications
| Capacity (t) | Work Duty | Lifting Speed (m/min) | Lifting Height (m) | Rail Width (mm) |
|---|---|---|---|---|
| 3 | M5 | 5/0.8 | 2-20 | 200-350 |
| 5 | M5 | 5/0.8 | 2-20 | 200-450 |
| 10 | M5 | 5/0.8 | 2-20 | 200-550 |
- Available Structural Models
- NRL (Low-headroom monorail)NRS (Standard headroom monorail)NRT (Double-rail trolley)NRF (Foot-mounted)
Design Features
Key Design Concepts
- Modular design with flexible motor and reducer configurations
- Compact low-headroom design for maximized lifting space
- High-precision hard-toothed gear reducer
- Aluminum alloy shells for heat dispersion and noise reduction
- Maintenance-free design for critical components
Safety & Compliance
Safety Standards
GB Standard CompliantFEM Standard CompliantNon-asbestos brake padsElectromagnetic disk brakeT-class high-strength hook
