Technical Specifications
Overview
Compact Electric Lifting Solution

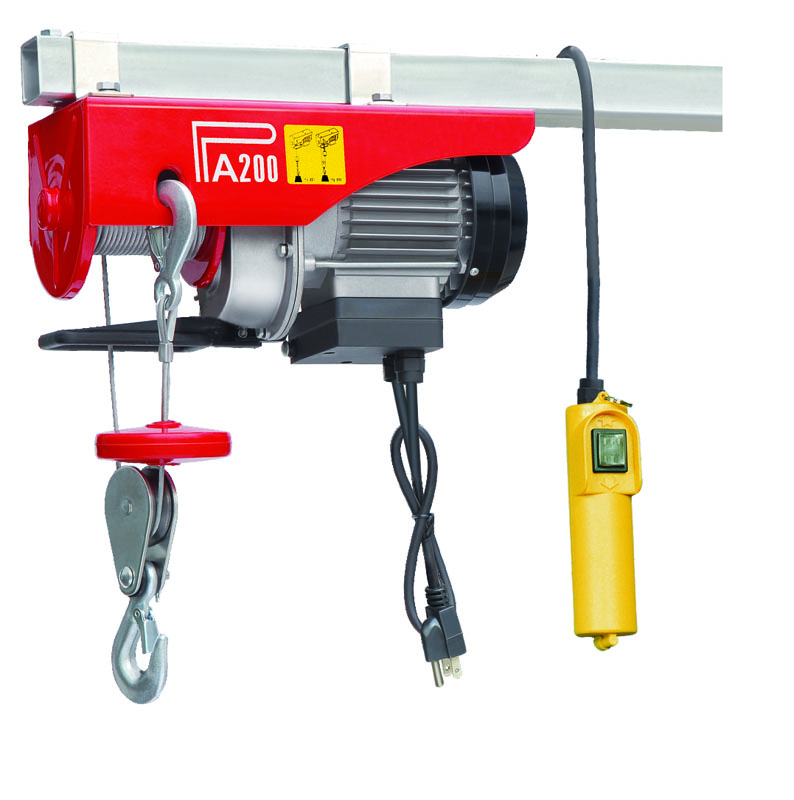

This electric wire rope hoist is designed for reliable lifting in workshops, garages, and industrial assembly lines. It features a high-performance 460W motor with thermal protection and an automatic braking system to ensure safe and efficient operation. Built with durable, flame-retardant materials and an anti-twist aircraft wire rope, this hoist provides a safe solution for material handling and light equipment lifting.
Technical Specifications
- Rated Voltage
- 120 V
- Frequency
- 60 Hz
- Input Power
- 460 W
Performance Metrics
Lifting Capacity
100 kg
Single Hook
200 kg
Pulley Hook
Lifting Height
12 m
Single Hook
6 m
Pulley Hook
Lifting Speed
10 m/min
Single Hook
5 m/min
Pulley Hook
Safety & Construction
Compliance & Approvals
UL1340ETLCETLTUVIP54
Material Specifications
- 100% Copper wire motor
- High grade silicon steel motor core
- Galvanized aircraft wire rope (19x7 structure)
- Reinforced flame-retardant nylon components
- Safety Features
- Thermal ProtectionAutomatic BrakeEmergency StopUpper Limit SwitchLower Limit SwitchAnti-twist Rope
