Technical Specifications
Product Overview

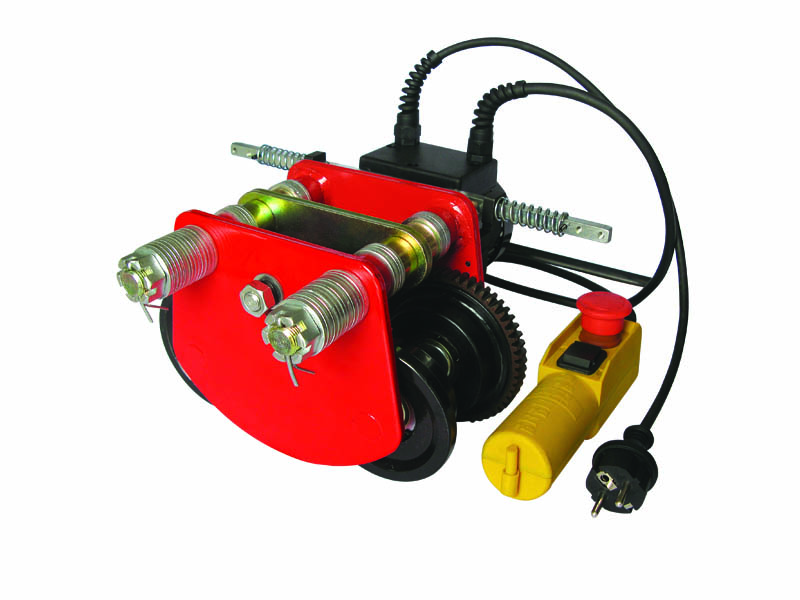

High-Efficiency Electric Trolley
This electric trolley is engineered for reliable material handling, featuring a robust 100% copper wire motor and high-grade silicon steel construction for improved efficiency and longevity. It incorporates advanced safety features, including an overheat protector and a high-performance braking system, ensuring secure operation under load. Built for industrial environments, the unit is rated to IP54 and complies with EU standard EN-14492-2, making it a dependable solution for various lifting applications.
Technical Specifications
- Rated Voltage
- 230V-50Hz
- Input Power
- 200 W
- Loading Capacity
- 1000 kg
- Moving Speed
- 16 m/min
- Assembling Height
- 3 m
Operational Features
Material Highlights
- 100% Copper wire motor
- High grade silicon steel
- Galvanized aircraft wire rope
- Reinforced flame retardant nylon parts
Performance Metrics
54 IP
IP Rating
14,492 EN-14492-2
EU Standard Compliance
- Safety Features
- Overheat ProtectionHigh-Performance BrakingForward/Backward LimitAnti-Twist Wire Rope
