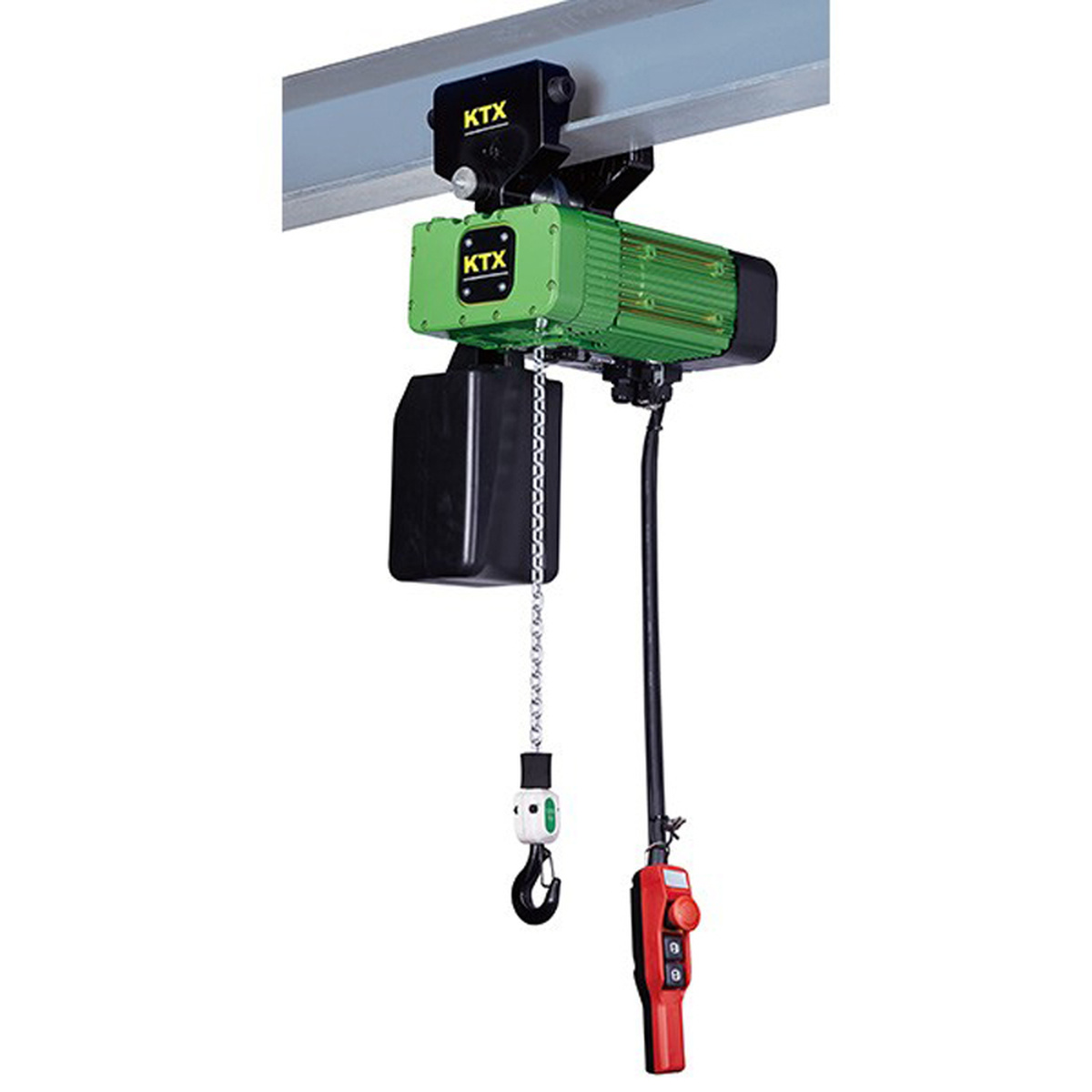

Electric Chain Hoist with Trolley
This electric chain hoist includes an integrated trolley system for efficient lifting and horizontal movement of loads. It features a robust construction, precise controls, and multiple safety mechanisms.
Technical Specifications
Overview
High-Performance Electric Chain Hoist
This electric chain hoist with an integrated trolley system is engineered for efficient vertical lifting and horizontal load movement in industrial environments. It features a lightweight, robust aluminum alloy shell with excellent heat dissipation and a fully sealed design suitable for demanding operating conditions. With advanced safety features including reverse phase protection, limit switches, and side magnetic braking, this hoist ensures reliability, low noise, and high operational safety.
Key Features
Construction
- Lightweight aluminum alloy shell
- Fully sealed housing design
- Imported FEC80 super heat-treated alloy steel chain
- Durable chain bag
- Safety & Protection
- Reverse Phase ProtectionLimit SwitchSide Magnetic Braking24V/36V Control CircuitOverload Capacity
Technical Specifications
Performance Metrics
1,440 r/min
Rotation Speed
6.3 mm
Chain Diameter
Model Specifications
| Model | Capacity (t) | Lifting Speed (m/min) | Lifting Motor (kW) | Traveling Speed (m/min) |
|---|---|---|---|---|
| KTX 0.5-01S(D) | 0.5 | 7.2(7.2/2.4) | 1.1(1.1/0.37) | 11/21 |
| KTX 01-01S(D) | 1 | 6.8(6.9/2.3) | 1.5(1.8/0.6) | N/A |
Electrical
Power Requirements
220-440V50/60Hz3 Phase
- Control Voltage Options
- 24V36V48V
