Electric Chain Hoist - European Type
This European type electric chain hoist offers flexible operation and accurate positioning. Its main lift speed ensures efficient performance, while the low-speed setting allows for smooth and precise loading.
Technical Specifications
Overview

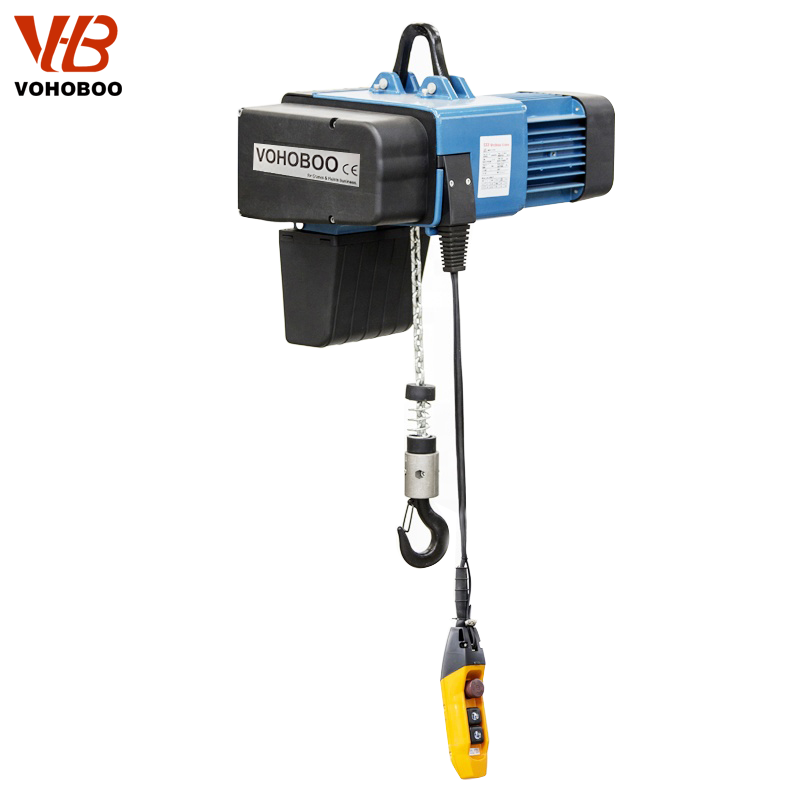

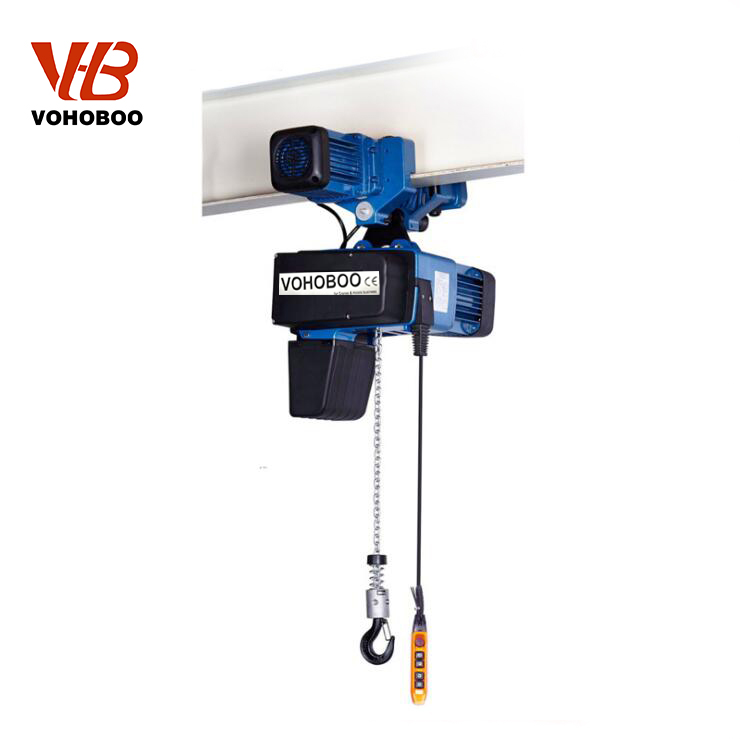

High-Precision European Electric Chain Hoist
This European-type electric chain hoist is engineered for industrial and construction applications, offering superior positioning accuracy and flexible operation. Designed with a compact C-shaped structure to maximize vertical space, it features a high-performance motor capable of double-speed lifting with variable frequency control. Its maintenance-free gearbox and brake system, combined with a high-strength hardened chain, ensure reliable operation in demanding environments.
Technical Specifications
Performance Metrics
0.51 tons
Safe Working Load
5 m
Hook Path
5.3 mm
Chain Diameter
380 V
Voltage

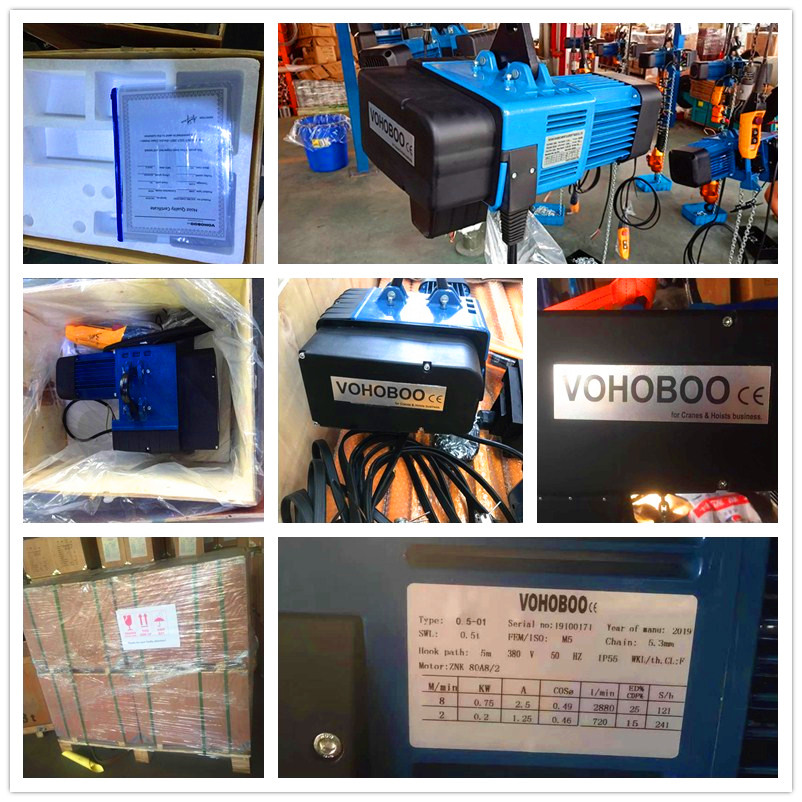

Lifting Performance Data
| Speed Mode | Speed | Power | Current |
|---|---|---|---|
| High Speed | 8 m/min | 0.75 kW | 2.5 A |
| Low Speed | 2 m/min | 0.2 kW | 1.25 A |
Motor & Electrical Ratings
- Motor Model: ZNK 8048/2
- Frequency: 50 Hz
- Protection Class: IP55
- Control Voltage: 24V
- Insulation Class: F
Design & Construction
Construction Details
- Compact C-shaped structure for space optimization
- Die-cast aluminum shell with automotive-grade paint
- 360-degree rotating forged hook with safety tongue
- Maintenance-free gearbox and brake system
- Helical gear drive for reduced noise
Standards & Compliance
CE CertifiedISO M5 ClassFEM Compliant
- Safety & Protection
- Overload ProtectionEmergency StopUpper & Down Limit SwitchesMoisture-proofDust-proofSlip Clutch
