Electric Chain Hoist
This electric chain hoist is designed for lifting heavy loads with precision and safety. It is ideal for industrial and construction applications requiring reliable vertical lifting.
Technical Specifications
Overview

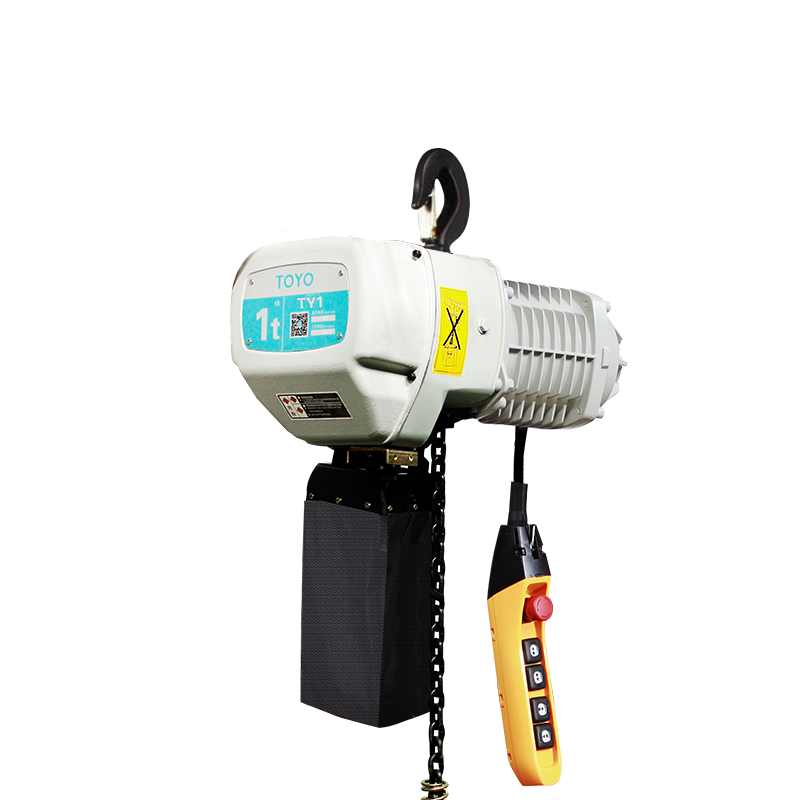

High-Performance Electric Chain Hoist
The TY1 series electric chain hoist is a robust and efficient lifting solution designed for demanding industrial and construction environments. It integrates the portability of a chain hoist with the power of an electric motor, featuring high-precision alloy gears for low-noise operation and a G80 carburized alloy chain for reliable, high-speed performance. Safety is a core priority, incorporating thermally treated alloy hooks, phase protection, and upper/lower mechanical limit switches to prevent overloading and ensure secure operation.
Performance Metrics
Key Performance Metrics
10 t
Max Capacity
3 m
Standard Lift Height
227 kg
Max Net Weight
Technical Specifications
Model Specifications
| Model | Capacity (t) | Lifting Speed (m/min) | Motor Power (KW) |
|---|---|---|---|
| 0.5-01S | 0.5 | 7.2 | 0.8 |
| 01-01S | 1 | 6.6 | 1.5 |
| 1.5-01S | 1.5 | 8.8 | 3 |
| 02-01S | 2 | 6.6 | 3 |
Safety & Features
Safety Features
- Thermally treated alloy hook (deforms without fracturing under overload)
- Upper and lower mechanical limit switches
- Phase protection device for wiring error prevention
- High-precision alloy gears
- G80 carburized alloy chain
- Optional Accessories
- Wireless remote control
