Electric Chain Hoist
This electric chain hoist is a robust lifting solution for industrial and commercial applications. It features a durable chain and powerful electric motor to provide reliable and efficient lifting.
Technical Specifications
Product Overview
Industrial-Grade Electric Chain Hoist

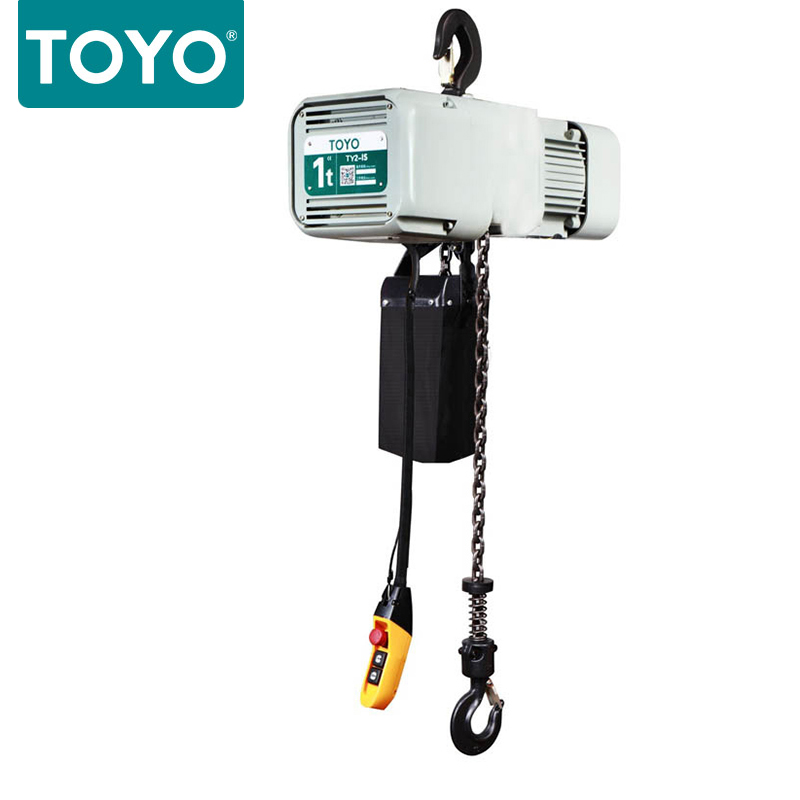

The TY2 Electric Chain Hoist is a robust lifting solution engineered for demanding industrial and commercial environments. It features an advanced cooling wind motor design housed in a durable aluminum die-casting shell for superior heat dissipation. With integrated safety mechanisms like a carbon friction clutch and electromagnetic braking, this hoist ensures both operator security and load protection during intensive operations.
Key Features
Standard Features
- Frequency inverter for dual lifting and moving speeds
- Carbon friction clutch overload protection
- Upper-Lower limit switches
- Electromagnetic brake system
- Thermal motor protector
- IP65 rated push-button control
Performance Metrics
Featured Performance
1 t
Capacity
3 m
Standard Lift
54 kg
Min Net Weight
Technical Data
Technical Specifications
| Capacity (t) | Model | Output (kw) | ISO/FEM Class |
|---|---|---|---|
| 1 | TY2-010S | 1.8 | M5/2AM |
| 1.5 | TY2-015S | 1.8 | M5/2AM |
Compliance
- Standards
- ISO ClassificationFEM ClassificationG80 Grade Chain
