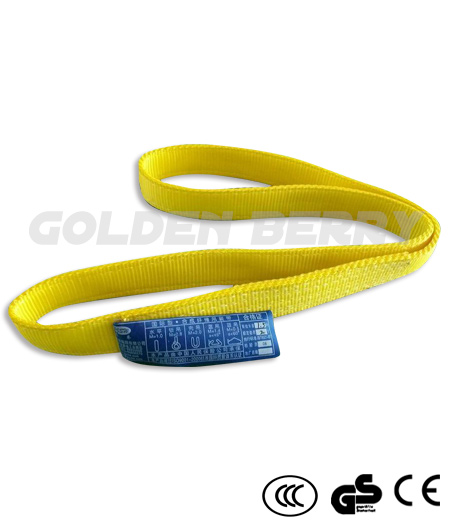

EB-B Type Webbing Sling
This EB-B type webbing sling can be configured as a single or multi-layer belt with varied suture options. The flat lifting belt's bearing surface reduces surface pressure, making it suitable for delicate objects.
Technical Specifications
Product Overview
EB-B Type Webbing Sling
The EB-B type hoisting belt is a high-strength, versatile solution designed for safe and efficient load handling. Constructed from durable, woven synthetic fibers, these slings feature a smooth surface to protect delicate loads while maintaining a high strength-to-weight ratio. They are compliant with European EN1492-1:2000 and Chinese JB/T8521-2007 industry standards, ensuring reliable performance in demanding lifting environments.
Key Features
Features
- High strength-to-weight ratio
- Non-conductive material for safety
- Flat surface design to reduce pressure load
- Color-coded capacity identification
- Smooth surface protects delicate objects
- Lightweight and flexible for small spaces
- Optional PU hardened surface for wear resistance
- Optional protective sleeves available
Compliance & Standards
- Standards
- EN1492-1:2000JB/T8521-2007
Technical Specifications
Load Capacity & Dimensions
| Type | Straight Load (kg) | Width (mm) | Min Length (m) |
|---|---|---|---|
| EB-B-01 | 1,000 | 25 | 1 |
| EB-B-02 | 2,000 | 50 | 1 |
| EB-B-03 | 3,000 | 75 | 1 |
| EB-B-04 | 4,000 | 100 | 1 |
| EB-B-05 | 5,000 | 125 | 1 |
