EB-A Type Webbing Sling
The flat lifting belt has a maximum load range of 0-50 tons and a length range of 1-100 meters. It features a high strength to weight ratio.
Technical Specifications
Overview

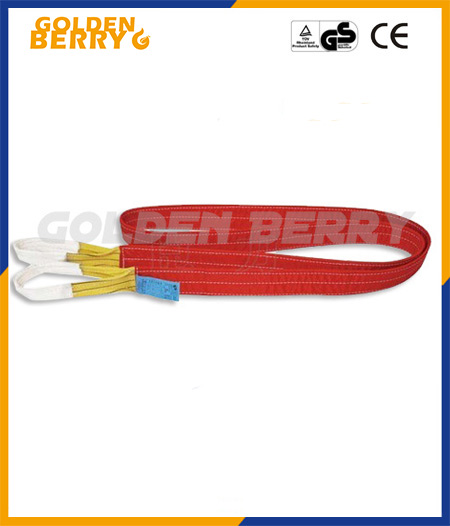

EB-A Type Webbing Sling
The EB-A Type Webbing Sling is a high-strength, versatile lifting solution designed for industrial applications. Engineered with a high strength-to-weight ratio, these slings are both lightweight and soft, making them easy to handle even in confined spaces. They feature a flat bearing surface to reduce pressure on loads and are non-conductive to minimize contact risks, ensuring safe and efficient lifting operations.
Technical Specifications
Load Capacity Range
50 tons
Maximum Load
Length Range
1 m
Min Length
100 m
Max Length
- Standards Compliance
- EN1492-1:2000JB/t8521-2007CE
Features
Key Features
- High strength-to-weight ratio
- Flat bearing surface reduces pressure
- Non-conductive material
- Surface can be PU-hardened for wear resistance
- International standard color-coding for capacity identification
- Optional wear protective sleeves and cut-off protection covers

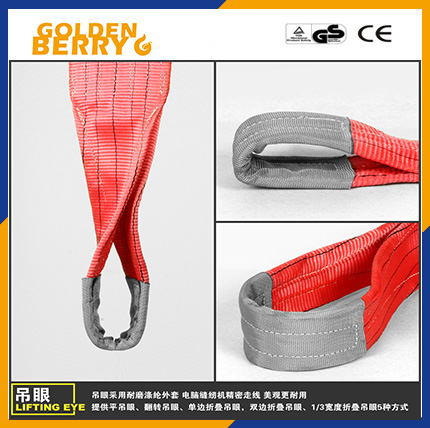

Lifting Eye Configurations
- Flat lifting eyes
- Swivel lifting eyes
- Single-ply folded lifting eyes
- Double-ply folded lifting eyes
- 1/3 width folded lifting eyes
Performance Data
Load Capacity Reference
| Model | Straight Lifting (kg) | Width (mm) |
|---|---|---|
| EB-A-01 | 1,000 | 25 |
| EB-A-02 | 2,000 | 50 |
| EB-A-03 | 3,000 | 75 |
| EB-A-04 | 4,000 | 100 |
| EB-A-05 | 5,000 | 125 |
| EB-A-06 | 6,000 | 150 |
| EB-A-08 | 8,000 | 200 |
| EB-A-10 | 10,000 | 250 |
