Dump Tractor
This dump tractor is a robust vehicle designed for heavy-duty hauling and dumping. Its rugged construction and off-road capabilities make it suitable for demanding work environments.

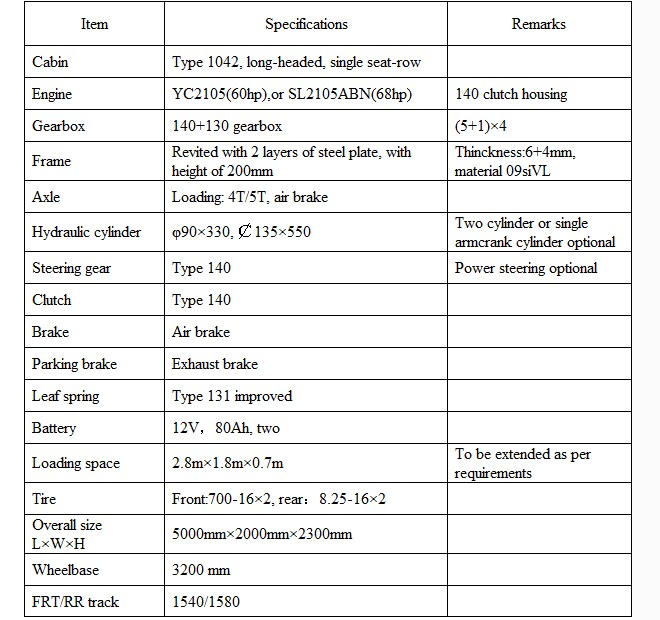

Technical Specifications
Overview
Robust Hauling Performance
This dump tractor is engineered for heavy-duty hauling and reliable operation in demanding environments. Featuring a reinforced frame and high-capacity dump bed, it is built to handle medium and short-distance transportation tasks in both urban and rural settings. Its rugged construction, combined with flexible steering and excellent grade-ability, ensures efficient material handling and consistent performance.
Performance & Powertrain
- Engine Options
- 60hp68hp
- Gearbox Configuration
- 140+130 gearbox ((5+1)x4)
- Clutch Type
- Type 140
- Steering
- Type 140 (Power steering optional)
Chassis & Build
- Frame Construction
- Revited with 2 layers of steel plate (thickness 6+4mm, height 200mm)
- Wheelbase
- 3200 mm
- Axle Loading Capacity
- 4T/5T
Dimensions & Capacity
- Overall Dimensions (LxWxH)
- 5000mm x 2000mm x 2300mm
- Loading Space
- 2.8m x 1.8m x 0.7m
- Track Width (FRT/RR)
- 1540mm / 1580mm
Safety & Electrical
- Braking System
- Air brakeExhaust brakeVacuum-assisted optional
- Battery System
- 12V 80Ah (x2)
Tires
Tire Specifications
| Position | Size |
|---|---|
| Front | 700-16x2 |
| Rear | 8.25-16x2 |
