Dual Power Automatic Transfer Switch
This dual power automatic transfer switch is designed for reliable switching between two power sources. It is ideal for critical applications requiring uninterrupted power supply.
Technical Specifications
Product Overview
Reliable Power Continuity

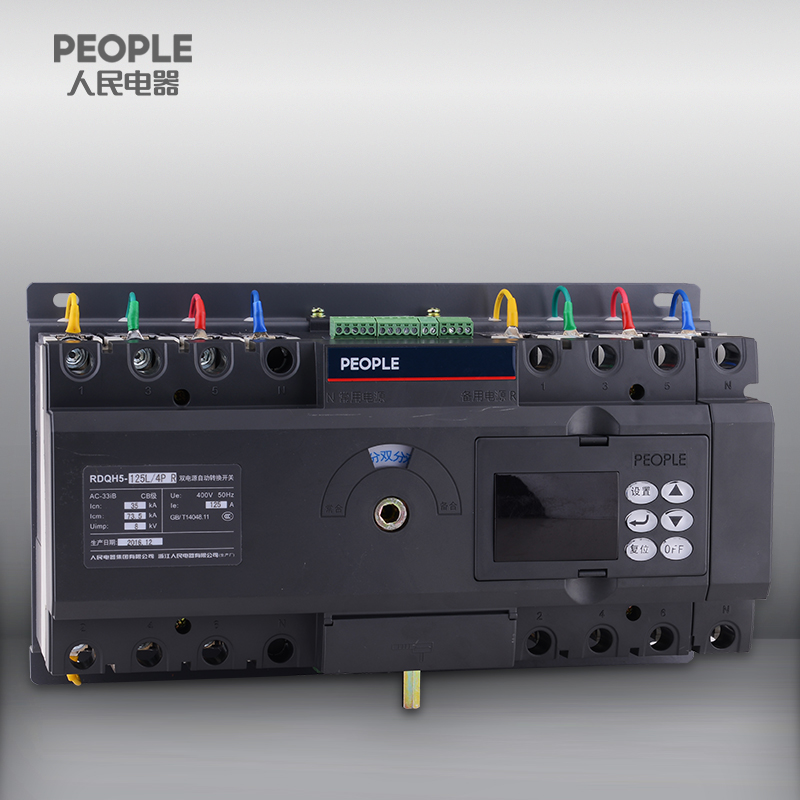

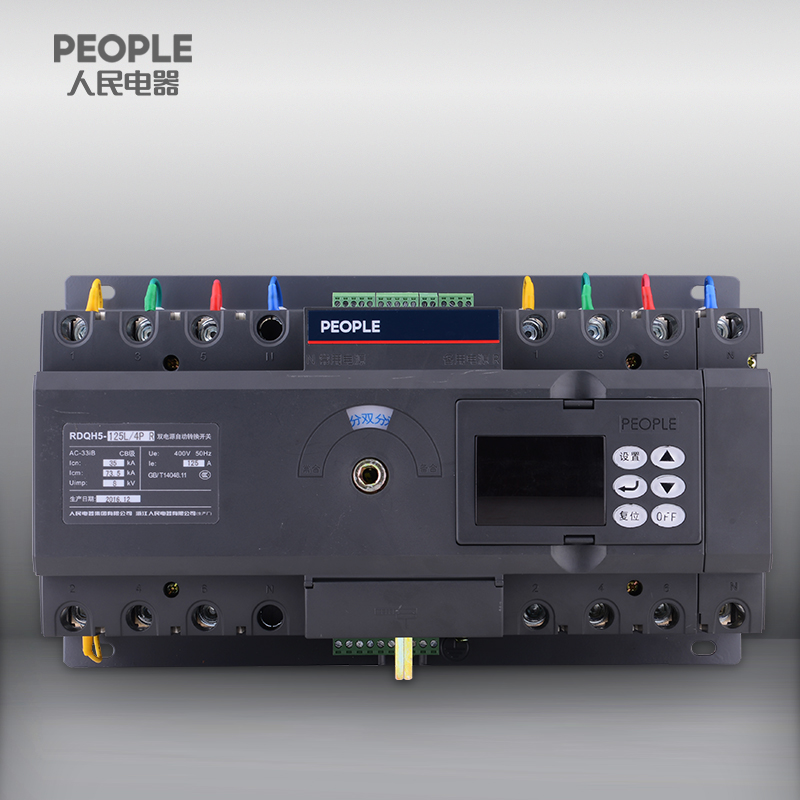

The RDQH5 series dual power automatic transfer switch ensures continuous power supply by automatically switching between two power grids or a grid and generator. Engineered for critical environments like hospitals, banks, and data centers, it provides rapid response to abnormal conditions such as phase failure, overvoltage, or undervoltage. The unit incorporates both overload and short-circuit protection, maintaining high safety standards for demanding electrical systems.
Technical Specifications
Key Performance Metrics
25 kA
Conditional Short-circuit Current (Icn)
73.5 kA
Conditional Peak Short-circuit Current (Icm)
8 kV
Impulse Withstand Voltage (Uimp)
- Rated Working Voltage
- 400 V
- Operating Frequency
- 50/60 Hz
- Rated Current Range
- 16A to 630A
Standards & Certifications
- Standards Compliance
- GB/T14048.11
System Design
Switch Class
CB Grade
Suitable Environments
- High-rise buildings
- Shopping malls
- Banking facilities
- Hospitals
- Airports
