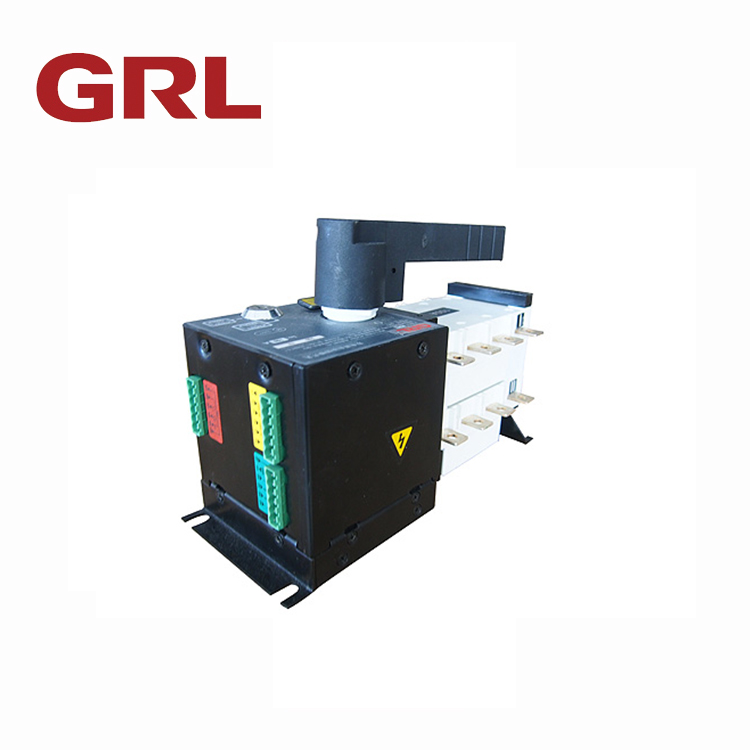

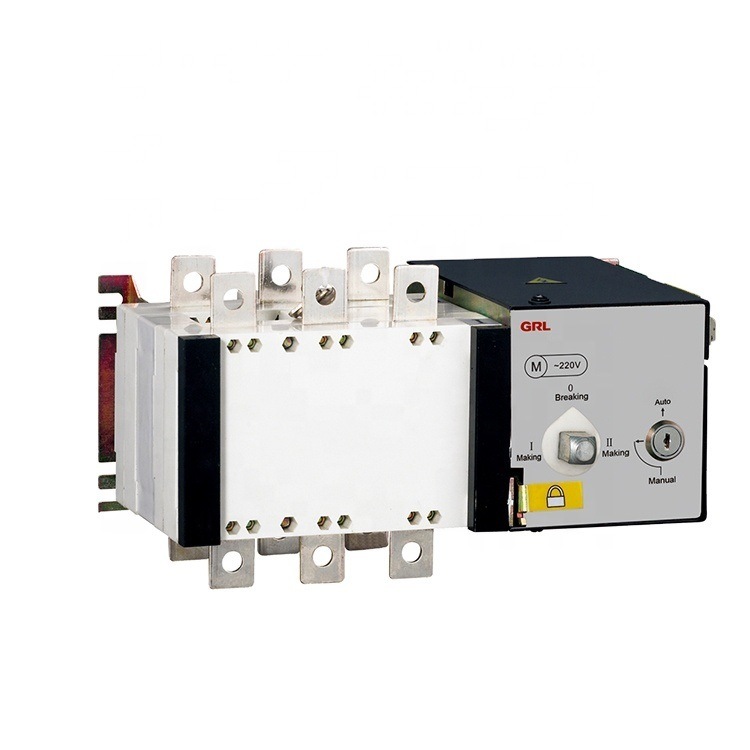

4P Automatic Transfer Switch 160A
This automatic transfer switch is designed to seamlessly transfer between two power sources. It ensures continuous power supply by automatically switching to an alternate source in case of a primary power failure.
Technical Specifications
Overview
Reliable Automatic Power Transfer

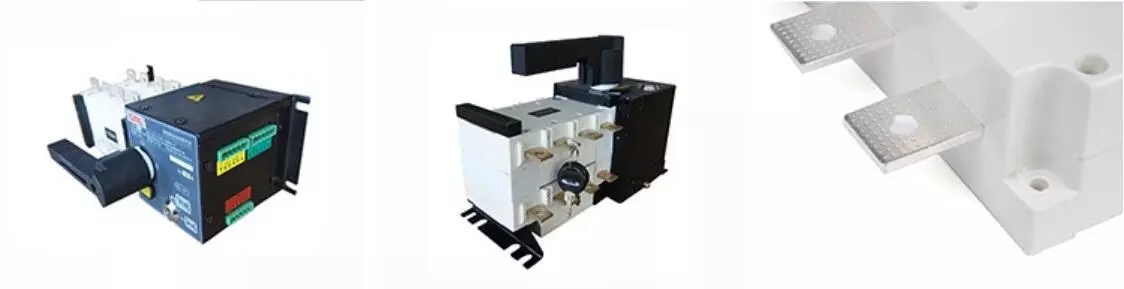

This 4-pole automatic transfer switch is engineered for seamless transition between primary and standby power sources, ensuring uninterrupted operation for critical systems. Designed for industrial and commercial applications, it provides robust protection for distribution and electromotor networks. With its quick-response safety features and durable construction, it is an essential component for facilities that cannot tolerate power downtime, such as hospitals, banks, and fire protection systems.
Technical Specifications
- Rated Current
- 160 A
- Rated Voltage
- 400V AC / 220V DC
- Rated Insulation Voltage (Ui)
- 1000 V
- Number of Poles
- 4
Performance Metrics
Durability (at 400V)
1,400 cycles
Mechanical Cycles
200 cycles
Electrical Cycles
Features
Key Features

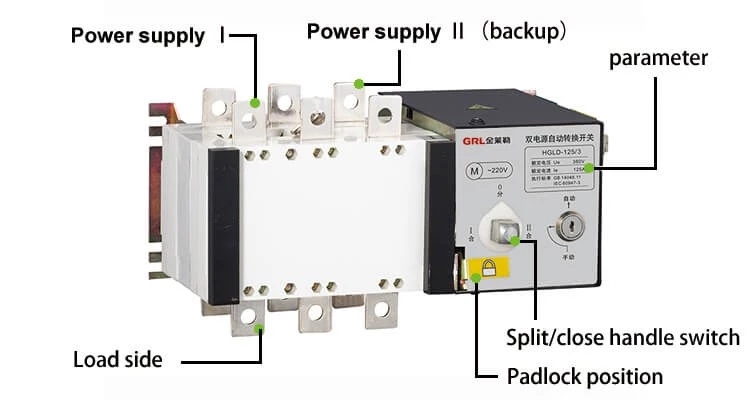

- Manual and automatic operation modes
- Lockable mechanism for enhanced safety

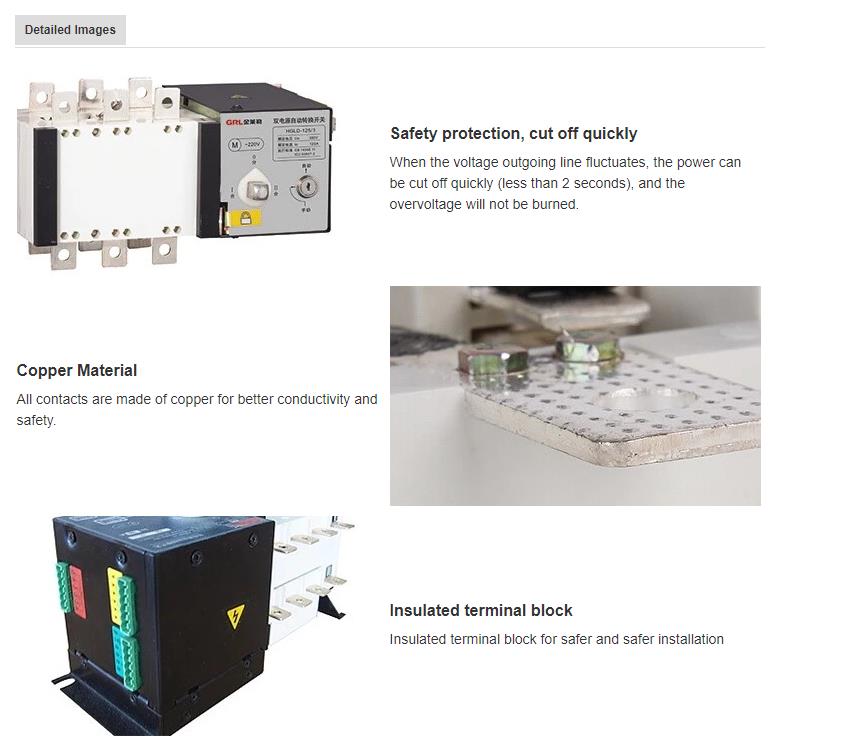

- Copper contacts for improved conductivity
- Insulated terminal block for safer installation
- Fast overvoltage protection (cut-off < 2s)
Compliance
- Certifications & Standards
- CETÜVCQCISO 9001IEC 60947-6-1GB/T 14048.11-2016
