Dual Color LED Indicator Light
This dual color LED indicator light provides clear visual signaling. It is suitable for use in control panels, machinery, and other equipment for reliable status indication.
Technical Specifications
Overview
Professional Dual-Color LED Signaling
The AD22-22DRG series represents a high-performance advancement in indicator technology, replacing traditional incandescent and neon lamps with energy-efficient LED chips. Designed for demanding industrial environments, these indicators offer high brightness, exceptional reliability, and a compact, lightweight form factor. The dual-color functionality and robust polycarbonate construction make them an ideal choice for complex control panels and signaling systems.
Technical Performance
Key Performance Metrics
2.5 kV
Working Frequency Voltage
2 MΩ
Insulation Resistance
20 %
Voltage Tolerance
- Continuous Working Life
- ≥30000h
- Brightness
- ≥100cd/m2
- Comparative Tracking Index (CTI)
- 100 CTI

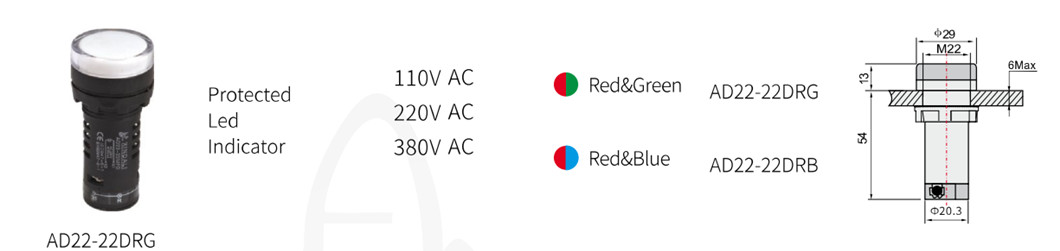

Physical Dimensions
Detailed Dimensions
| Feature | Measurement |
|---|---|
| Head Diameter | Φ29mm |
| Mounting Thread | M22 |
| Max Panel Thickness | 6mm |
| Height Above Panel | 13mm |
| Total Length | 54mm |
| Bottom Diameter | Φ20.3mm |
- Installation Diameter
- 22 mm
Operation & Signaling
Dual-Color Logic
- Terminal X0 to X1: Green Illumination
- Terminal X0 to X2: Red Illumination
- Supported Voltages
- 6V12V24V48V110V220V380V
Compliance & Construction
International Standards
IEC60947-5-1EN60947-5-1CE
Material Properties
- High-intensity Polycarbonate lampshade
- Enhanced anti-surge performance
- Secure bolt-type connector design
Applications
- Target Industries
- Electrical PowerTelecommunicationsMachine ToolsWatercraftTextilesPrintingMining Machinery
