Technical Specifications
Product Overview

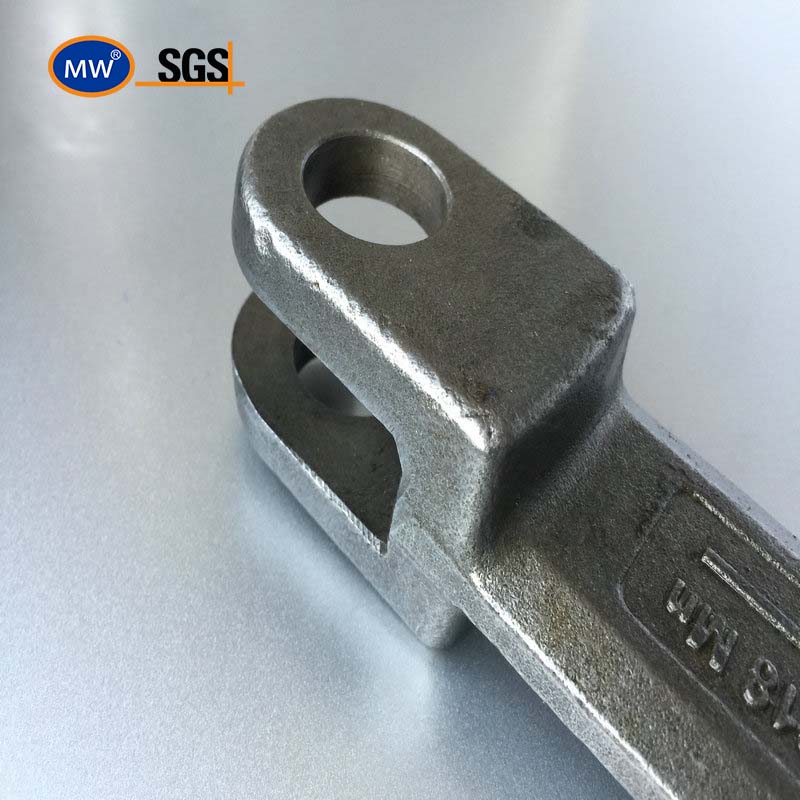

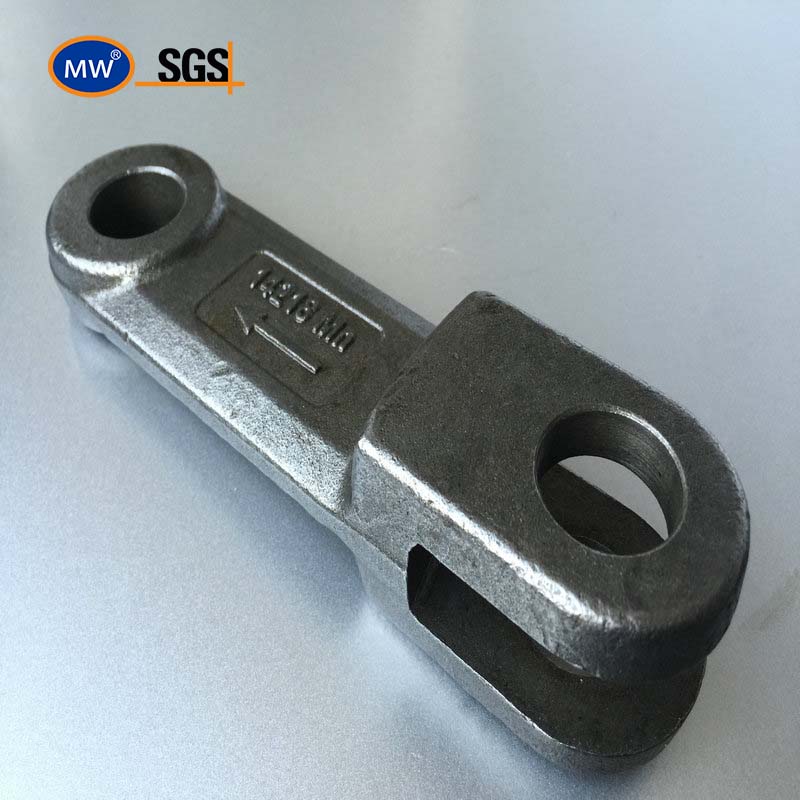

Heavy-Duty Drop Forged Conveyor Chains
Our drop forged scraper conveyor chains are engineered for demanding industrial applications requiring high load capacity and exceptional durability. Manufactured using precision CNC machining and drop forging techniques, these chains provide reliable, consistent performance in challenging environments. Designed to meet international quality standards, they are an ideal solution for material handling systems in manufacturing, mining, and agricultural sectors.
- Available Chain Models
- X-348X-458468X-658X-678698998
Technical Specifications
Chain Dimensions and Performance
| Chain Number | Pitch (in) | Ultimate Strength (lbs) | Weight (lbs/ft) |
|---|---|---|---|
| X-348 | 3.015 | 24,000 | 2.2 |
| X-458 | 4.031 | 60,000 | 3.2 |
| 468 | 4.031 | 70,000 | 7.5 |
| X-678 | 6.031 | 100,000 | 6.7 |
| 698 | 6.031 | 150,000 | 11.4 |
| 998 | 9.031 | 150,000 | 9 |
Key Performance Metrics
150,000 lbs
Max Ultimate Strength
35 in
Max Side Flex Radius
10.8 1000 lbs
Max Work Load
Service & Quality
Quality Compliance
ISO 9001Precision CNC MachinedHeat-Treated OptionsInsured Delivery
Service Advantages
- On-hand engineering support
- Custom design for non-standard requirements
- Prompt response and delivery
- Comprehensive shipping insurance
