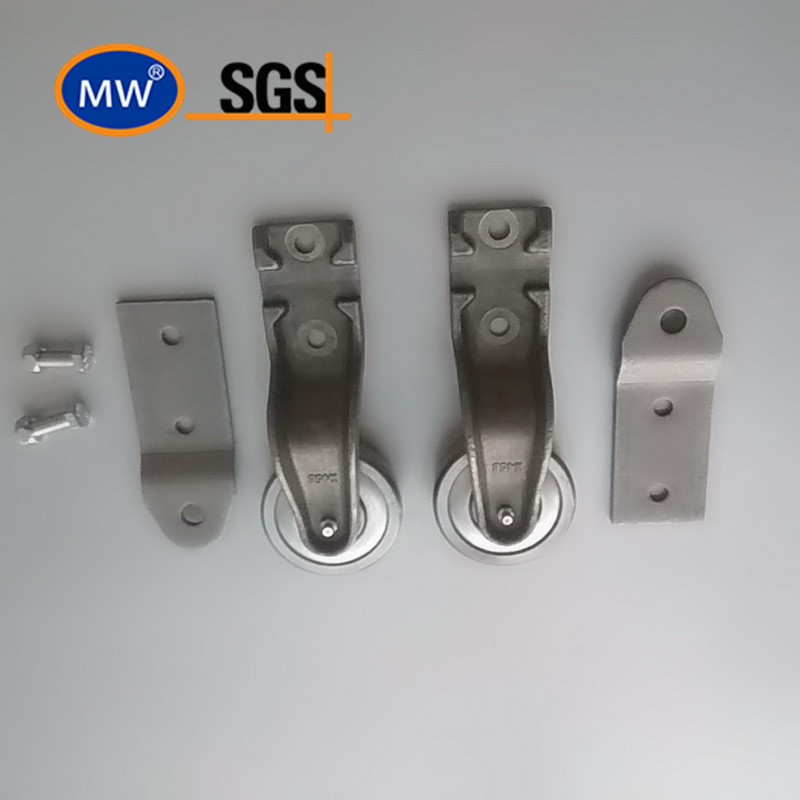

4-Inch I-Beam Overhead Conveyor Trolley
This overhead conveyor trolley is designed for use with 4-inch I-beams. It is constructed from durable metal components, including trolley bodies, wheels, and mounting brackets, making it suitable for industrial applications.
Technical Specifications
Product Overview
High-Performance 4-Inch I-Beam Overhead Conveyor Trolley
This 4-inch I-beam overhead conveyor trolley is engineered for heavy-duty industrial material handling and smooth movement along I-beam tracks. Designed for versatility, it is compatible with various drop-forged rivetless chains and can be customized based on specific technical drawings or samples. These trolleys are ideal for automotive assembly lines, painting lines, and high-capacity conveying systems requiring reliable, long-term performance.
Technical Specifications
Compatible Chain Models
- X348
- X458
- 468H
- X678
- 698
- 698H
- F100x16
- F100x17
- F160x24
- Track Compatibility
- 4-Inch I-Beam
- Available Materials
- 40Cr20CrMnTi42CrMo
- Detachable Chain Series
- 51525557627478
Product Features
Primary Applications
- Car Assembling Lines
- Painting Lines
- Overhead Conveying Systems
- Scraper Conveyors
- Customization
- Production available based on customer drawings or samples
- Available Components
- Free TrolleyYokesExtended PinsPushersNylon Scrapers
Quality & Compliance
Manufacturing Standard
ISO 9001
Certifications
SGS
Scraper Chain Options
Forged Link Scraper Chain Dimensions
| Model/Pitch | Dimensions (mm) |
|---|---|
| P101.6 | 101.6 x 36 x 8 |
| P142 | 142 x 50 x 19 |
| P142 (Wide) | 142 x 50 x 29 |
| P200 | 200 x 50 x 25 |
