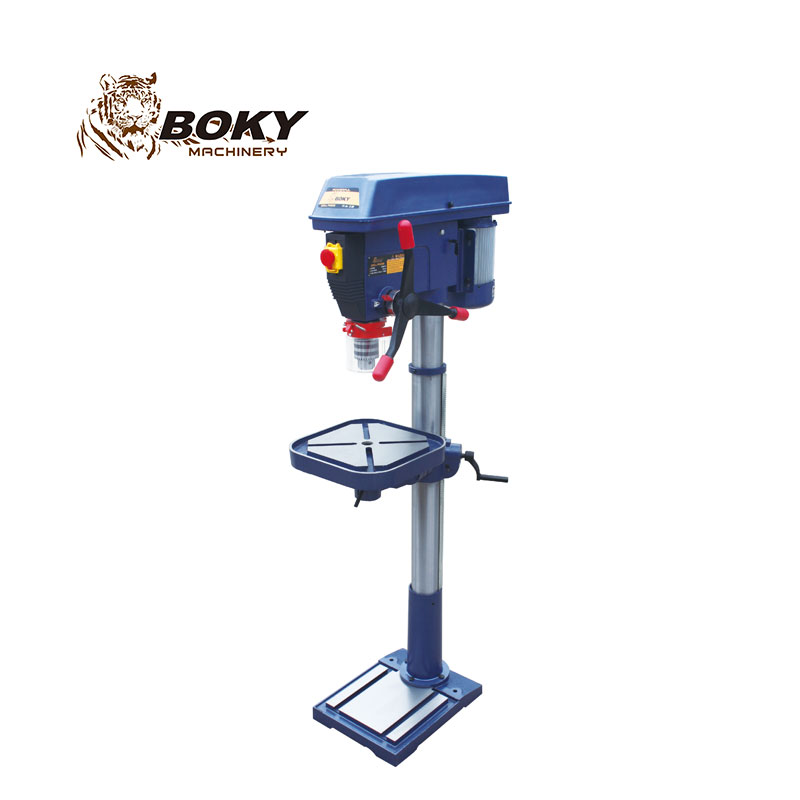

Drill Press
This drill press is designed for precision drilling in metal and wood. It features a powerful motor, variable speed control, and a sturdy cast iron base.
Technical Specifications
Overview
Industrial Precision Drill Press
This heavy-duty drill press is engineered for precision drilling in both metal and wood workpieces, making it a versatile staple for professional workshops. It features a powerful motor and variable speed control to accommodate different materials and bit sizes. The sturdy cast iron base ensures maximum stability, while the adjustable work table and integrated depth stop allow for highly accurate and repeatable drilling operations.
Key Performance Metrics
Key Capabilities
32 mm
Max Drilling Capacity
1,500 W
Peak Motor Power
16 steps
Speed Classes
120 mm
Max Spindle Travel
Model Comparison
Technical Specifications by Model
| Model | Drilling Cap. | Motor Power | Spindle Taper | Table Size |
|---|---|---|---|---|
| ZJ4120F | 20mm | 750W | MT#2 | 290x290mm |
| ZJQ5125 | 25mm | 750W/900W | MT#3 | 290x290mm |
| ZJ5125 | 25mm | 1100W/1500W | MT#3 | 350x350mm |
| ZJQ5132 | 32mm | 1100W/1500W | MT#4 | 360x360mm |
| ZJ5132 | 32mm | 1100W/1500W | MT#4 | 420x480mm |
Physical Construction
Construction Features
- Sturdy cast iron base for stability
- Adjustable work table
- Integrated depth stop for accuracy
- High-rigidity column design
- Variable speed control system
Logistics & Dimensions
- Column Diameter
- 72mm - 92mm
- Total Height
- 1600mm - 1710mm
- 20' Container Capacity
- 86 - 180 units
