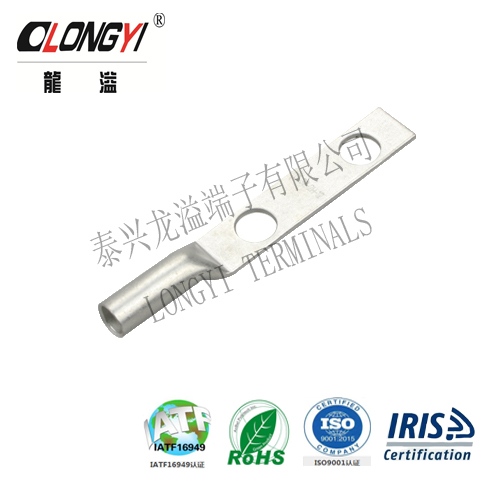

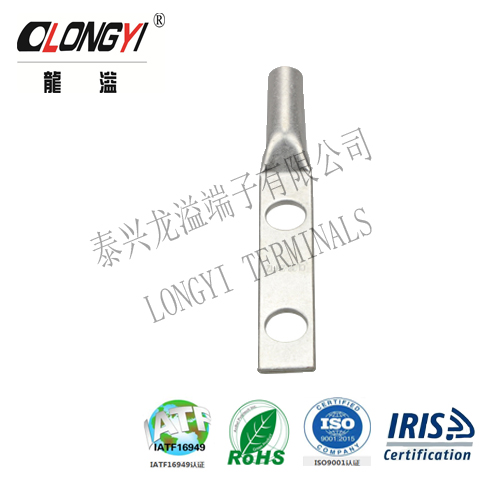

Double-Hole Copper Tube Terminal Lug
These double-hole tube terminal lugs are designed for connecting copper conductors to power cables and electronic equipment. They are made from 99.99% pure copper tube T2 and feature a tin coating for enhanced conductivity and corrosion resistance.
Technical Specifications
Product Overview
CL Double-Hole Tube Terminal Lugs
These CL-TYPE 2-hole cable lugs are engineered for the reliable connection of copper conductors in power cabling and electronic equipment. Manufactured from high-purity 99.99% T2 copper tubing and finished with a protective tin coating, they offer superior conductivity and corrosion resistance. Designed to withstand demanding environments, they operate effectively within a temperature range of -55°C to 150°C.
Technical Specifications
Operating Temperature
-55 °C
Min Temperature
150 °C
Max Temperature
- Material
- 99.99% Pure T2 Copper
- Finish
- Tin Coated
- Conductor Section Range
- 14-500 mm²
- Compliance & Standards
- RoHSISO 9001:2015IATF 16949IRIS
Dimensional Data
Standard Dimensions
| Item No. | φE | OD | ID | D | B | L |
|---|---|---|---|---|---|---|
| CL14-2H-6 | 6.4 | 8.8 | 5.8 | 13 | 28.5 | 117.5 |
| CL22-2H-8 | 8.4 | 11.3 | 7.7 | 16 | 28.5 | 119.2 |
| CL38-2H-10 | 10.5 | 12.4 | 9.8 | 18.3 | 31.7 | 120 |
| CL60-2H-10 | 10.5 | 14 | 11 | 20.5 | 40 | 130 |
| CL100-2H-12 | 13 | 18 | 14 | 26 | 42 | 132 |
| CL200-2H-12 | 13 | 26 | 20 | 36 | 50 | 150 |
| CL500-2H-12 | 13 | 40 | 31 | 56 | 60 | 180 |
