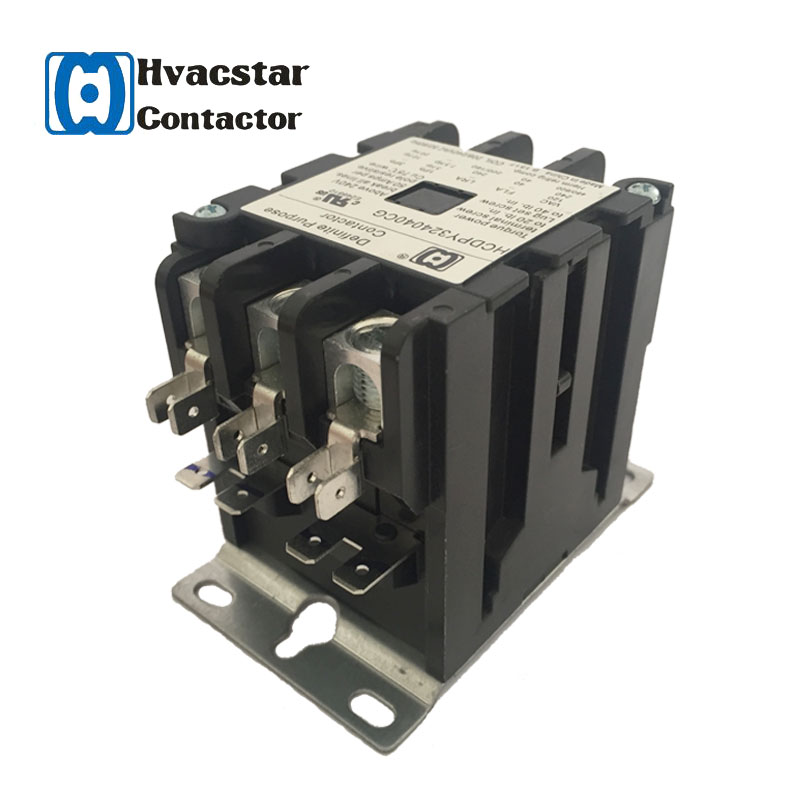

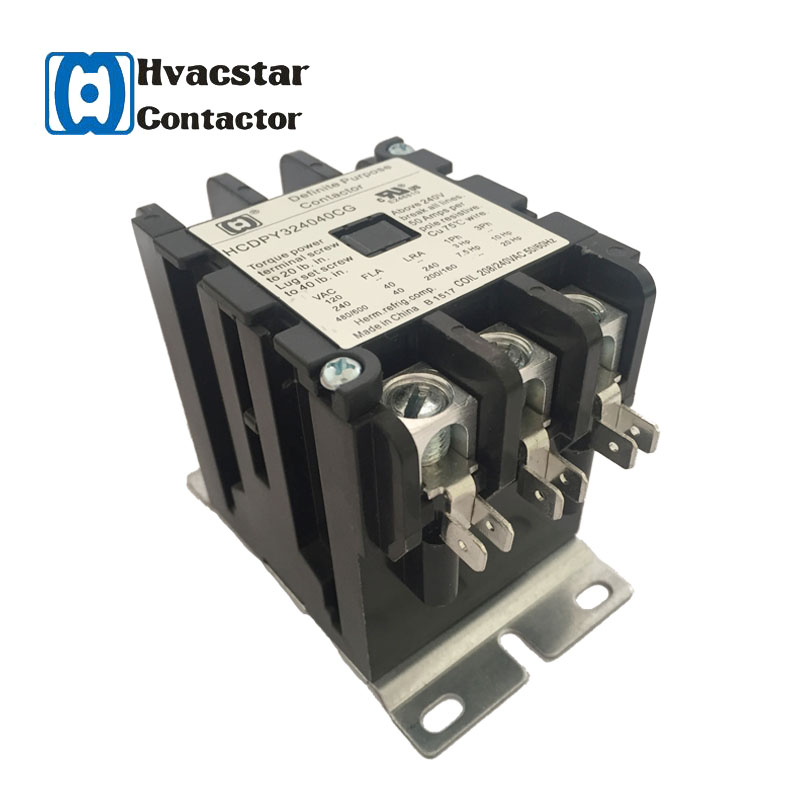

Definite Purpose AC Contactor
This AC contactor is designed for definite purpose applications such as HVAC and refrigeration. It is used for controlling motors and compressors in various industrial and commercial systems.
Technical Specifications
Overview
Definite Purpose AC Contactor
This high-performance definite purpose AC contactor is engineered for reliable control in HVAC and refrigeration applications. Designed to handle demanding electrical loads, it supports various mounting configurations and offers flexible cycle life options to meet specific operational requirements. Built to international safety standards, this component ensures robust performance for compressors, motors, and other industrial control equipment.
Electrical Ratings
Locked Rotor Amps (LRA)
240 A
240V
200 A
480V
160 A
600V
- Full Load Amps (FLA)
- 40 A
- Resistive Amps
- 50 A
- Coil Voltage
- 240V
- Frequency
- 50/60 Hz
Mechanical & Configuration
- Poles
- 3
- Mounting Base
- NEMA
- Connection Options
- ScrewBoxPressure Plate
Performance & Safety
Horsepower Ratings
| Phase | Voltage | Rating |
|---|---|---|
| 1 Phase | 120V | 3 HP |
| 1 Phase | 240V | 7.5 HP |
| 3 Phase | 240V | 10 HP |
| 3 Phase | 480/600V | 20 HP |
Certifications & Standards
CEULCSAEN 60947-4-1
- Short Circuit Rating
- 5,000A @ 277V, 480V, 600V
- Max Operating Temperature
- 40 °C
