Product Overview

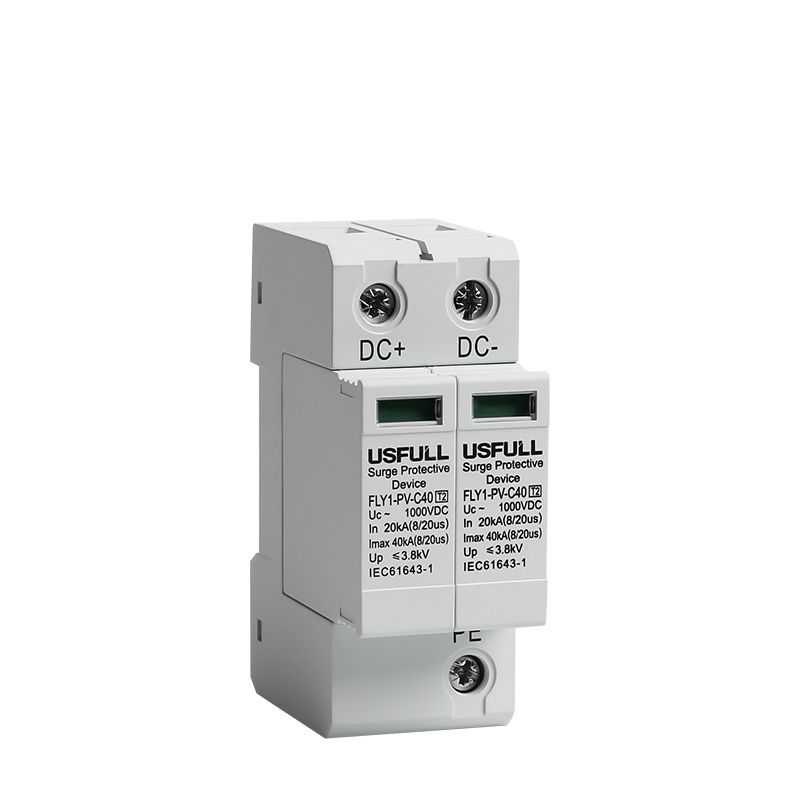

Professional DC Surge Protection
This Surge Protective Device (SPD) is specifically engineered to safeguard photovoltaic (PV) DC systems against transient overvoltages and lightning impacts. By providing a rapid response to shunt peak electrical currents, it effectively prevents damage to sensitive electronic equipment and communication lines. Its robust design is optimized for high-performance industrial and residential solar power applications, ensuring system longevity and operational reliability.
Technical Specifications
Performance Metrics
1,000 VDC
Max Continuous Operating Voltage (Uc)
20 kA
Nominal Discharge Current (In)
40 kA
Max Discharge Current (Imax)
3.8 kV
Voltage Protection Level (Up)
Protection Type
T2DC Application
- Certifications & Standards
- IEC61643-1
Installation & Use

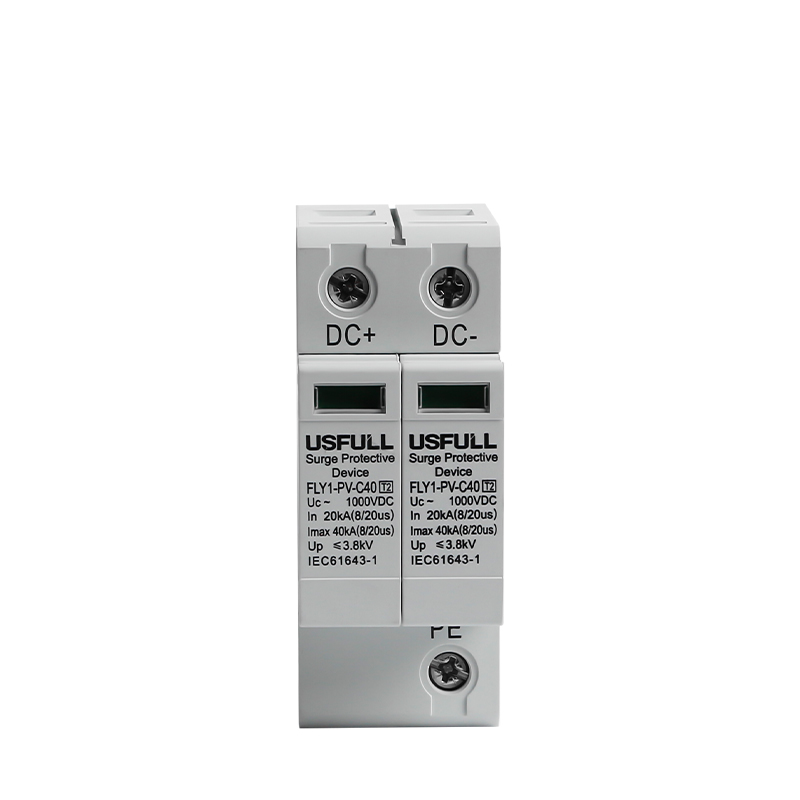

Terminal Configuration
- DC+
- DC-
- PE
