Technical Specifications
Product Overview
Reliable Reversing Safety

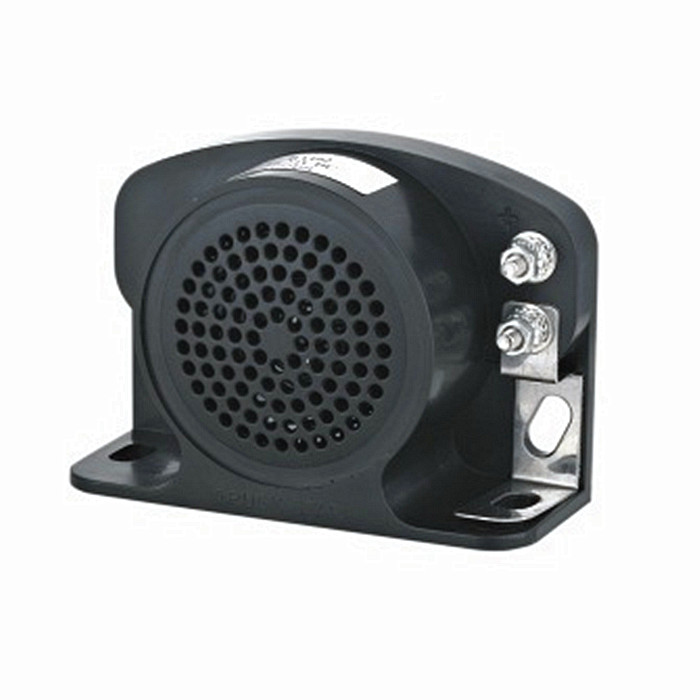

This high-quality DC 10-80V reversing alarm is designed to enhance safety during vehicle maneuvers. It features a robust, epoxy-encapsulated housing that is fully weather-proof and pressure washable, ensuring long-lasting performance in demanding environments. With multiple sound level options and wide voltage compatibility, it serves as a versatile safety solution for a variety of automotive applications.
Electrical & Performance
Key Performance Metrics
80 V
Max Voltage
10 V
Min Voltage
107 dB
Max Sound Level
Available Sound Levels
- 87
- 97
- 102
- 107
- Protection Features
- Reverse Polarity ProtectedWeather ProofPressure WashableEpoxy Encapsulated
Physical Specifications

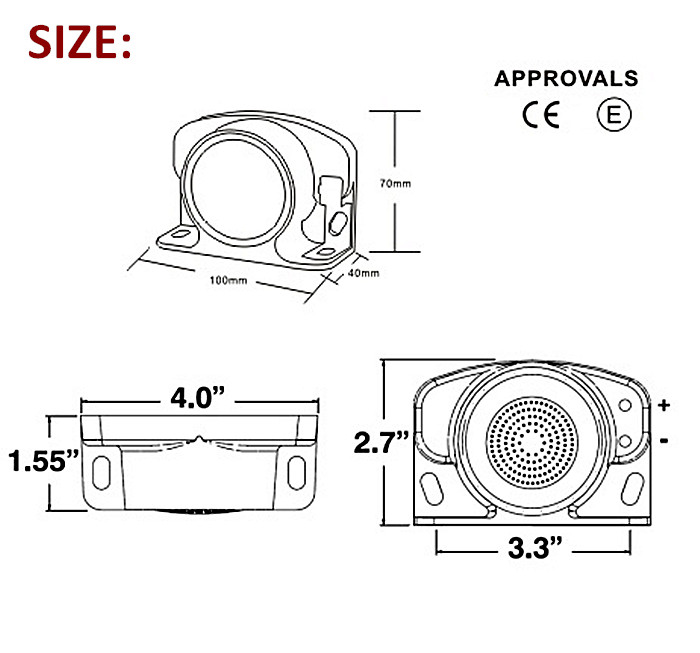

Physical Dimensions
| Dimension | Value |
|---|---|
| Length | 100 mm |
| Width | 40 mm |
| Height | 70 mm |
- Operating Temperature
- -30°C to 77°C
Compliance & Warranty
Certifications
CERoHSREACH
- Warranty Period
- 12 Months
