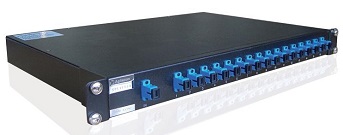

CWDM Mux/Demux Module - 2/4/8/16 Channel
This CWDM Mux/Demux module is a passive optical device for multiplexing or demultiplexing multiple CWDM channels. It is available in 2, 4, 8, or 16 channel configurations.
Technical Specifications
Overview
High-Performance CWDM Multiplexing
This CWDM Mux/Demux module is a passive optical device designed to increase bandwidth capacity over existing fiber infrastructure by multiplexing or demultiplexing up to 16 channels. It features low insertion loss, high channel isolation, and excellent thermal stability, making it ideal for telecommunications and data center applications. The compact design ensures easy integration into various network environments while maintaining high reliability across a wide operating temperature range.
Key Performance Metrics
Key Performance Metrics
20 nm
Channel Spacing
500 mw
Max Optical Power
45 dB
Return Loss
Technical Specifications
Optical Performance by Configuration
| Configuration | Insertion Loss (P/A Grade) | Ripple |
|---|---|---|
| 1x2 Channel | 0.7/1.0 dB | 0.3 dB |
| 1x4 Channel | 1.4/1.7 dB | 0.4 dB |
| 1x8 Channel | 2.0/2.5 dB | 0.5 dB |
| 1x16 Channel | 3.5/4.0 dB | 0.5 dB |
- Operating Wavelength
- 1260nm to 1620nm
- Fiber Type
- SMF-28e or customer specified
- Adjacent Channel Isolation
- 30 dB
- Non-Adjacent Channel Isolation
- 50 dB
Features
Product Features
- Low Insertion Loss
- High Isolation
- Low PDL (0.2 dB)
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
Applications
- Primary Applications
- CWDM SystemPON NetworksCATV LinksData CentersEnterprise Networks
Compliance & Environment
Compliance Standards
RoHSTelcordia GR-1209-CORE-2001Telcordia GR-1221-CORE-1999
- Operating Temperature
- -40°C to +85°C
