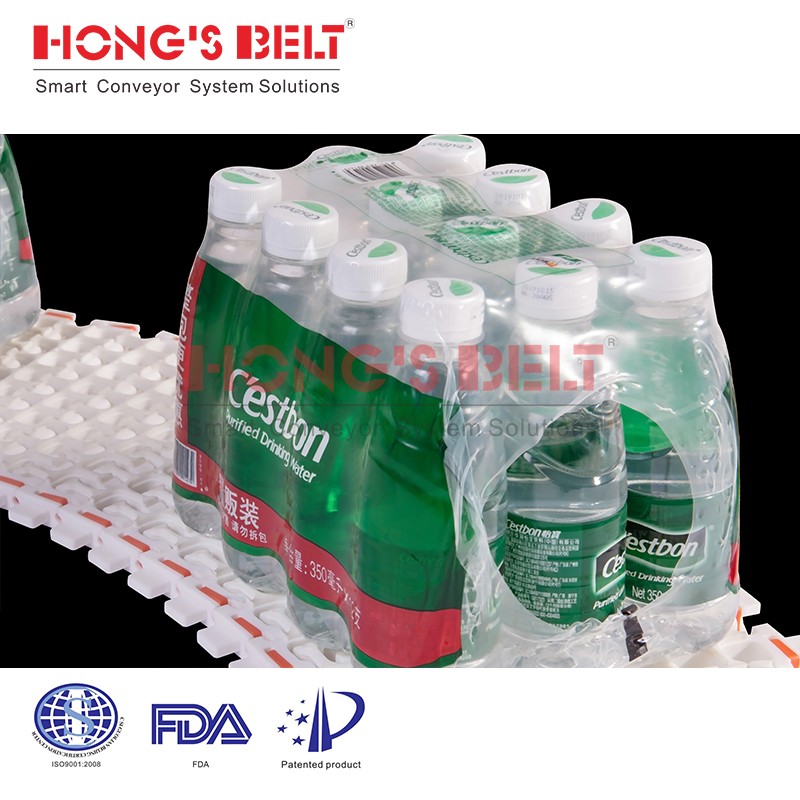

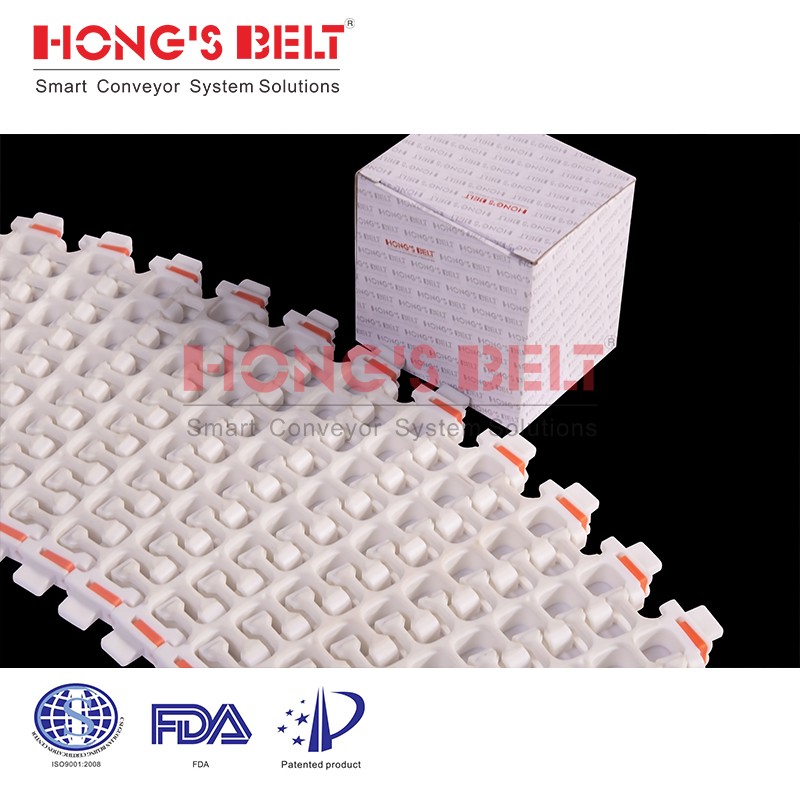

Curved Modular Plastic Conveyor Belt
This curved modular plastic conveyor belt is designed for inclined conveyor systems. Its modular design allows for easy assembly and maintenance.
Technical Specifications
Overview
High-Performance Modular Conveyor Belt
This curved modular plastic conveyor belt is engineered for demanding industrial environments, particularly for inclined conveying applications. Its robust design offers significant advantages, including a maximum load capacity of 1.2 tons per square meter and a service life ten times longer than traditional belts. With food-grade material options and easy-clean features, it ensures reliability and hygiene across diverse sectors from food processing to automotive manufacturing.
Technical Specifications
Dimensions
45 mm
Pitch
18 mm
Thickness
5.8 mm
Rod Diameter
242 mm
Minimum Width
Performance Metrics
| Feature | Specification |
|---|---|
| Open Area | 52% |
| Max Load Capacity | 1.2 tons/m² |
| Temperature Range | -40°C to 260°C |
| Curved Capability | Yes |
Available Colors
WhiteBlueGrayNatureDark-brown
- Materials & Compliance
- PPPOMPEPAFDA ApprovedEU Approved
Configuration
Sprocket Configuration
- Sprocket Sizes: 8T, 12T
- Bore Types: Square bore, Round bore
Industry Applications
- Food Industry Applications
- MeatPoultrySea FoodBakerySnack FoodFruit & Vegetables
- Non-Food Industry Applications
- AutomotiveTire ManufacturingPackagingPrinting/PaperPostalCorrugated CardboardCan ManufacturingPET ManufacturingTextile
