Curved Edge Banding Machine
This machine automatically applies edge banding to curved or irregularly shaped workpieces. It ensures a clean and efficient finish for curved edges using various edge banding materials.
Technical Specifications
Overview

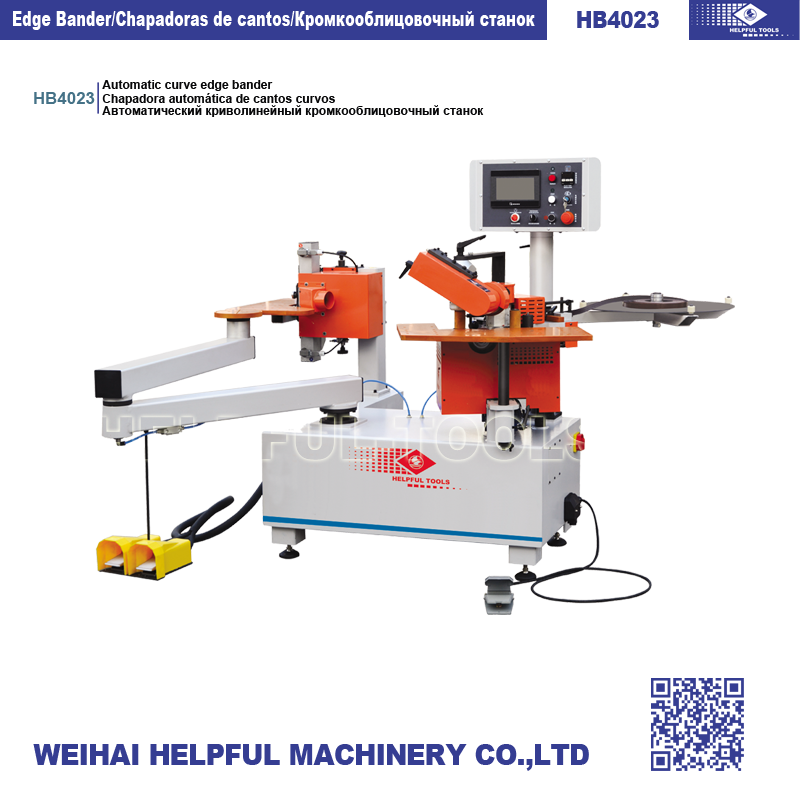

Professional Automatic Curve Edge Bander
The HB4023 is a specialized automatic edge banding machine engineered for precision finishing on curved and irregularly shaped workpieces. Designed for high-efficiency woodworking, it combines robust construction with advanced control mechanisms to ensure clean, professional results on various edge materials. This machine is ideal for furniture manufacturers looking to automate the complex process of curved panel finishing while maintaining superior adhesion and quality.
Technical Performance
Performance Metrics
3 m/min
Min Feeding Speed
7 m/min
Max Feeding Speed
2.95 kW
Total Power
0.6 MPa
Air Pressure
Workpiece Specifications
Panel Capacities
| Parameter | Specification |
|---|---|
| Edge Belt Thickness | 1 - 3 mm |
| Panel Thickness Range | 10 - 60 mm |
| Minimum Panel Size | 50 x 200 mm |
| Maximum Panel Size | 1000 x 2000 mm |
| Maximum Panel Weight | 40 kg |

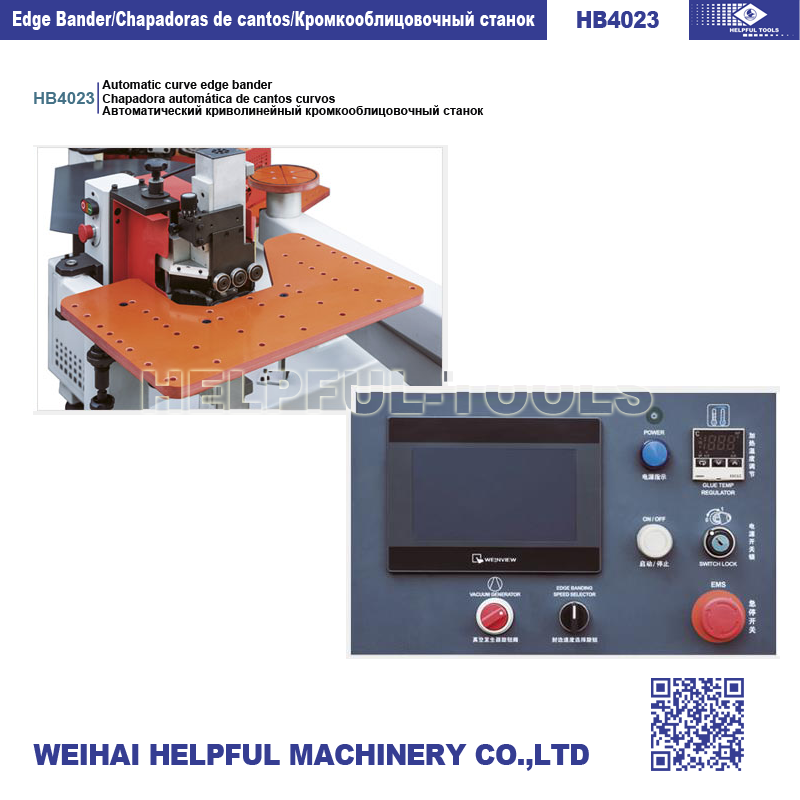

Control & Safety
Control Features
- Digital glue temperature regulator for precise adhesion
- Adjustable edge banding speed selector
- Vacuum generator for secure workpiece holding
- Emergency Stop Switch (EMS) for operator safety
- Switch lock mechanism
- Integrated power indicator and start/stop controls
Physical Characteristics
- Machine Dimensions
- 2275 x 1620 x 1580 mm
- Net Weight
- 480 kg

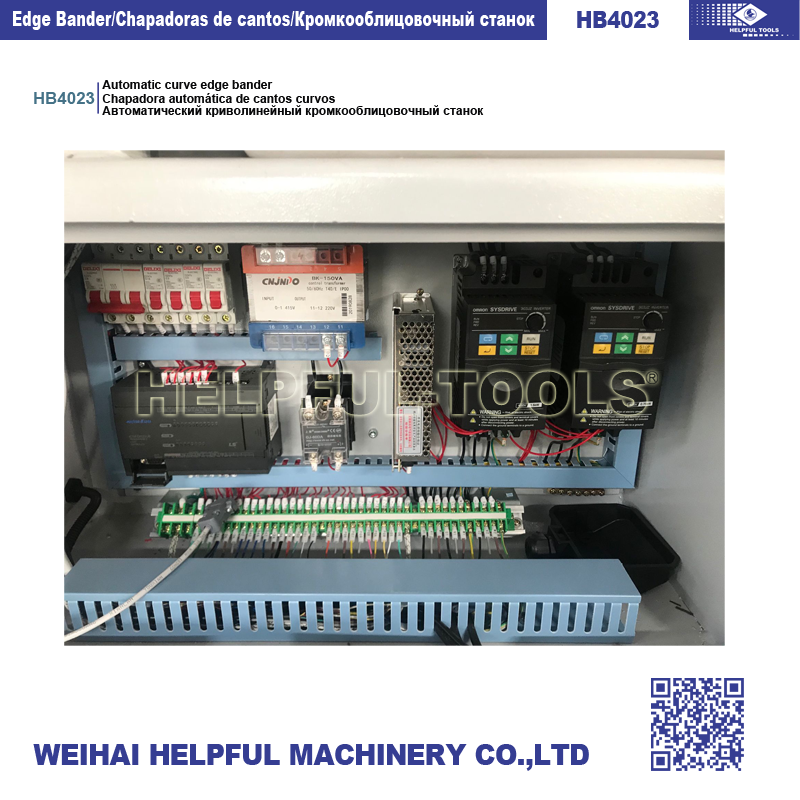

Technical Components
- Internal Components
- BK-150VA TransformerOMRON SYSDRIVE InvertersCircuit BreakersTerminal Block Wiring
