Corrugated Finned Tank Production Line
This production line is designed for efficient and precise manufacturing of corrugated finned tanks. It integrates material feeding, forming, welding, and cutting to produce high-quality tanks of various sizes.
Technical Specifications
Overview
Automated Corrugated Finned Tank Production

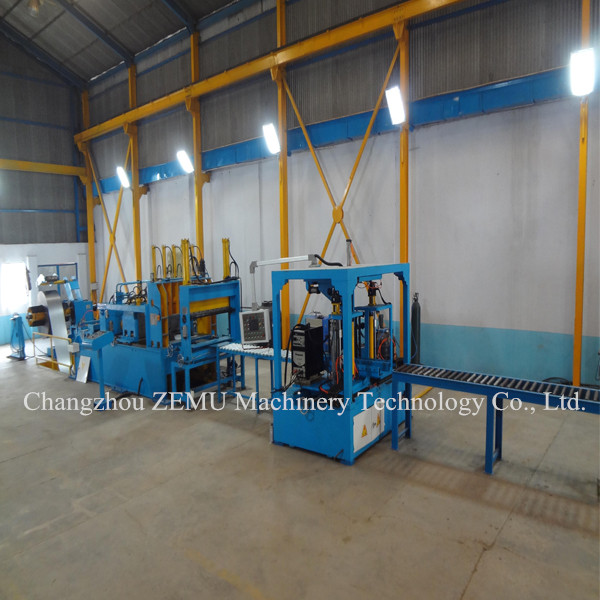

The BW1300A is a fully automated production line engineered specifically for the efficient manufacturing of corrugated finned tanks. By integrating material feeding, forming, shearing, edge folding, and welding into a single streamlined process, it significantly reduces manual labor requirements to just 1-2 operators. The system features advanced PLC control and a user-friendly touch screen interface, ensuring high-speed, consistent output with clean, precise welding results.
Technical Specifications
- Plate Width
- 300 mm
- Plate Thickness
- 0.5 - 1.75 mm
- Corrugation Height
- 50 - 400 mm
- Corrugation Pitch
- >= 45 mm
Performance Metrics
Forming Speed
3 fins/min
Min Fins per Minute
4 fins/min
Max Fins per Minute
System Components
Included Components
- Hydraulic Automatic Decoiler Machine
- Transformer Tank Fin Forming Machine
- Hydraulic Transformer Tank Fin Shearing and Hemming Machine
- Automatic Transformer Tank Fin Welding Machine
- Hydraulic Station
- PLC Control System
Features
Product Highlights
Fully AutomaticPLC ControlTouch Screen InterfaceArgon Arc WeldingHigh-Speed OperationLabor Saving
