Copper Wire Tube Terminal Lugs
These copper wire tube terminal lugs connect copper conductors in power cables to electronic equipment. They are made from 99.99% pure copper tube and coated with tin for optimal performance.
Technical Specifications
Product Overview

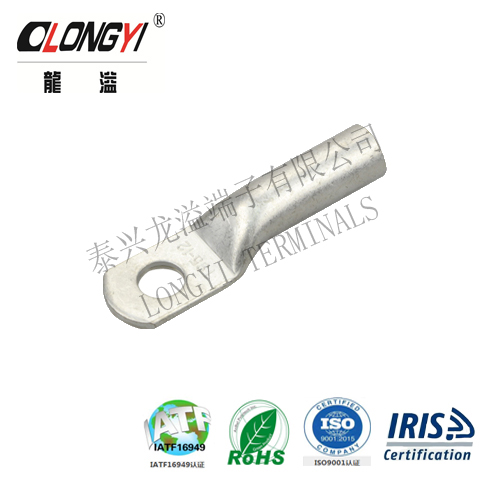

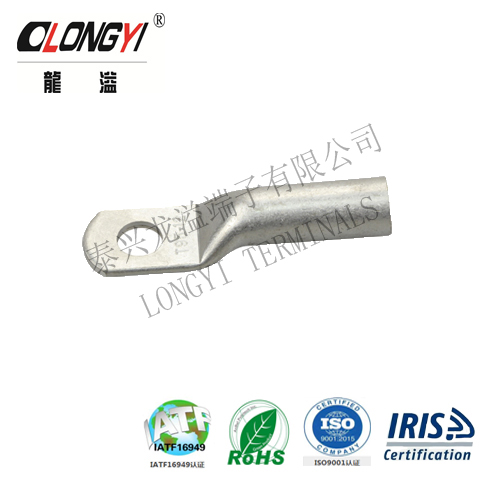

TL Lengthened Tube Terminals
These TL series lengthened tube terminals are engineered for reliable electrical connections of copper conductors ranging from 10mm² to 500mm². Manufactured from high-purity T2 copper (99.99%) and tin-coated for superior conductivity and corrosion resistance, they are built to withstand temperatures between -55°C and 150°C. Their robust, long-barrel design facilitates secure crimping, making them ideal for heavy-duty applications in power distribution, industrial cabinets, renewable energy systems, and transportation infrastructure.
Material & Compliance
Certifications & Standards
ISO 9001:2008RoHS CompliantCE CertifiedUL Certified
Operating Temperature
-55 °C
Min Temp
150 °C
Max Temp
- Material Specifications
- 99.99% Pure T2 CopperTin-coated finish
Dimensions & Models
Technical Dimensions
| Item No. | φE | OD | ID | L |
|---|---|---|---|---|
| TL10-6 | 6.4 | 6.9 | 4.7 | 35 |
| TL16-6 | 6.4 | 7.8 | 5.6 | 39 |
| TL25-8 | 8.3 | 9.5 | 7.1 | 50 |
| TL50-10 | 10.5 | 12.5 | 9.5 | 64 |
| TL95-14 | 14.5 | 17 | 13.5 | 88 |
| TL150-16 | 16.5 | 21 | 16.5 | 102 |
| TL240-16 | 16.5 | 26.4 | 21.2 | 119 |
| TL500-16 | 16.5 | 38.4 | 29.8 | 143 |
