Product Overview

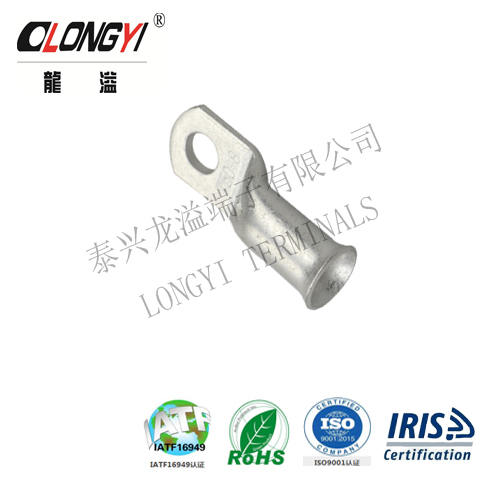

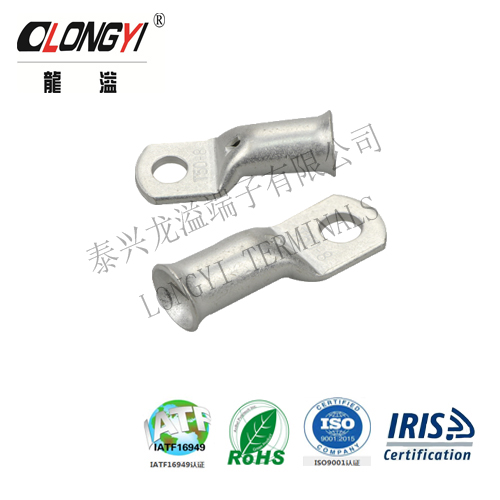

Professional Grade Copper Tube Terminals
These bell-mouth cable lugs are engineered for secure copper conductor connections ranging from 10mm² to 400mm². Manufactured from high-purity 99.99% T2 copper tubing and finished with a protective tin coating, they offer superior electrical conductivity and corrosion resistance. Designed to perform reliably in demanding environments, they are suitable for power cables, electrical cabinets, and renewable energy infrastructure.
Technical Specifications
Temperature Range
-55 °C
Min Operating Temp
150 °C
Max Operating Temp
Key Dimension Reference
| Item No. | ID (mm) | OD (mm) | Total Length (mm) |
|---|---|---|---|
| TT10-6 | 4.7 | 6.9 | 28 |
| TT16-6 | 5.6 | 7.8 | 33 |
| TT25-10 | 7.1 | 9.5 | 42 |
| TT50-12 | 9.5 | 12.5 | 51 |
| TT120-16 | 15.6 | 20 | 74 |
- Material
- 99.99% Pure T2 Copper Tube
- Coating
- Tin Plated
- Conductor Size
- 10-400mm²
Certifications
- Standards & Certifications
- ISO9001-2008ROHSCEUL
