Copper Cable Lug with Inspection Window
These copper cable lugs facilitate connection of copper cable to electrical equipment in low voltage applications. The lug features a viewing window for conductor location verification.
Technical Specifications
Product Overview
High-Conductivity Copper Cable Lugs
These copper cable lugs are engineered for secure and reliable electrical terminations in low-voltage power transmission and distribution systems. Manufactured from high-purity copper (Cu ≥ 99.9%) with a tin-plated finish, they provide exceptional conductivity and long-term corrosion resistance. Each lug features a distinct rectangular inspection window on the bevel, allowing installers to quickly verify the correct positioning of the conductor before crimping.
Material & Design
- Material
- Copper (Cu ≥ 99.9%)
- Surface Treatment
- Tin plated
- Inspection Window
- Yes

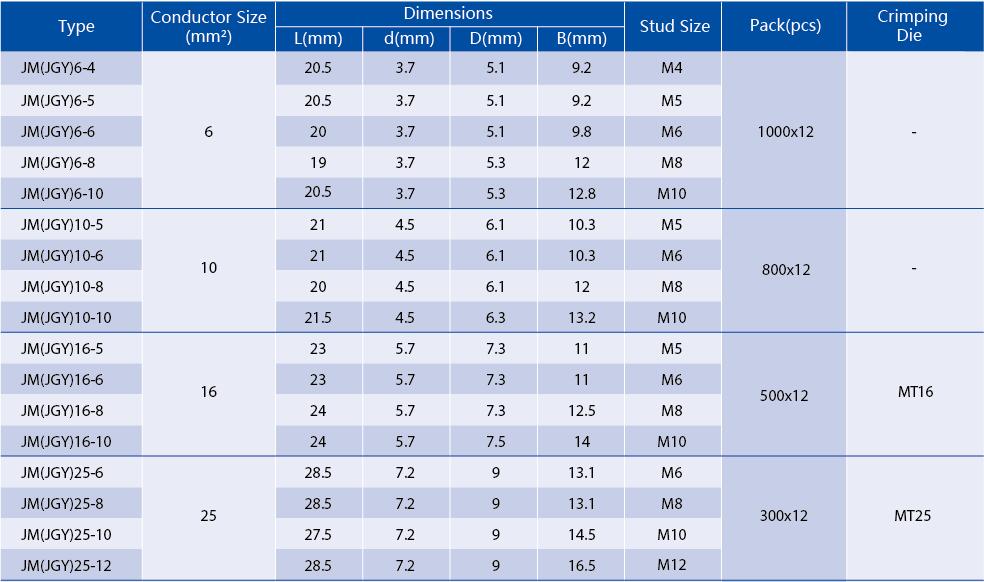

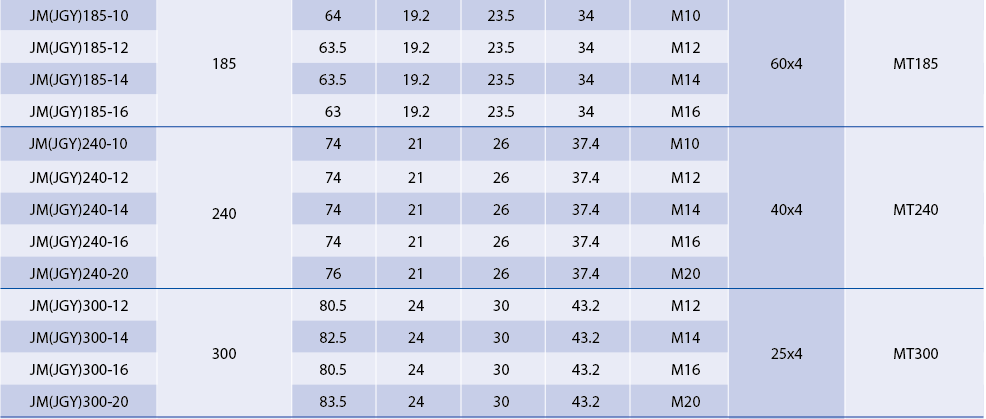

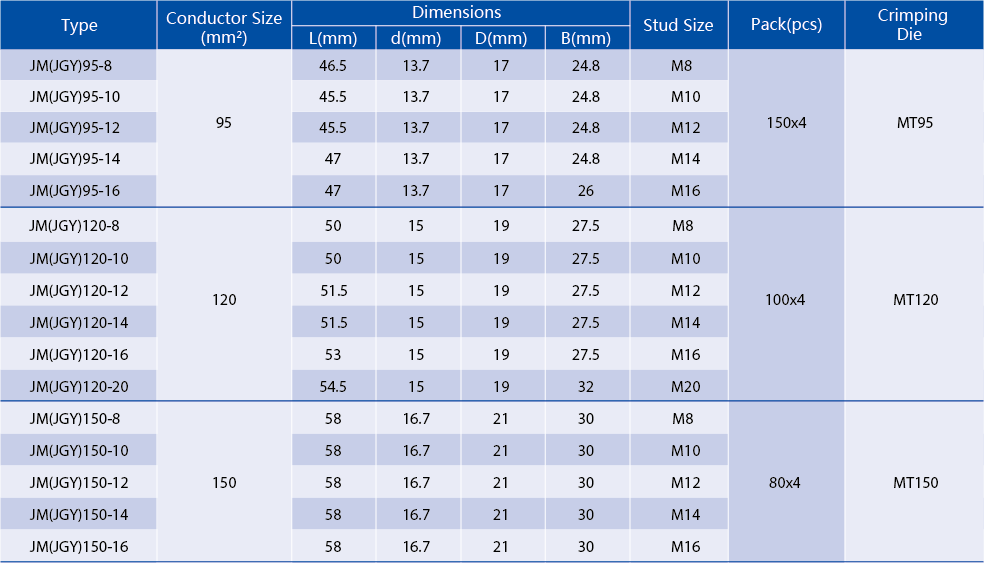

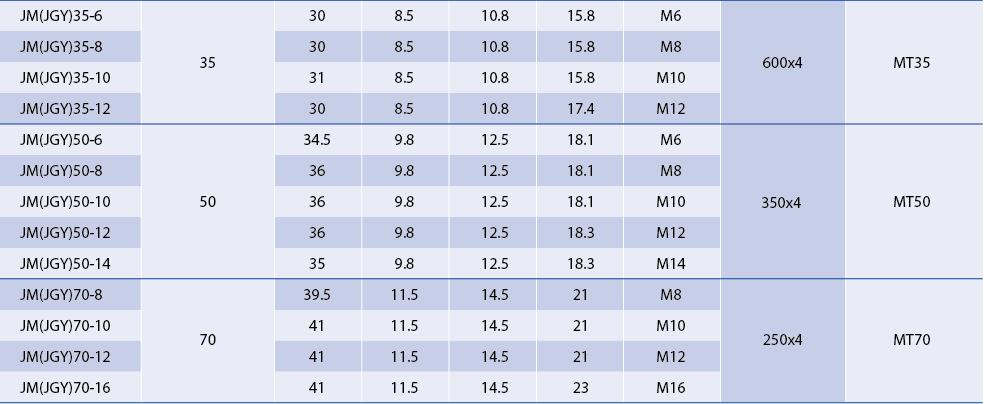

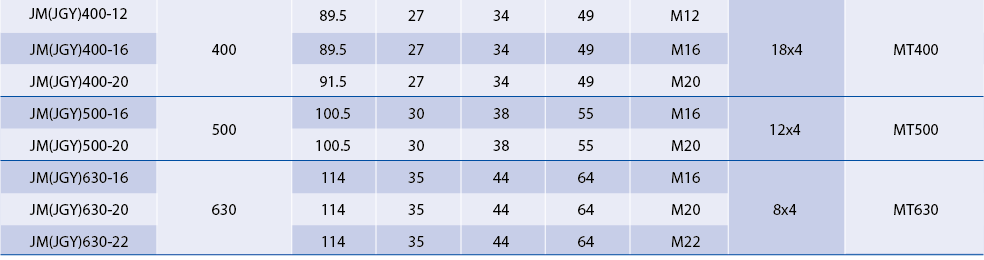

Technical Specifications
Bolt/Stud Sizes
M4M5M6M8M10M12M14M16M20M22
Installation Requirements
- Crimping required
- Soldering compatible
- Supported Conductor Sizes
- 6mm²10mm²16mm²25mm²35mm²50mm²70mm²95mm²120mm²150mm²185mm²240mm²300mm²400mm²500mm²630mm²
