Copper Cable Lug with Inspection Window
This copper cable lug is designed with a narrow palm, making it suitable for equipment with limited contact area. It features a viewing window for easy inspection of the conductor's position.
Technical Specifications
Product Overview
Professional Electrical Termination
The TM series cable lugs are designed for high-performance copper wire terminations in low-voltage electrical equipment. Featuring a unique rectangular viewing window on the bevel, installers can quickly verify the exact position of the conductor. Its narrow palm design makes it the ideal choice for applications where space is limited, such as connections within MCCBs and motor terminals.
Technical Specifications
Surface Treatment
Tin Plated
Primary Applications
- Low voltage power transmission
- Electrical equipment connections
- MCCB terminals
- Motor connections
- Material
- Copper (Cu ≥ 99.9%)
- Supported Conductor Sizes
- 10mm²16mm²25mm²35mm²50mm²70mm²95mm²120mm²150mm²185mm²
Dimensions and Compatibility

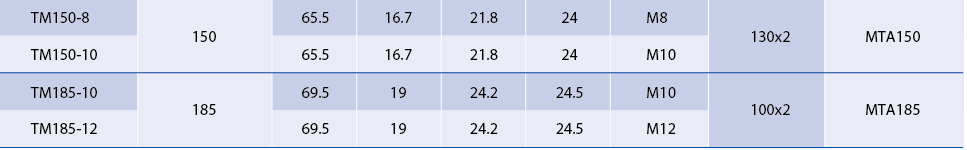

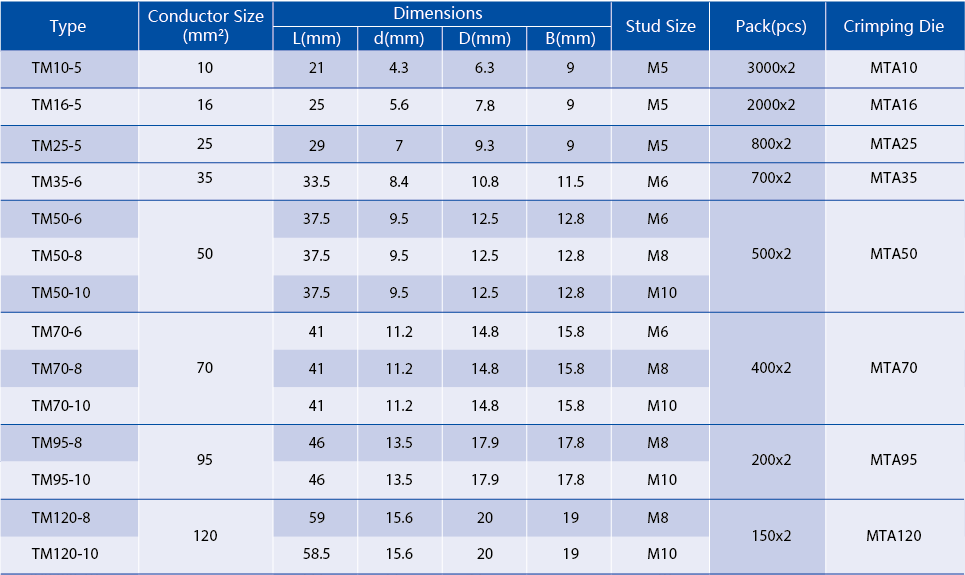

Model Specifications Reference
| Model | Size (mm²) | Stud | Crimping Die |
|---|---|---|---|
| TM10-5 | 10 | M5 | MTA10 |
| TM25-5 | 25 | M5 | MTA25 |
| TM50-8 | 50 | M8 | MTA50 |
| TM95-10 | 95 | M10 | MTA95 |
| TM120-10 | 120 | M10 | MTA120 |
