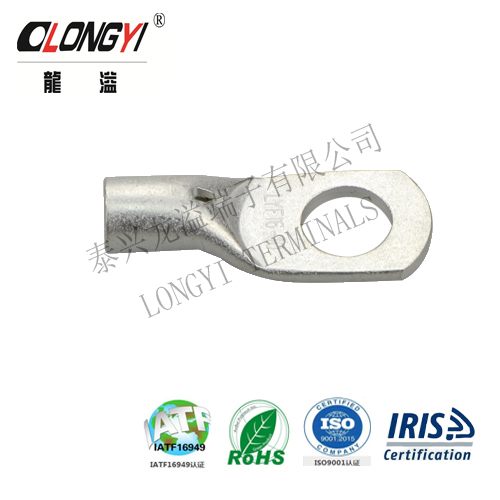

Copper Cable Lug Terminal
These cable lugs are suitable for connecting copper conductors in power cables with electronic equipment. They are constructed from 99.99% pure copper tube and coated with tin.
Technical Specifications
Product Overview
High-Performance Copper Cable Lugs
These cable lugs are engineered for secure and reliable electrical connections, utilizing 99.99% pure T2 copper tube construction. Each terminal is tin-coated to provide superior corrosion resistance and optimal electrical conductivity in demanding environments. Designed to accommodate conductor cross-sections from 10mm² to 630mm², they offer a versatile solution for power cable termination in electronic equipment.
Technical Specifications
- Material
- 99.99% Pure Copper (T2)
- Surface Coating
- Tin-plated
- Operating Temperature
- -55°C to 150°C
- Conductor Range
- 10 - 630 mm²
Certifications
- Compliance & Certifications
- RoHSISO 9001:2015IATF 16949
Dimensions
Standard Dimensions
| Item No | φE | OD | ID | L |
|---|---|---|---|---|
| LYF10-5 | 5.3 | 8 | 5 | 28 |
| LYF16-6 | 6.5 | 9 | 6 | 33 |
| LYF25-8 | 8.4 | 11 | 8 | 38 |
| LYF50-10 | 10.5 | 14.5 | 11 | 50 |
| LYF95-12 | 13 | 20 | 15 | 69 |
| LYF150-16 | 17 | 25 | 19 | 80 |
| LYF300-20 | 21 | 32 | 26 | 114 |
