Copper Cable Lug Terminal
Copper cable lug terminals are used for connecting copper cables to electrical equipment in low-voltage applications. They feature a viewing window and bell mouth for easy cable installation and conductor location checking.
Technical Specifications
Product Overview
Professional Grade Cable Lugs
These high-conductivity copper cable lugs are engineered for secure and reliable low-voltage electrical terminations. Featuring a pure copper construction (Cu ≥ 99.9%) with a durable tin-plated finish, they offer excellent corrosion resistance and electrical performance. The design includes a convenient rectangular viewing window for accurate conductor positioning and a bell-mouth barrel to facilitate smooth, efficient cable installation.
Material & Construction
- Material
- Copper (Cu ≥ 99.9%)
- Surface Finish
- Tin-plated
- Key Features
- Viewing WindowBell-mouth BarrelLow Voltage Compatible

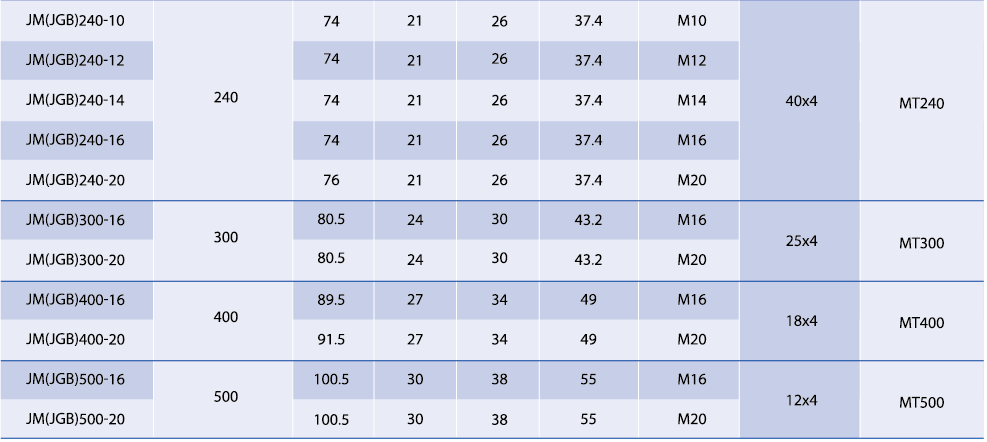

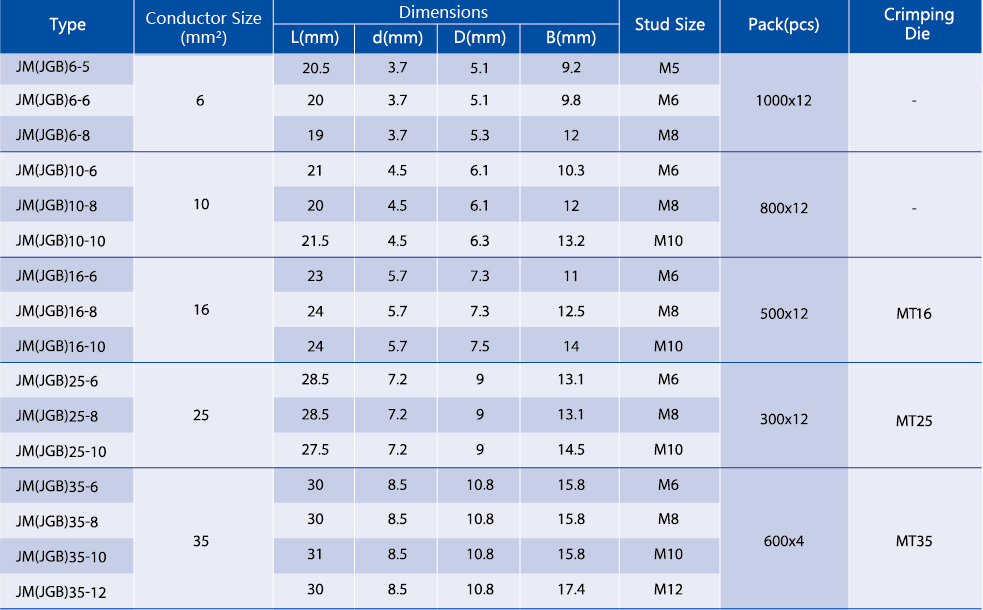

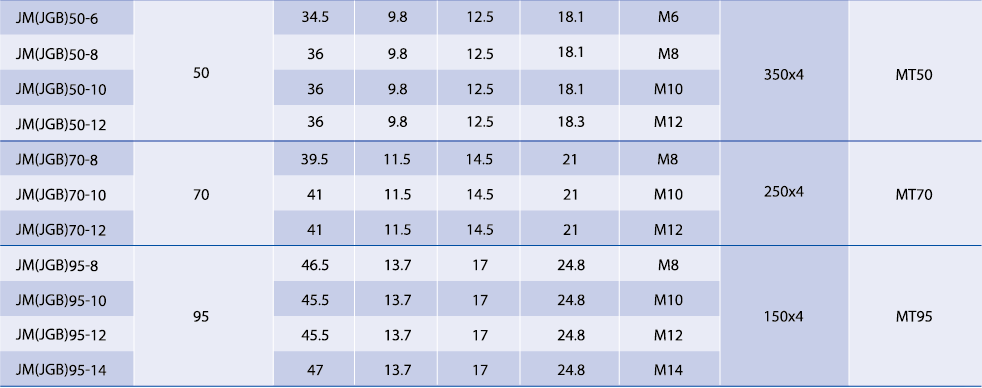

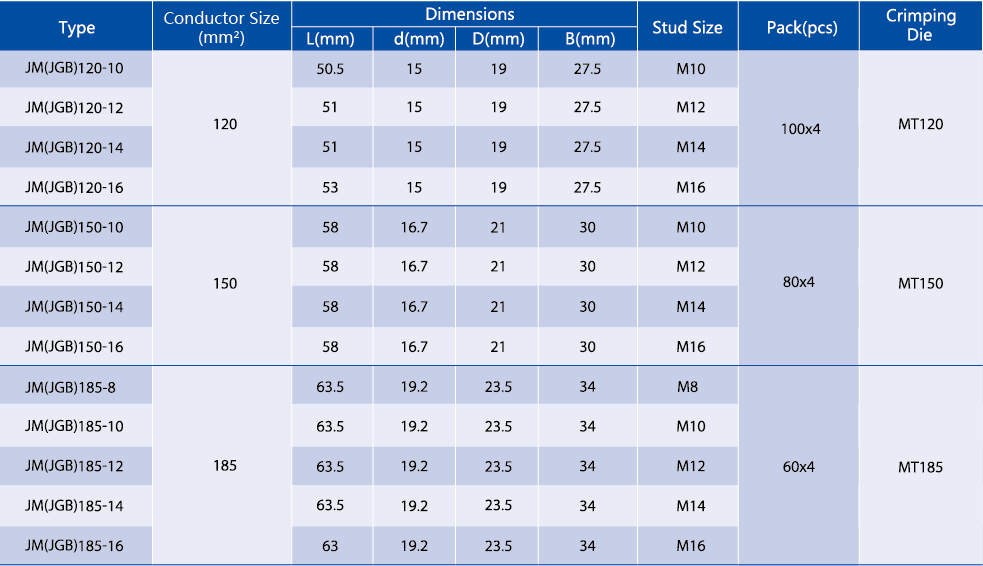

Technical Specifications
Crimping Die Series
- MT16
- MT25
- MT35
- MT50
- MT70
- MT95
- MT120
- MT150
- MT185
- MT240
- MT300
- MT400
- MT500
- Conductor Size Range
- 6mm² - 500mm²
- Stud Size Compatibility
- M5M6M8M10M12M14M16M20
