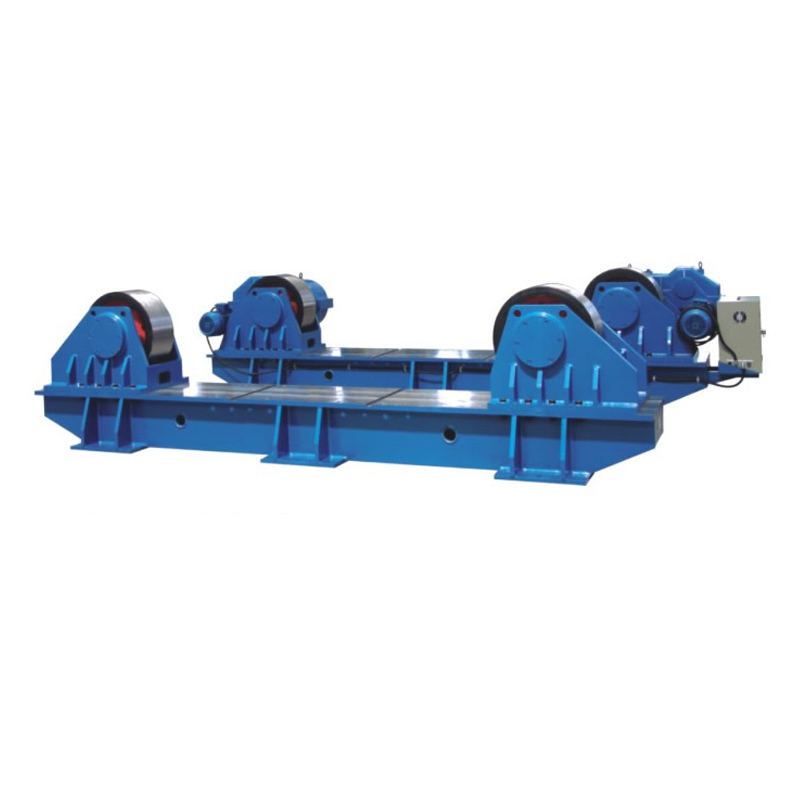

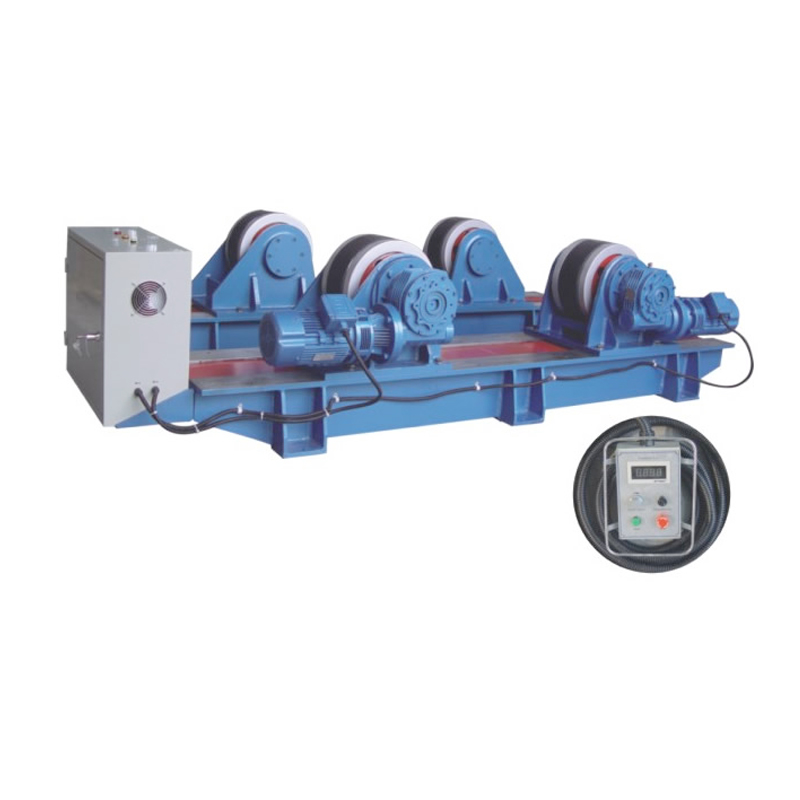

Conventional Welding Rotator with Adjustable Center Distance
This conventional welding rotator includes a powered unit and an idler unit. It adjusts the center distance to suit different workpiece diameters, meeting customer welding requirements.
Technical Specifications
Overview
Conventional Welding Rotator
This conventional welding rotator is engineered to support and rotate cylindrical workpieces during welding operations, ensuring consistent and high-quality results. The system features adjustable roller spacing to accommodate various workpiece diameters and a robust, annealed frame for long-term durability and stability. Designed for smooth, jitter-free rotation, it provides precise speed control through a frequency stepless adjustment system, making it an ideal solution for manufacturing pipes, tanks, and other cylindrical components.
Technical Specifications
Maximum Load Capacity
40 T
Max Load
- Suitable Workpiece Range
- ф600 - ф4200 mm
- Roll Linear Speed
- 60 m/h
- Speed Adjustment Mode
- Frequency stepless speed adjust
- Motor Power
- 2 * 1.5 KW
Roller Details
Roller Specifications
| Type | Dimensions |
|---|---|
| Rubber Roller | ф400 x 120 mm |
| Metal Roller | 2 x ф390 x 40 mm |
Construction & Quality
- Key Features
- Annealed Structural PartsAdjustable Center DistanceHigh Bearing CapacitySmooth RotationJitter-free Operation
