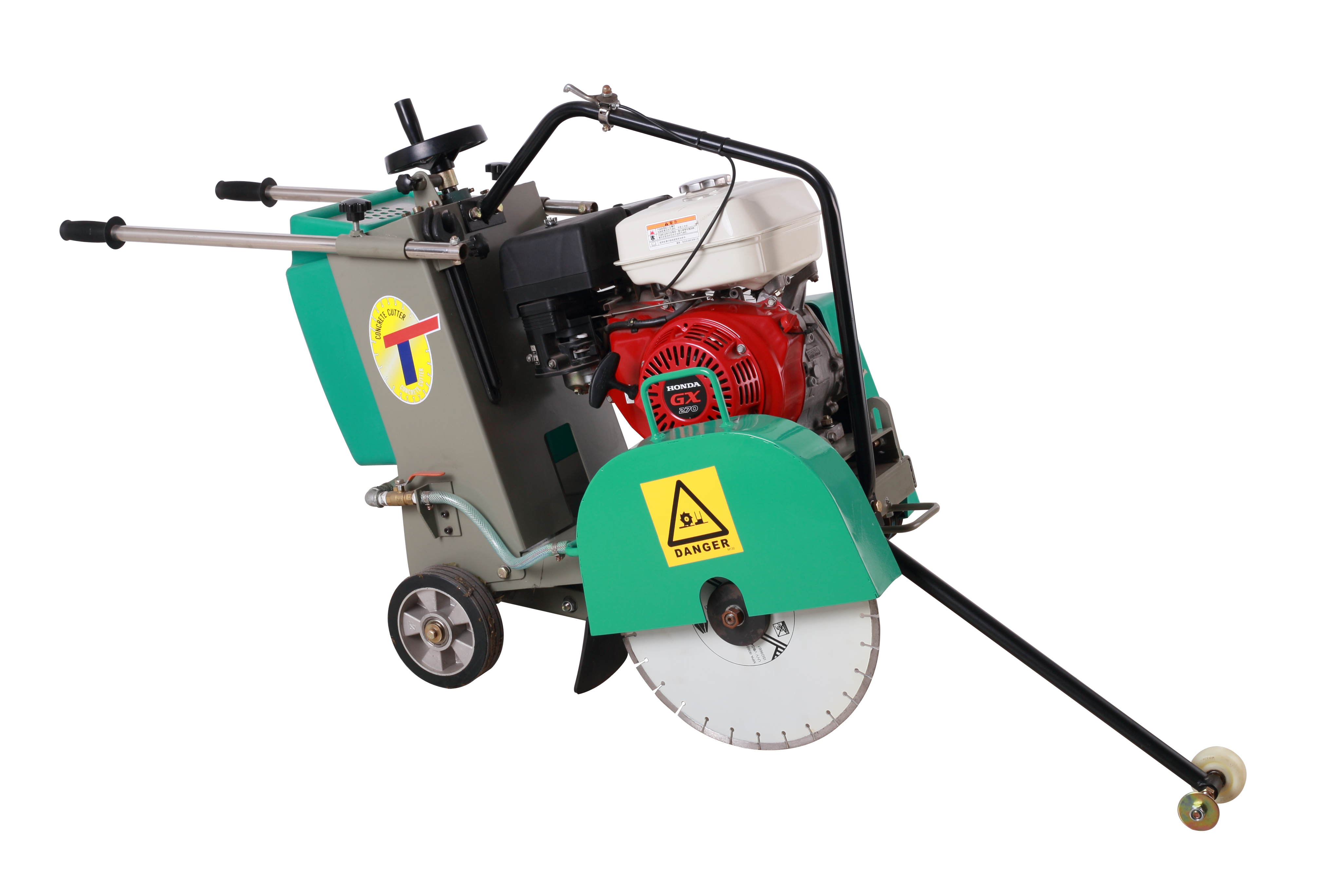

Concrete and Asphalt Cutter
This concrete cutter is designed for precise cutting of concrete and asphalt surfaces. It features a durable frame, adjustable cutting depth, and a water cooling system to minimize dust and extend blade life.
Technical Specifications
Product Overview
Versatile Cutting Performance
This professional-grade cutter is engineered for precision work on concrete, asphalt, stone, and cement pavements. Designed for durability and ease of use, it features an ergonomic adjustable handle and a reliable water cooling system to extend blade life and minimize dust. The robust frame and high-performance engine options ensure straight, clean cuts even when encountering embedded steel bars.
Technical Specifications
Cutting Capabilities
14 cm
Max Cutting Depth
40 cm
Max Blade Size
Performance Range
| Metric | Range |
|---|---|
| Power Output | 3.7 - 10.3 kW |
| Operating Mass | 83 - 127 kg |
| Water Tank Capacity | 12 - 35 L |
Design & Operation
Maintenance Features
- Blade protection design for easy replacement
- Rust-free water tank
- Integrated water source for blade cooling
- Durable, simple structural design
- Operational Features
- Ergonomic DesignAdjustable Handle HeightCrank-operated Depth AdjustmentManual Push DrivingWater Cooling System
