Technical Specifications
Overview

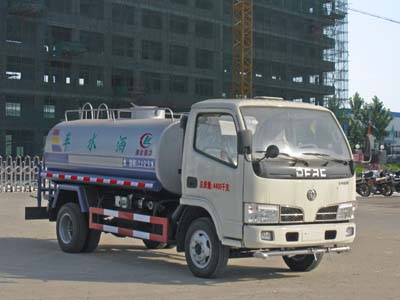

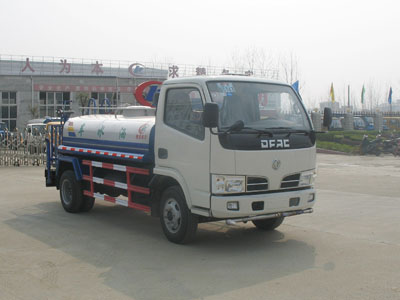

Compact Water Truck for Dust Suppression
Designed for efficient dust suppression and urban sanitation, this compact water truck offers a practical solution for municipal cleaning and environmental maintenance. Its maneuverable chassis and 6,700-liter capacity make it ideal for navigating narrow streets and congested areas. Equipped with versatile spraying systems and a powerful water cannon, it provides reliable performance for various water distribution tasks.
Performance & Capacity
- Tank Capacity
- 6700 L
- Sprinkling Width
- 14 m
- Water Cannon Range
- 28 m
- Pump Suction Lift
- 6 m
- Maximum Speed
- 90 km/h
Vehicle Dimensions
- Overall Dimensions
- 7000 x 2180 x 2750 mm
- Wheelbase
- 3800 mm
- Mass in Working Order
- 4005 kg
Technical Specifications
- Engine Displacement / Power
- 3856 ml / 88 kW
- Traction System
- 4x2
- Transmission
- 5-speed with overdrive
- Tire Specification
- 7.50-16
Equipment & Features
Standard Equipment
- Front, rear, and side sprinkler nozzles
- Rear working platform with water cannon
- High-performance water pump
- Fire valve
- Water valve
- Filter gauze
Commercial Terms
- Production Cycle
- 15-20 days
- Warranty
- 12 months
