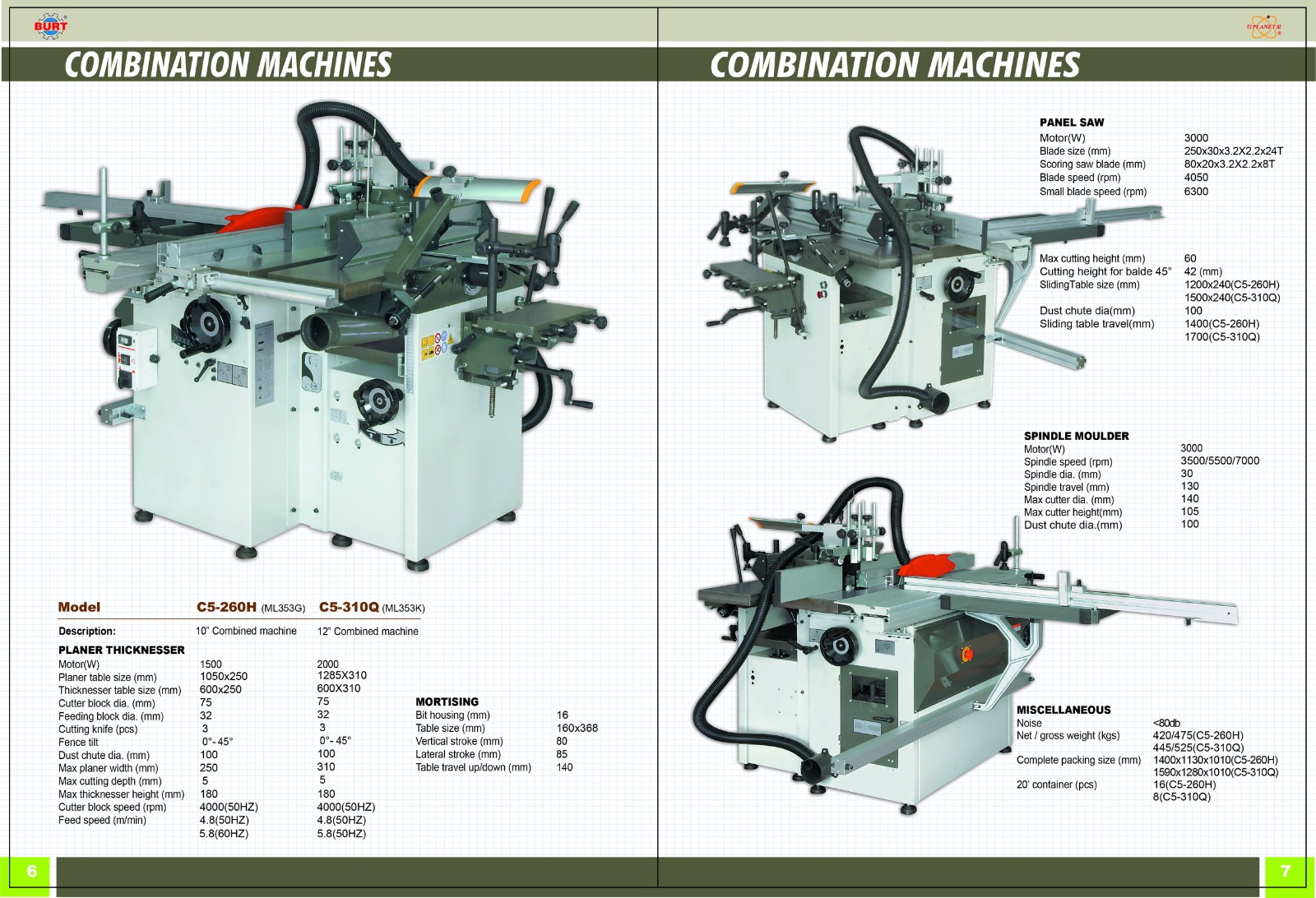

Technical Specifications
Overview
Versatile Woodworking Solution
This combination woodworking machine is designed to maximize workshop efficiency by integrating five essential functions into a single, robust unit. It features a planing and thicknessing system, a precision panel saw, a spindle moulder, and a mortising attachment, making it ideal for both professional workshops and serious hobbyists. Built with a sturdy frame for stability, this machine offers adjustable settings to ensure precise cuts and consistent results across various material types.
Key Features
Performance Highlights
3,000 W
Saw Motor Power
4,000 r/min
Cutter Block Speed
80 dB
Max Noise Level
- Integrated Functions
- PlanerThicknesserPanel SawSpindle MoulderMortising
Planer & Thicknesser
Planer Specifications
| Feature | Value |
|---|---|
| Max Planer Width | 250 mm |
| Max Planer Cutting Depth | 5 mm |
| Cutter Block Diameter | 75 mm |
| Cutting Knives | 3 pcs |
| Fence Tilt | 0° to 45° |
Thicknesser Specifications
| Feature | Value |
|---|---|
| Table Size | 600x250 mm |
| Max Thicknesser Width | 250 mm |
| Max Thicknesser Depth | 2.5 mm |
| Max Thicknesser Height | 180 mm |
| Feed Speed | 8 m/min |
Panel Saw
Sawbench Specifications
- Main Motor: 3000W
- Big Blade Size: Φ250xΦ30x3.2x2.2x24t
- Small Blade Size: Φ80xΦ20x3.2x2.2x8t
- Max Cutting Height: 65 mm
- Cutting Height (45°): 45 mm
- Sliding Table Size: 1200x240 mm
- Sliding Table Travel: 1400 mm
Spindle Moulder
Spindle Moulder Details
- Motor: 3000W
- Spindle Diameter: Φ30 mm
- Spindle Travel: 130 mm
- Spindle Speed: 3500/5500/7000 rpm
- Max Cutter Diameter: Φ140 mm
- Max Cutter Height: 105 mm
Mortising
Mortising Unit
- Bit Housing: Φ16 mm
- Vertical Stroke: 80 mm
- Table Travel (Up/Down): 140 mm
- Lateral Stroke: 85 mm
- Table Size: 161x368 mm
Physical & Logistics
Logistics Information
| Metric | Value |
|---|---|
| Gross Weight | 375/420 kgs |
| Packing Size | 1300x1130x1010 mm |
| Dust Chute Diameter | Φ100 mm |
Options
Available Upgrades
Spiral cutter block (64pcs blades)Cast iron fence150mm height machined aluminum rear fence
