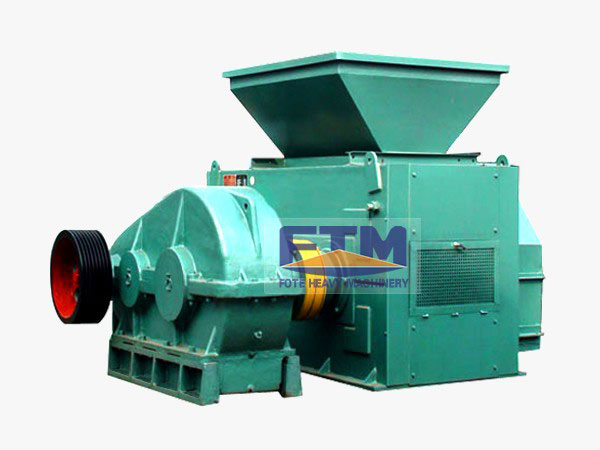

Coal Powder Briquetting Machine
This machine processes various powder materials with high efficiency and promotes energy saving and environmental protection. It plays a critical role in reusing powdery materials like anthracite and lignite for power generation, gas production, and heating.
Technical Specifications
Overview
High-Efficiency Coal Powder Briquetting
This industrial briquetting machine is designed to process various powder materials, including anthracite, soft coal, and peat, into uniform briquettes. It serves a critical role in reducing powder pollution and minimizing raw material volume for easier transportation and storage. Characterized by low power consumption and a compact structure, it is an ideal solution for maximizing the value of coal resources in metallurgy, chemical, and heating industries.
Key Features
- Main Benefits
- High EfficiencyEnergy SavingEnvironmental ProtectionCompact StructureLow Power Consumption
Technical Specifications
Performance Range
Model Specifications
| Model | Roller Diameter (mm) | Theoretical Yield (t/h) | Matching Reducer | Motor Power (kw) |
|---|---|---|---|---|
| QD290-2 | 290 | 2 | ZQ350A | 5.5 |
| QDJ360-2 | 360 | 4 | ZQ350A | 7.5 |
| QDJ430-A | 430 | 7 | ZQ400A | 11 |
| QDJ500-1 | 500 | 10 | ZQ650A | 37 |
| QDJ650-1 | 650 | 12 | ZQ750A | 45 |
| QDJ750-1 | 750 | 17 | ZQ850A | 50 |
| QDJ850-1 | 850 | 20 | ZQ1000A | 55 |
| QDJ1000-1 | 1,000 | 28 | ZQ1250A | 75 |
Applications
Compatible Raw Materials
- Anthracite
- Soft Coal
- Peat
- Coking Coal
- Lignite
- Ore Powder
- Refractory Materials
Industrial Applications
- Power Generation
- Gas Making
- Metal Smelting
- Industrial Heating
- Boiler Burning
Technology
Cold Press Molding Process
The equipment utilizes cold briquetting technology, which can be configured for both binder and non-binder molding. The standard powdered coal process typically employs a medium and low-pressure technology involving the addition of a binder followed by cold press molding without the need for immediate drying.
