CO2 Laser Marking Machine

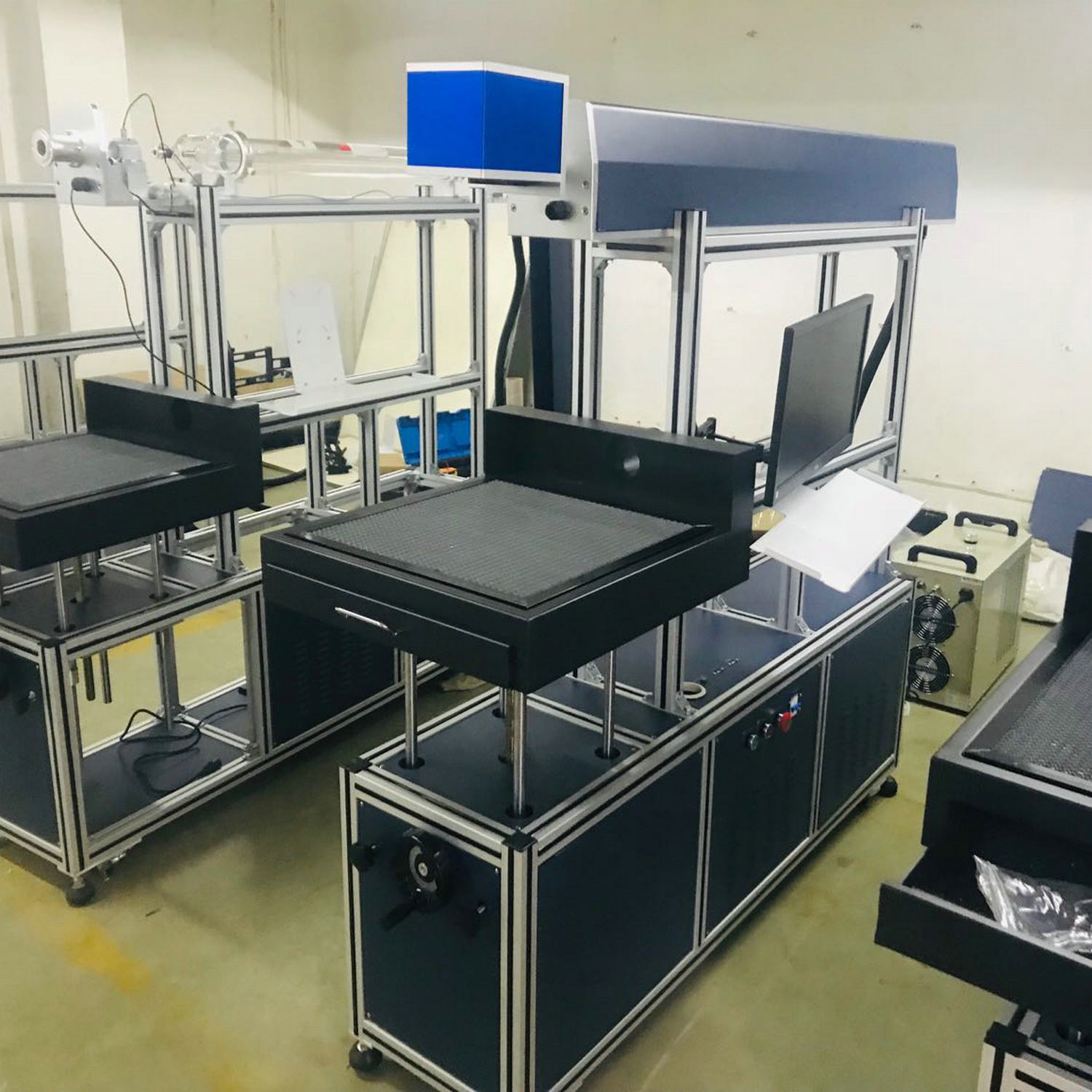

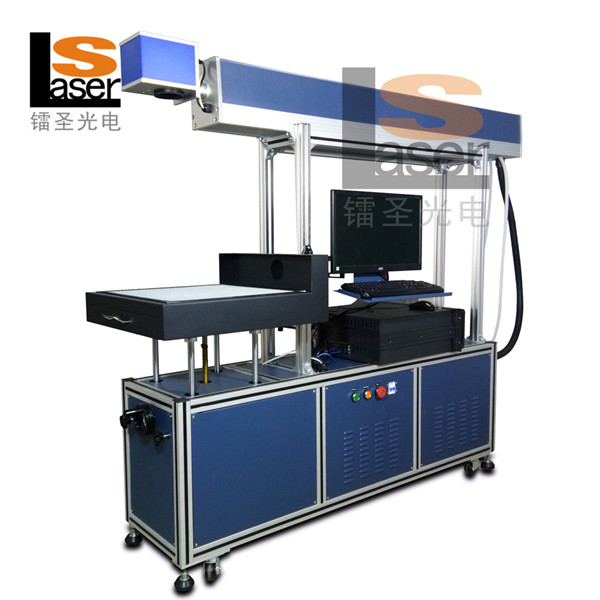

The CO2 laser marking machine is designed for high-speed and accurate marking on non-metallic materials. It features a robust frame and a user-friendly control panel for easy operation.
Technical Specifications
Overview
High-Performance CO2 Laser System
This advanced CO2 laser marking machine integrates precision optical technology with high-speed galvanometer control to deliver permanent, high-quality marking on a variety of non-metallic materials. Designed for industrial reliability, the system features a 24-hour continuous operation capability and a maintenance-free optical path. Its versatile software interface ensures compatibility with standard design formats like AI, DXF, and PLT, making it an efficient solution for engraving, marking, and color removal applications.
Technical Specifications
- Laser Wavelength
- 10.6 nm
- Laser Power
- 100 W
- Working Range
- 600 x 600 mm
- Max Marking Line Speed
- 5000 mm/s
- Repeat Positioning Accuracy
- ±0.01 mm
- Cooling Method
- Water cooling
- Power Supply
- AC220V 50Hz
- Average Power Consumption
- 1 kW
Key Features
Performance Metrics
24 hours
Continuous Operation
20 %
Efficiency Increase
- Suitable Materials
- HandicraftsPaperLeatherWoodClothPlasticRubber
- Software Compatibility
- AutoCADCorelDrawPhotoshopDXFPLTAI
System Components
Standard Configuration
| Component | Function |
|---|---|
| Laser Tube | Core marking source |
| Scanning System | High-speed galvanometer |
| Field Lens | Focusing technology |
| Control Card | Marking control interface |
| Industrial CPU | System processing |
| Cooling System | Thermal management |
