CO2 Laser Marker for Non-Metals
This CO2 laser marking machine is designed for marking non-metal materials. It uses a precision laser source to create permanent markings on surfaces like wood, plastic, and acrylic.
Technical Specifications
Product Overview
Professional CO2 Laser Marking Solution
This high-precision CO2 laser marking machine is engineered specifically for non-metal materials, offering a 100,000-hour long lifetime with zero consumables and maintenance-free operation. It delivers high-contrast, neat edges and smooth surfaces without heat deformation, making it ideal for deep marking and high-accuracy applications. With integrated air cooling and low power consumption, it provides a compact and efficient solution for industrial branding and personalization.
Performance Metrics
Key Performance Metrics
100,000 Hours
Service Life
300 char/s
Max Marking Speed
800 W
Power Consumption
Technical Specifications
Laser Parameters
| Parameter | Value |
|---|---|
| Laser Power | 10W/20W/30W/50W (Optional) |
| Laser Wavelength | 1064nm |
| Beam Quality | <2m2 |
| Pulse Repeat Frequency | 20-60KHZ |
| Power Stability (8h) | <±1% RPM |
| Mini Line Width | 50um |
| Mini Character | 3mm |
Operation & Software
Marking Area Options
- 110x110mm
- 200x200mm
- 300x300mm
Software Capabilities

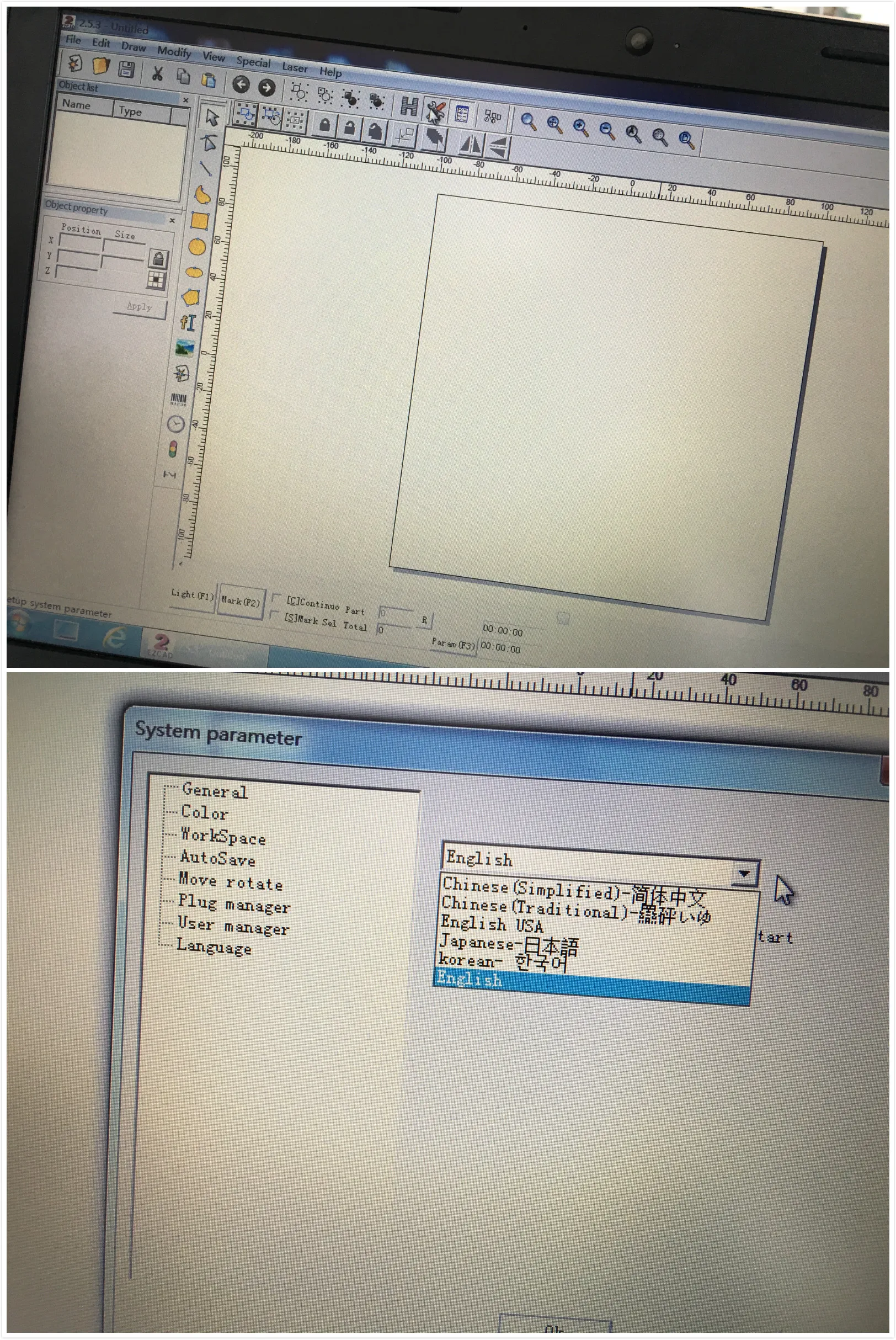

- EZCAD Software Interface
- Multi-language support (English, Chinese, Japanese, Korean)
- Real-time visualization and parameter adjustment
- Object manipulation and laser control (Light/Mark)
- Graphic Formats Supported
- PLTBMPJPGPNGTIPPCXTGAICODXF
Material Compatibility
- Applicable Materials
- FabricLeatherWooden PackingPaper PackingAcrylic PipePETPlasticPaint LayersCeramicsGlass
Hardware & Construction
- Cooling Method
- Integrated Air Cooling

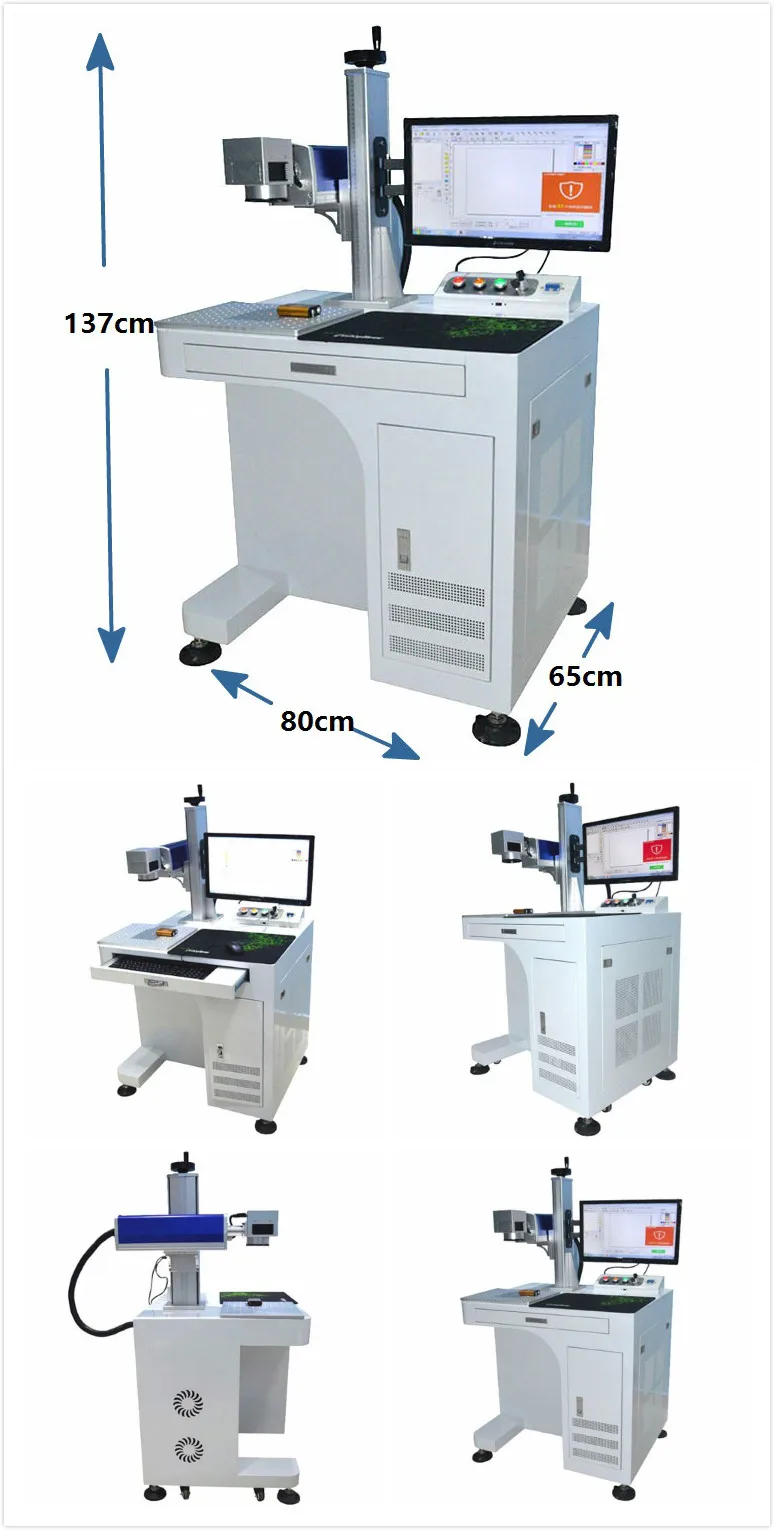

- Machine Dimensions
- 137cm (H) x 80cm (L) x 65cm (W)
- Net Weight
- 60 KG
- Working Voltage
- 220V±10% / 50HZ
Service & Compliance
Compliance Badges
CEFDA
- Warranty
- 2-3 Years (Model dependent)
