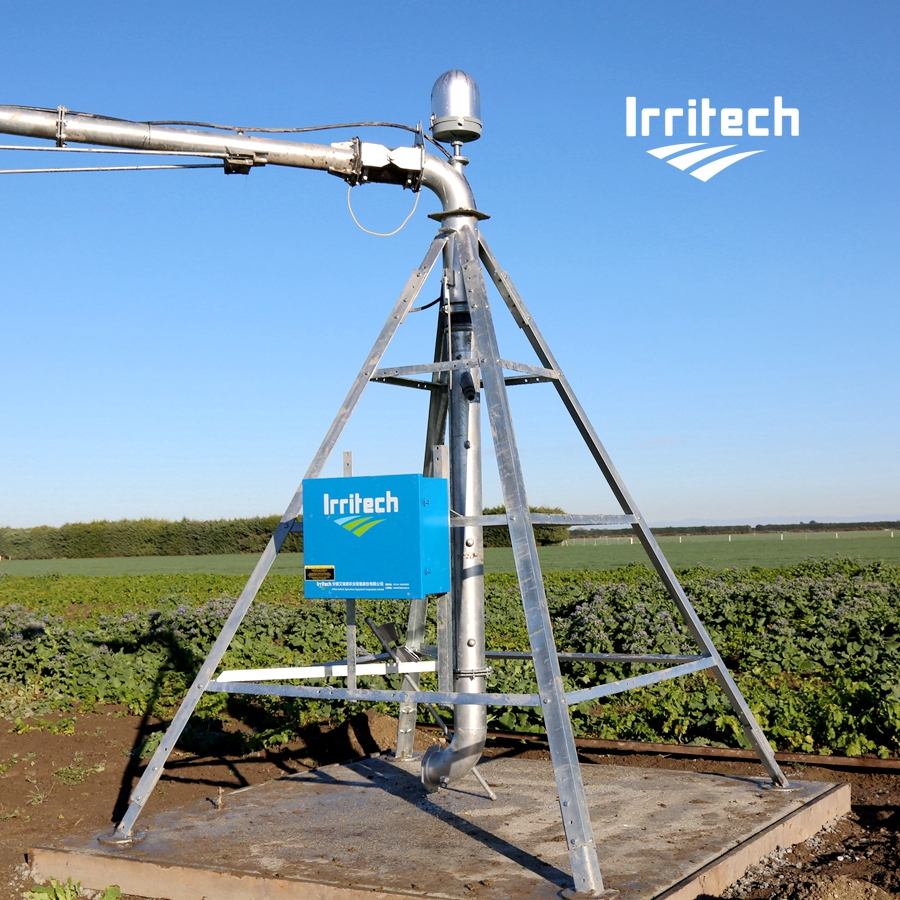

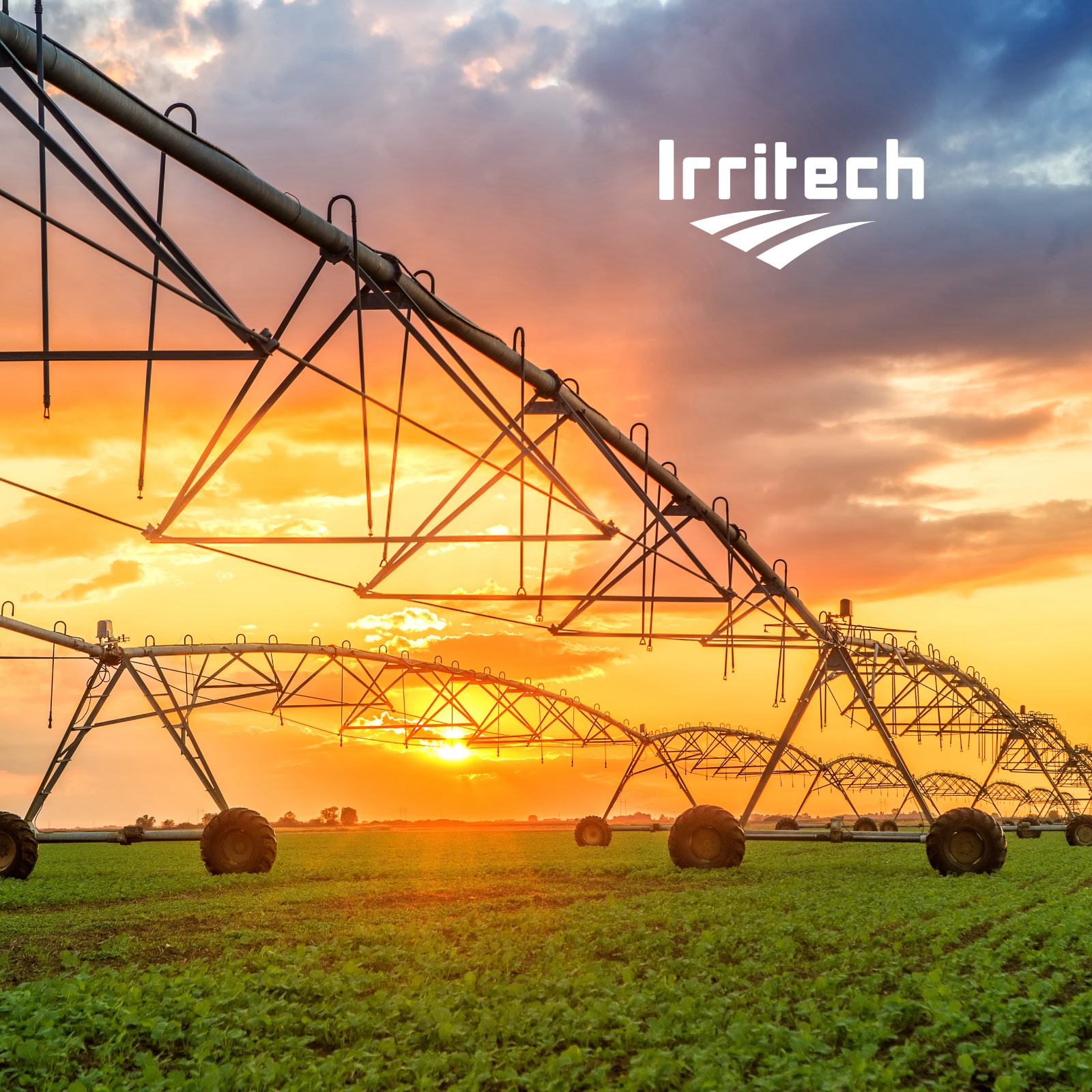

Center Pivot Irrigation System with UMC Gearbox and Senninge Sprinklers
This center pivot irrigation system features a UMC gearbox and Senninge IWOB sprinklers. It is designed for agricultural applications, providing uniform irrigation coverage across large fields.
Technical Specifications
Overview
Automated Irrigation Solution
This center pivot irrigation system is designed for large-scale agricultural operations, offering a fully automated approach to water management. It is suitable for a wide variety of crops, including corn, wheat, alfalfa, potatoes, and fruit trees, capable of covering up to 1200 acres with minimal labor. The system promotes sustainable farming by reducing water consumption by 30-50% while achieving 90% spray uniformity, significantly increasing crop productivity.
Key Advantages
- Benefits
- Water Saving (30-50%)High Spray Uniformity (90%)Automated OperationLabor EfficientMulti-functional (Irrigate/Seed/Fertilize)
Technical Specifications
Detailed Technical Parameters
| Item | Specification |
|---|---|
| Center Pivot Size | 6 5/8" (168mm) or 8 5/8" (219mm) |
| Pipe Diameter | 5" (127mm), 6 5/8" (168mm), or 8" (203mm) |
| Span Lengths | 37.5m, 43.3m, 49.1m, 54.9m, 60.7m |
| Tire Specification | 14.9-24 or 11.2-24 (includes vacuum and inner tube) |
| Motor Options | 1.5hp or 0.75hp |

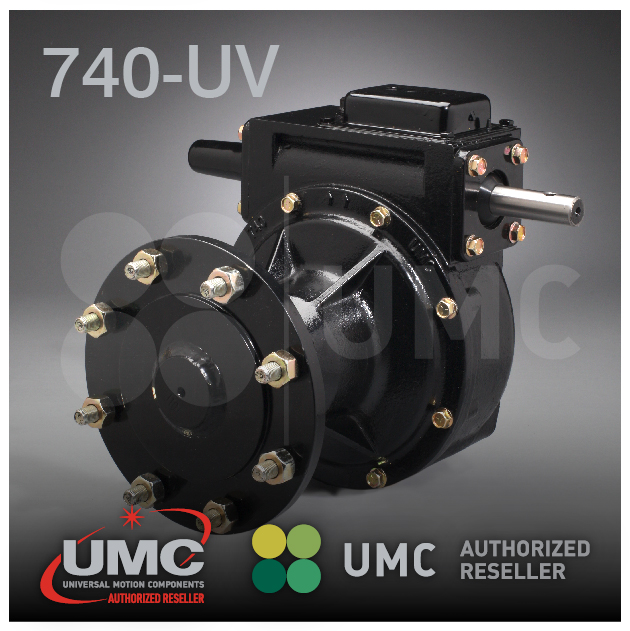

| Gear Box Ratio | 50:1 or 52:1 |
| Overhang Length | 2.7m, 5.5m, 8.2m, 11m, 16.5m, 19.5m, 25m |
Safety and Control
Safety & Control Features
- Tower box indicator light for safety circuit monitoring
- Customizable stainless steel control panel
- Integrated LED lighting for night operation
- QR codes for instant access to troubleshooting documentation
