Technical Specifications
Overview
High-Performance FTTH Optical Receiver

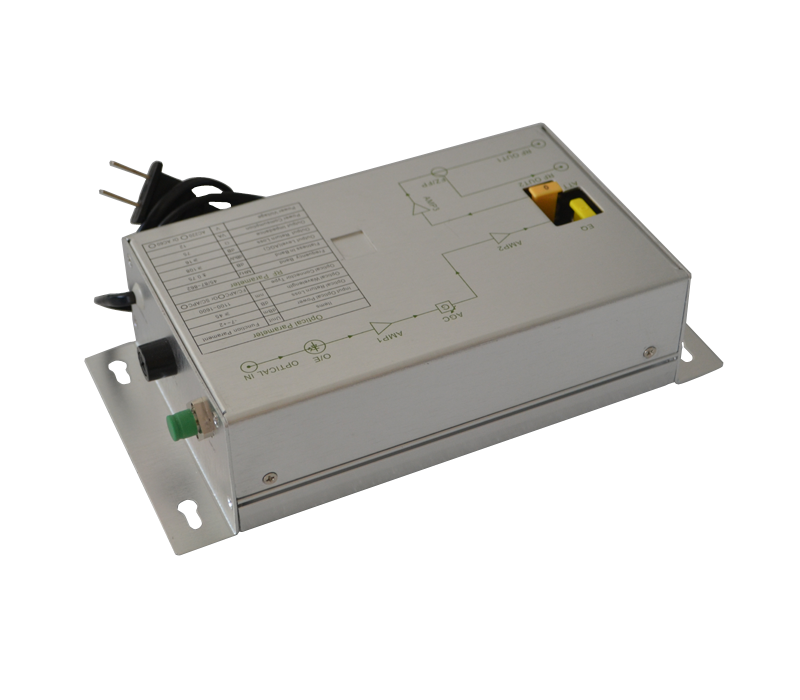

The MINI LOUDONG Optical Receiver is a high-quality solution for HFC broadband integrated networks and Fiber to the Building applications. It efficiently converts fiber signals into radio frequency signals for the transmission of high-quality image, sound, and data. Featuring an AGC (Automatic Gain Control) system and a durable aluminum alloy shell, it ensures stable output levels and excellent shielding for reliable performance in professional CATV distribution systems.
Optical Parameters
- Optical Input Power Range
- -8 ~ +2 dBm
- Recommended Input Power
- -4 ~ 0 dBm
- Optical Wavelength
- 1100 ~ 1600 nm
- Optical Return Loss
- 45 dB
- Connector Options
- FC/APCSC/APCSC/ZPC
Link Performance
C/N Ratio
51 dB
C/N (@-2dBm input)
RF Parameters
Output Ports
- RF OUT1
- RF OUT2
- RF Output Level
- 75-85 dBuV
Technical Features
Key Features
AGC (Automatic Gain Control)Low Noise AmplificationAluminum Alloy ShellWeatherproof EnclosureSingle Fiber Support
On-Device Adjustments
- ATT (Attenuation Adjustment)
- EQ (Equalization Adjustment)
- Optical Power LED Display
Power Requirements
- Power Voltage
- 110-254 VAC
