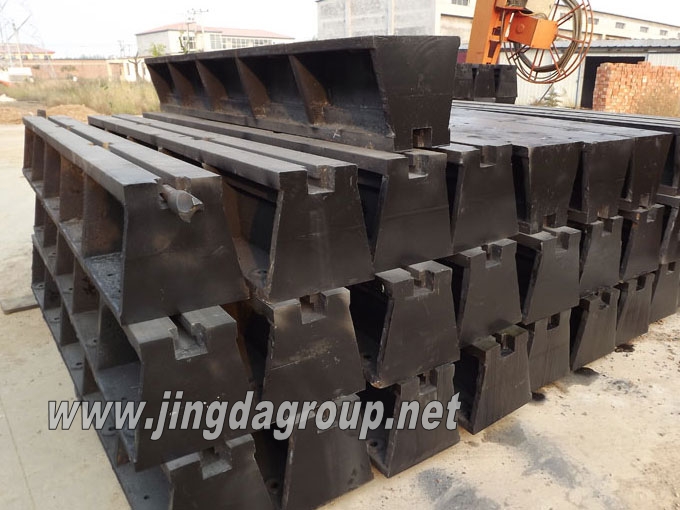

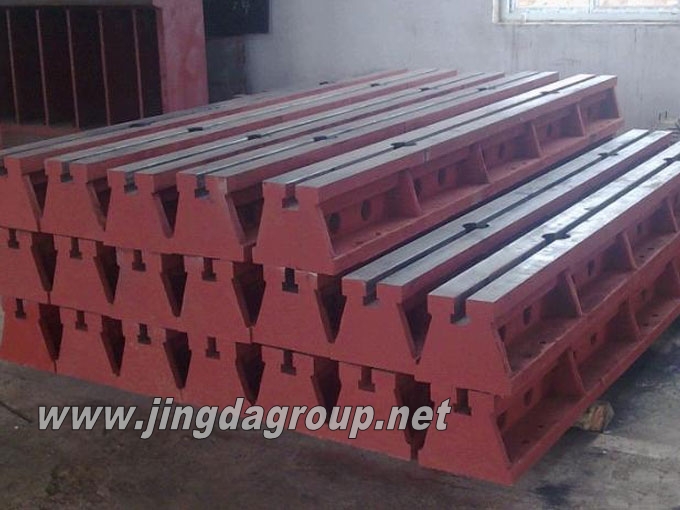

Cast Iron T-Slot Guide Rails for Machine Tools
These cast iron guide rails are designed for installation, welding, testing, and inspection of large-scale equipment. The T-slots enable versatile mounting of fixtures, tooling, and workpieces.
Technical Specifications
Product Overview
Precision Cast Iron Guide Rails
These cast iron T-slot guide rails serve as a robust foundation for large-scale equipment installation, welding, testing, and inspection. Engineered for high stability, they offer a space-saving and cost-effective alternative to traditional large-scale surface plates. Each rail is crafted from high-strength cast iron to ensure durability and long-term precision in demanding industrial environments.
Material & Quality
- Material Grade
- HT200-250 High-Strength Cast Iron
- Working Surface Hardness
- HB170-240
- Aging Treatment
- 600-700°C Artificial Annealing2-3 Years Natural Aging
Manufacturing
Molding Materials
- Casting sand
- Clay sand
- Core sand
- Resin sand
- Molding Method
- Sand Mould
Applications
Primary Applications
InstallationWeldingTestingInspection
Compatible Machinery
- Milling Machines
- Lathes
- Large-scale Equipment
Logistics & Customization
- Customization
- Customized according to client requirements; no stock available.
