Cable Lug

These cable lugs facilitate the connection of copper cables to electrical equipment. They are made from copper with tin plating and are suitable for medium voltage applications.

Request a QuotePDF
AUS CABLE LUG - Image 1

Technical Specifications

Overview

High-Conductivity AUS Cable Lugs

These AUS series cable lugs are manufactured to German DIN 46235 standards, ensuring reliable electrical connections for medium voltage applications. Constructed from high-purity copper (Cu ≥ 99.9%) with a tin-plated surface, they provide exceptional conductivity and superior corrosion resistance. The design features clear barrel markings to guide precise crimping, making them an essential component for connecting copper cables to electrical equipment.

Material & Construction

Material Composition

99.9 %
Copper Purity

Surface Treatment

Tin Plated

Standards & Application

Compliance Standard
DIN 46235
Primary Application
Connection of copper cable with copper end of electrical equipment in medium voltage.

Technical Features

Key Features

  • Clear markings on barrel for crimping location
  • Compatible with DIN standard crimping dies
  • High-purity electrolytic copper construction
  • Corrosion-resistant tin plating

Sizing & Dimensions

Conductor Size Range
6mm²10mm²16mm²25mm²35mm²50mm²70mm²95mm²120mm²150mm²185mm²240mm²300mm²400mm²500mm²630mm²800mm²
Available Stud Sizes
M5M6M8M10M12M14M16M20

Technical Specifications Table

Specifications (6mm² - 70mm²)

TypeConductor (mm²)StudL (mm)Crimping Die
AUS66M5/M6/M824DT6
AUS1010M5/M6/M827DT6
AUS1616M6/M8/M10/M1236DT8
AUS2525M6/M8/M10/M1238DT10
AUS3535M6/M8/M10/M1242DT12
AUS5050M8/M10/M12/M14/M1652DT14
AUS7070M8/M10/M12/M14/M1655DT16

Specifications (95mm² - 800mm²)

TypeConductor (mm²)Length L (mm)Crimping Die
AUS959565DT18
AUS12012070DT20
AUS15015078DT22
AUS18518582DT25
AUS24024092DT28
AUS300300100DT32
AUS400400115DT38
AUS500500125DT42
AUS630630135DT44
AUS800800165N/A

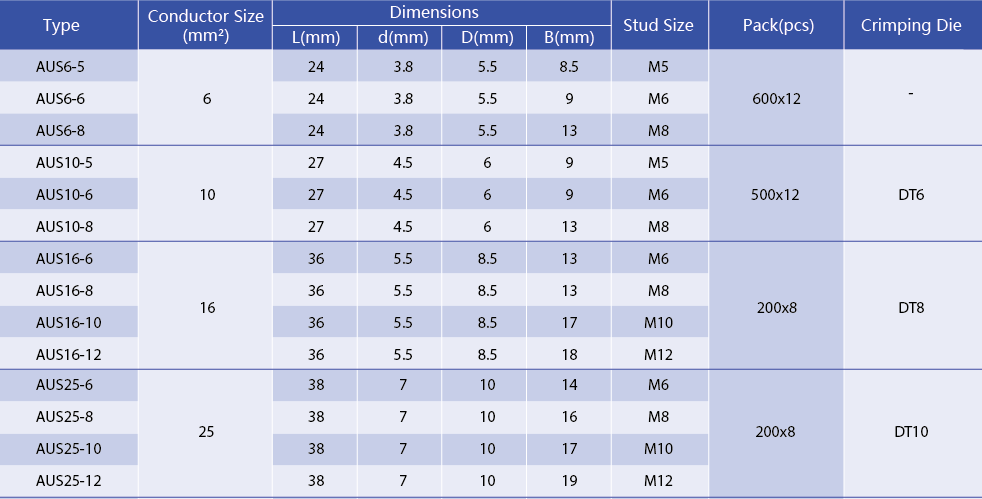

Technical dimension chart for small AUS cable lugs
Detailed dimensions and stud size options for 6mm² to 25mm² conductor sizes.

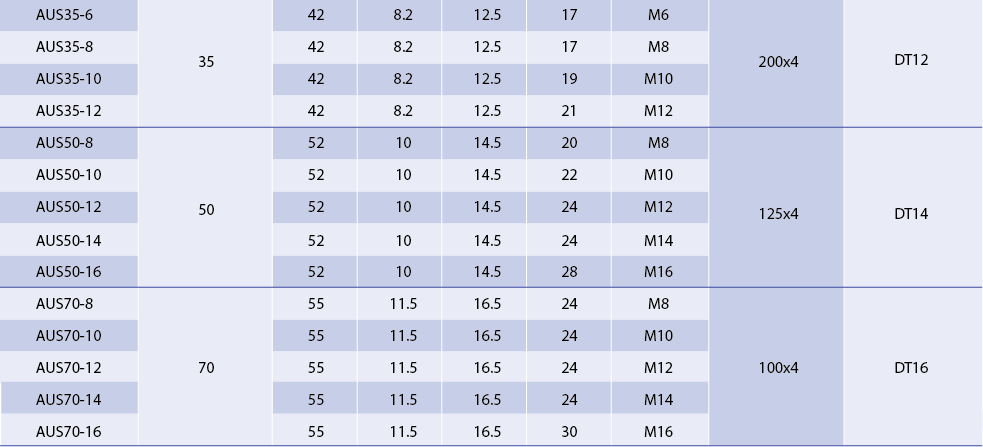

Technical specifications for medium AUS cable lugs
Sizing data for AUS35, AUS50, and AUS70 series lugs.

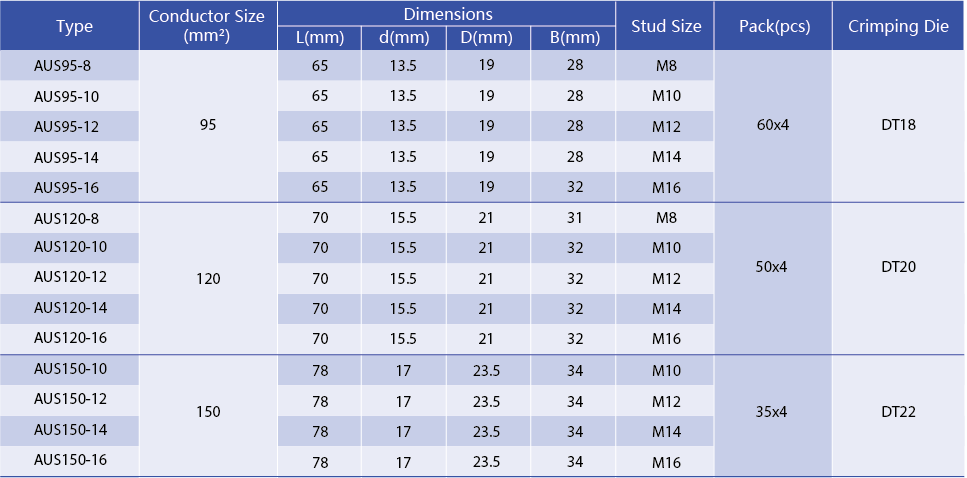

Dimension table for 95mm² to 150mm² cable lugs
Technical parameters for high-capacity AUS series cable lugs.

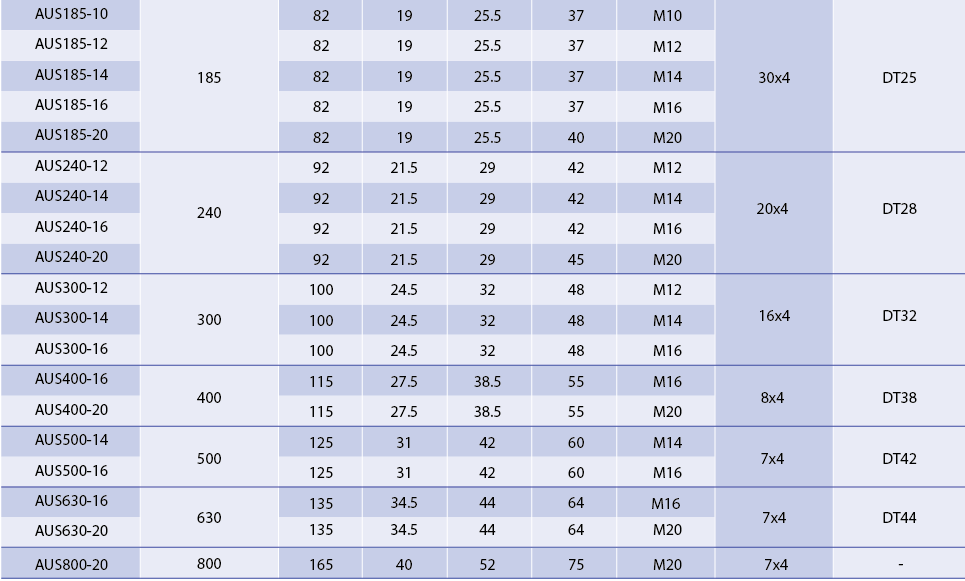

Large scale cable lug specification chart
Specifications for heavy-duty lugs ranging from 185mm² up to 800mm².
