Biomass Briquette Machine
The biomass briquette machine converts wood waste into solid fuel. It uses high temperature and pressure to create biomass charcoal from materials like wood chips, rice husks, and bagasse.
Technical Specifications
Product Overview
Sustainable Biomass Conversion

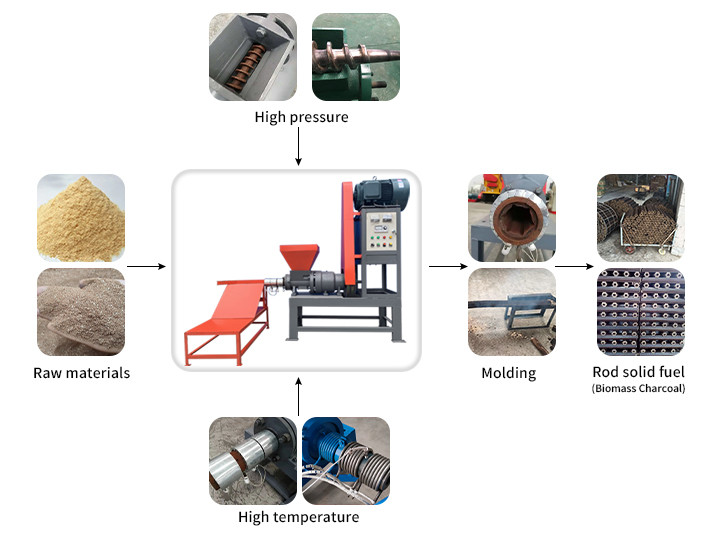

The biomass briquette machine efficiently transforms agricultural and forestry residues such as sawdust, wood shavings, and rice husks into high-density hollow-rod solid fuel. Utilizing high-temperature and high-pressure extrusion, the machine produces consistent biomass charcoal with superior calorific value and easier storage properties compared to raw materials. This process offers a sustainable solution for industrial and residential heating needs without requiring any binding agents.
Technical Specifications
Operating Temperature
300 °C
Forming Temperature
Material Constraints
- Fineness within 6mm
- Moisture content between 8% - 12%
- Briquette Length
- 10-15cm
- Compatible Raw Materials
- Bamboo chipsWood chipsRice husksPeanut husksShavingsBagasse
Operational Details
Daily Maintenance
- Check oil level (750ml)
- Run no-load test for 10 minutes
- Clean remaining material after shutdown
Operation Buttons
| Button Color | Action |
|---|---|
| Green | Forward Rotation |
| Red | Stop |
| Yellow | Reverse |
Construction
Component Materials
Full Copper MotorChromium-Manganese Alloy Mold
