Bimetallic Lug - French Standard (CAUBT)
The CAUBT series bimetallic lugs are specifically designed for the transition connection between aluminum or aluminum alloy cables and copper terminals of low-voltage electrical equipment. Manufactured to the NF C 63-061 French standard, these lugs utilize friction-welding technology to ensure a high-strength bond between the aluminum barrel and copper palm. This construction prevents galvanic corrosion and ensures a reliable, long-lasting electrical connection in power distribution systems.
Technical Standards
Compliance Standard
NF C 63-061
Material Composition
Material Purity
99.5 %
Aluminum (Al)
99.9 %
Copper (Cu)
Design Features
Key Features
- Friction welded joint for superior conductivity
- Oil blocking structure to protect cable integrity
- Prefilled with jointing compound to prevent oxidation
- Clear markings on barrel for precise crimping location
Sizing & Dimensions

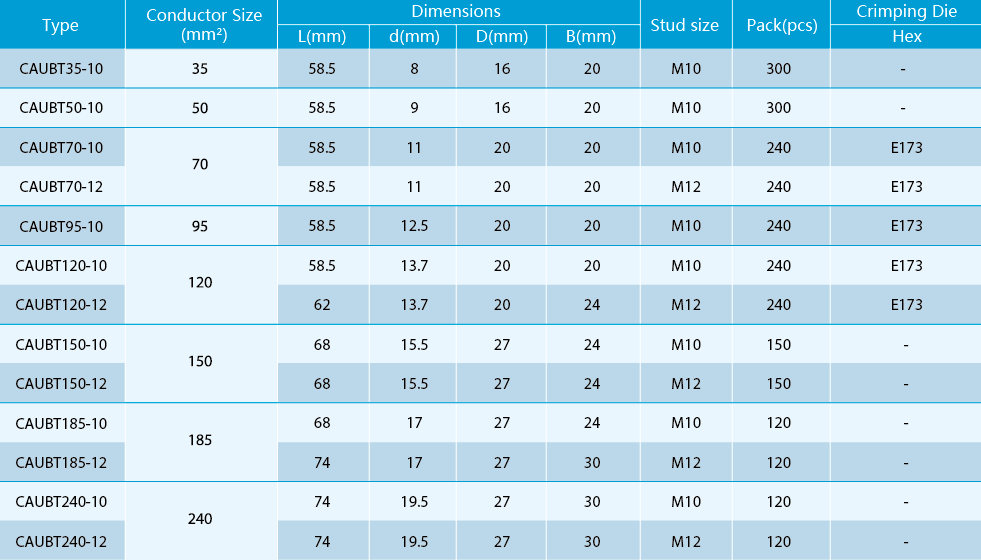

Product Specifications Table
| Type | Conductor Size (mm²) | Stud Size | L (mm) | d (mm) | D (mm) |
|---|---|---|---|---|---|
| CAUBT35-10 | 35 | M10 | 58.5 | 8 | 16 |
| CAUBT50-10 | 50 | M10 | 58.5 | 9 | 16 |
| CAUBT70-10 | 70 | M10 | 58.5 | 11 | 20 |
| CAUBT95-10 | 95 | M10 | 58.5 | 12.5 | 20 |
| CAUBT120-12 | 120 | M12 | 62 | 13.7 | 20 |
| CAUBT150-12 | 150 | M12 | 68 | 15.5 | 27 |
| CAUBT185-12 | 185 | M12 | 74 | 17 | 27 |
| CAUBT240-12 | 240 | M12 | 74 | 19.5 | 27 |
| CAUBT300-10 | 300 | M10 | 90 | 22 | 30 |
| CAUBT300-14 | 300 | M14 | 90 | 22 | 30 |
Installation
- Crimping Die Reference
- Hexagonal crimping die E173 applicable for sizes 70mm² to 120mm².
Logistics
- Standard Packaging
- 120 to 300 pieces per pack depending on lug size.
