Bicycle Wheel Hub
These bicycle wheel hubs are engineered for optimal performance and long-lasting durability. They are available in various spoke hole configurations, including 28H, 32H, and 36H, and feature axles made of S45C material.
Technical Specifications
Overview
High-Performance Bicycle Hubs
These bicycle hubs are engineered for durability and consistent performance across various cycling applications. Constructed with high-quality S45C axle material, they are designed to withstand rigorous use while maintaining smooth operation. Available in a wide range of configurations, including different spoke hole counts and axle dimensions, these hubs offer the versatility needed for custom wheel building and maintenance.
General Specifications
- Available Colors
- SilverRedYellowBlueBlackPurple
- Spoke Hole Configurations
- 28H32H36H40H
- Gauge
- 14G
Technical Data

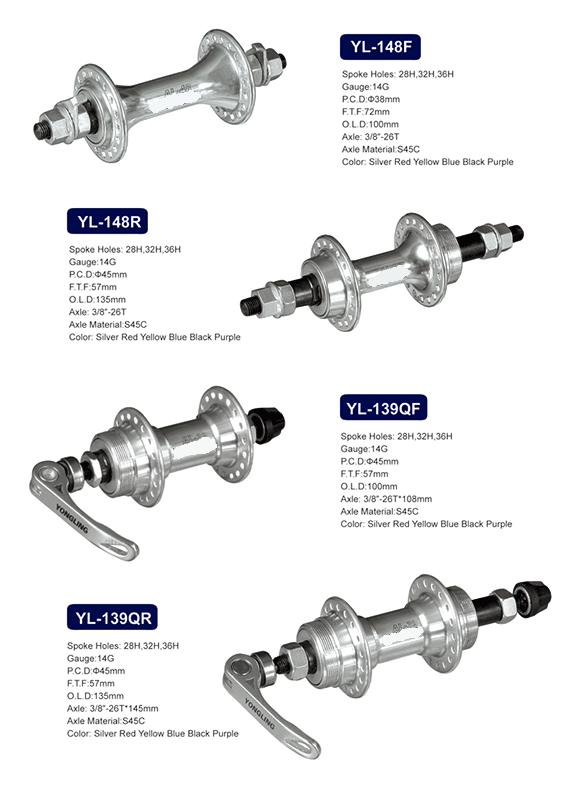

Model Specifications Table
| Model | O.L.D (mm) | P.C.D (mm) | Axle Material |
|---|---|---|---|
| YL-148R | 135 | 45 | S45C |
| YL-148F | 100 | 38 | S45C |
| YL-139QR | 135 | 45 | S45C |
| YL-139QF | 100 | 45 | S45C |
Packaging and Logistics
Packaging Details
50 PCS
Standard Quantity
20 KG
Average Net Weight
