Battery Powered Hydraulic Crimping Tool
This battery-powered hydraulic crimping tool delivers reliable crimping for copper and aluminum connectors. It provides a 230kN crimping force across a 120-630mm² range.
Technical Specifications
Overview
Professional Hydraulic Crimping Solution
The JMD-630A is a robust, battery-powered hydraulic crimping tool engineered for high-performance electrical applications. Designed to handle both copper and aluminum lugs and connectors, it delivers a powerful 230kN crimping force to ensure reliable connections. With its ergonomic design and portable battery operation, this tool is ideal for demanding field conditions where efficiency and precision are paramount.
Technical Specifications
Crimping Force
230 kN
Crimping Force
Tool Dimensions & Weight
- Length: 540mm
- Weight (incl. battery): 8.8kg
- Crimping Range
- 120mm² - 630mm²
Power & Battery
- Battery System
- 18V / 4.0Ah Li-ion (2 batteries included)
- Charger Compatibility
- 110V - 240V
Package Contents
- What's in the Box
- JMD-630A ToolDie SetUser ManualPlastic Carry CaseBattery Charger2x 18V Batteries

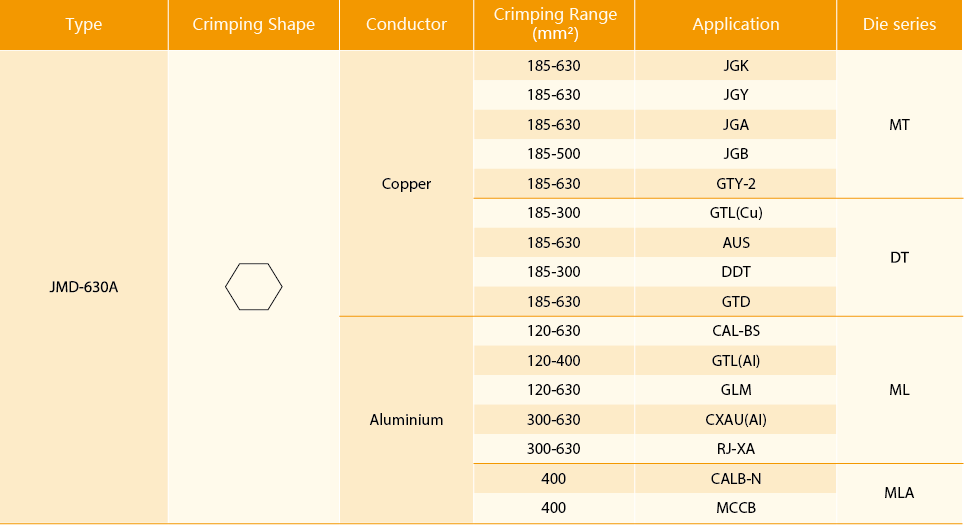

Compatibility
Supported Connector Types
| Category | Series/Types |
|---|---|
| Copper Connectors | JGK, JGY, JGA, GTY-2, GTL(Cu), AUS, DT, GTD, CAL-BS, GLM |
| Aluminum Connectors | GTL(Al), CXAU(Al), RJ-XA, CALB-N, MCCB |
| Die Series | MT, DT, ML, MLA |
