Battery Powered Hydraulic Crimping Tool
Battery powered hydraulic crimping tool for both copper and aluminium lugs and connectors in order to achieve convenient crimping process. The hydraulic system delivers high crimping force, ensuring secure and consistent connections.
Technical Specifications
Overview
Professional Battery-Powered Crimping
The JMD-630A is a robust, battery-powered hydraulic crimping tool engineered for high-efficiency crimping of both copper and aluminum lugs and connectors. Designed for convenience and portability, this tool delivers a powerful 230kN crimping force to ensure secure and consistent electrical connections in demanding field environments. It comes as a complete kit, including two high-capacity batteries and a versatile charging system, making it an essential asset for electrical power transmission and distribution professionals.
Technical Specifications
Crimping Force
- Crimping Range
- 120mm² - 630mm²
- Tool Length
- 540 mm
- Weight (incl. battery)
- 8.8 kg
Power System
- Battery Details
- 18V4.0AhLi-ion2 Batteries Included
- Charger Voltage
- 110V - 240V
Package Contents
What's in the box
- JMD-630A Crimping Tool
- Die set
- User manual
- Plastic carry case
- Battery charger (110V-240V)
- 2 x 18V/4.0Ah Li-ion batteries

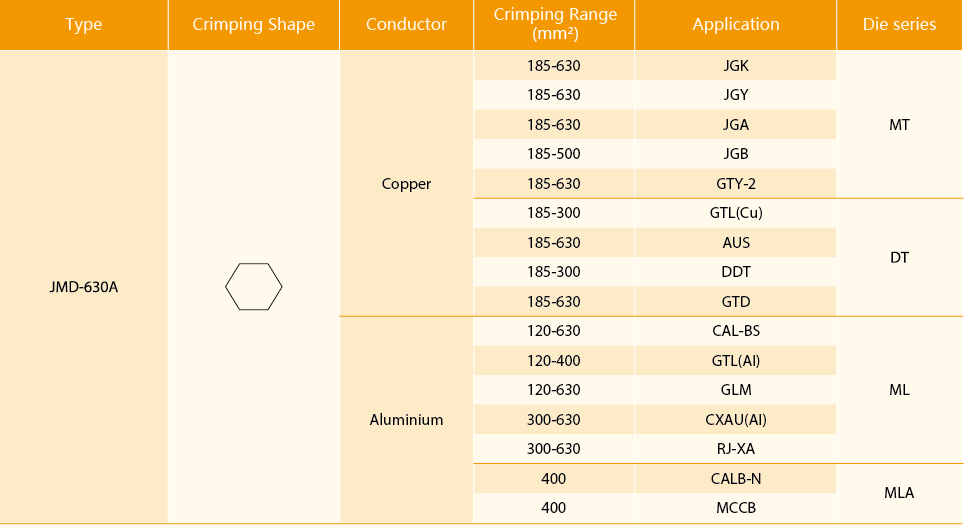

Compatibility Matrix
Supported Die Series
| Conductor Material | Range (mm²) | Compatible Series |
|---|---|---|
| Copper | 185-630 | JGK, JGY, JGA, GTY-2, AUS, DT, GTD, CAL-BS |
| Copper | 185-500 | JGB |
| Copper | 185-300 | GTL(Cu), DDT |
| Aluminium | 120-630 | GTL(Al), GLM |
| Aluminium | 120-400 | CAL-BS |
| Aluminium | 300-630 | CXAU(Al), RJ-XA |
| Aluminium | 400 | CALB-N, MCCB |
