Automotive Power Socket Panel with USB Charger and Voltmeter

This panel features a 50A triple power connector, a 5V 3.1A USB charger socket, a voltmeter, and a power socket. It is designed for marine and automotive applications.

Request a Quote Download PDFPDF

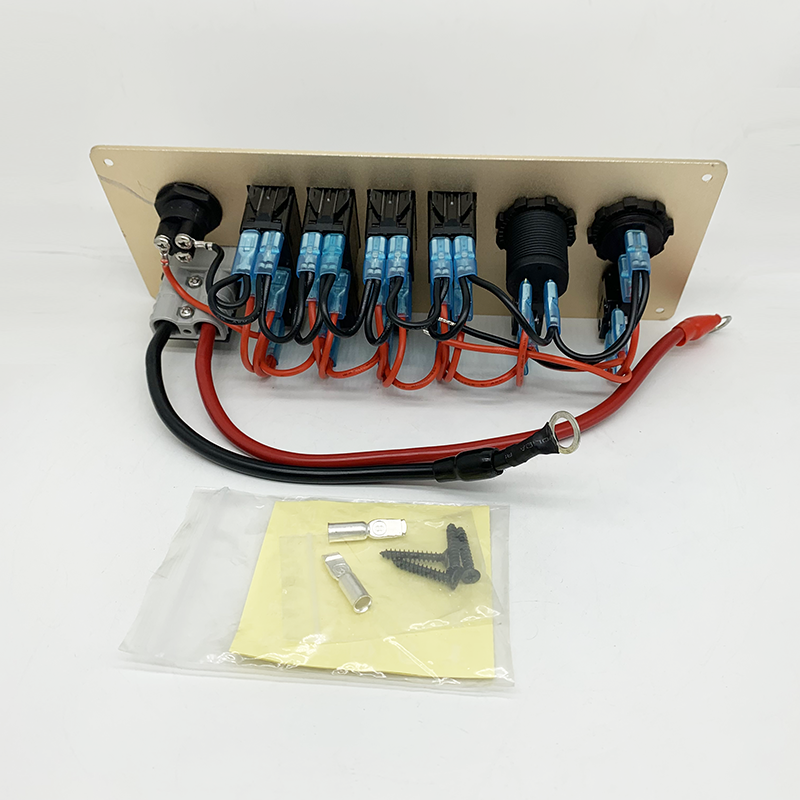

50A Triple Power Connector Panel with 5V 3.1A usb charger socket voltmeter and power socke - Image 1

Technical Specifications

Product Overview

Versatile Power Distribution Solution

This multifunctional 50A triple power connector panel is engineered for demanding marine and automotive environments. It integrates a high-current power connection, dual USB charging ports, and a real-time digital voltmeter into a single, durable assembly. Designed for easy installation in boats, RVs, and off-road vehicles, it provides a centralized hub for monitoring battery health and powering multiple electronic devices simultaneously.

Technical Specifications

Current Rating

20 A

at 12V

10 A

at 24V

50 A

Triple Connector

Operating Voltage: 12V DC24V DC

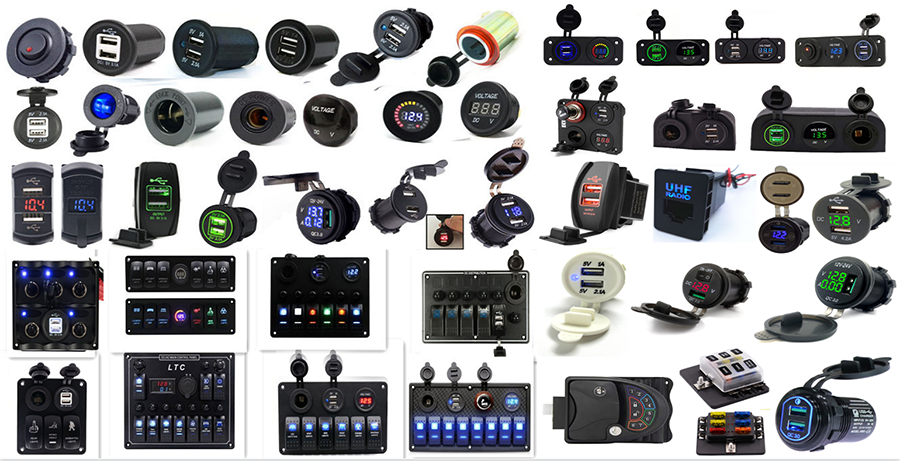

Various panel configurations and socket types — Wide range of customizable socket and display configurations available to suit specific B2B requirements.

Power & Charging

USB Output: DC 5V / 3.1A Total (Dual Ports)
Voltmeter Display Range: 0 - 30V DC

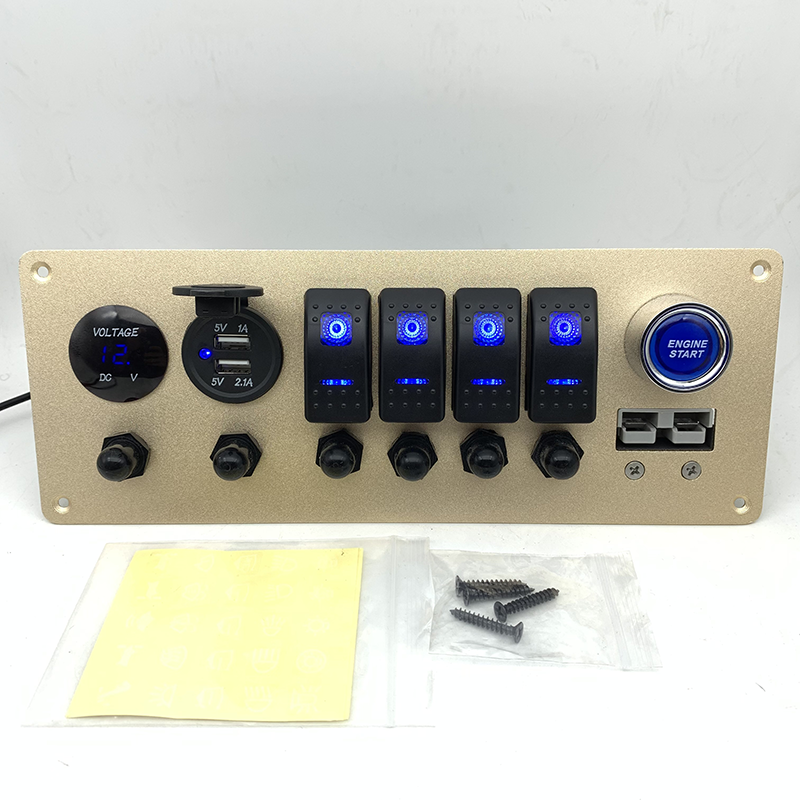

Close-up of the power panel showing voltmeter and USB ports — Integrated digital voltmeter and dual USB charging ports (5V 1A and 2.1A) with protective covers.

Design & Build

Construction Materials

Aluminium
ABS Plastic
Metal

Panel Components

4-Gang LED Rocker Switches
Dual USB Socket
Digital Voltmeter
12V Power Socket
5-Pin Connection Design

Indicator Light Color

Blue LED

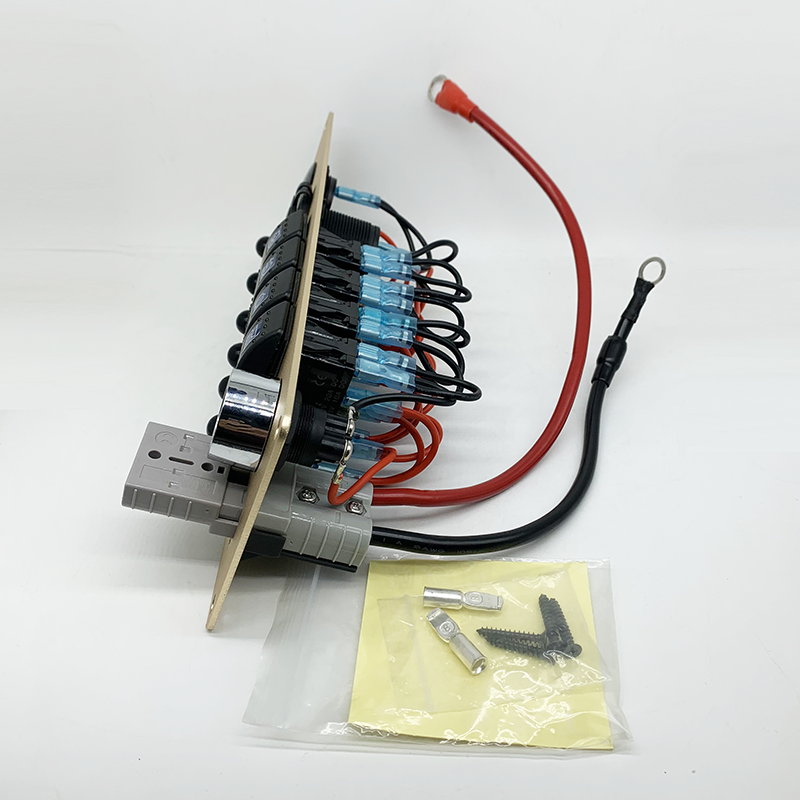

Full panel assembly with wiring and fuses — Complete pre-wired panel assembly featuring rocker switches and integrated circuit protection.

Application

Recommended Applications: MarineBoatRVAutomotiveCar

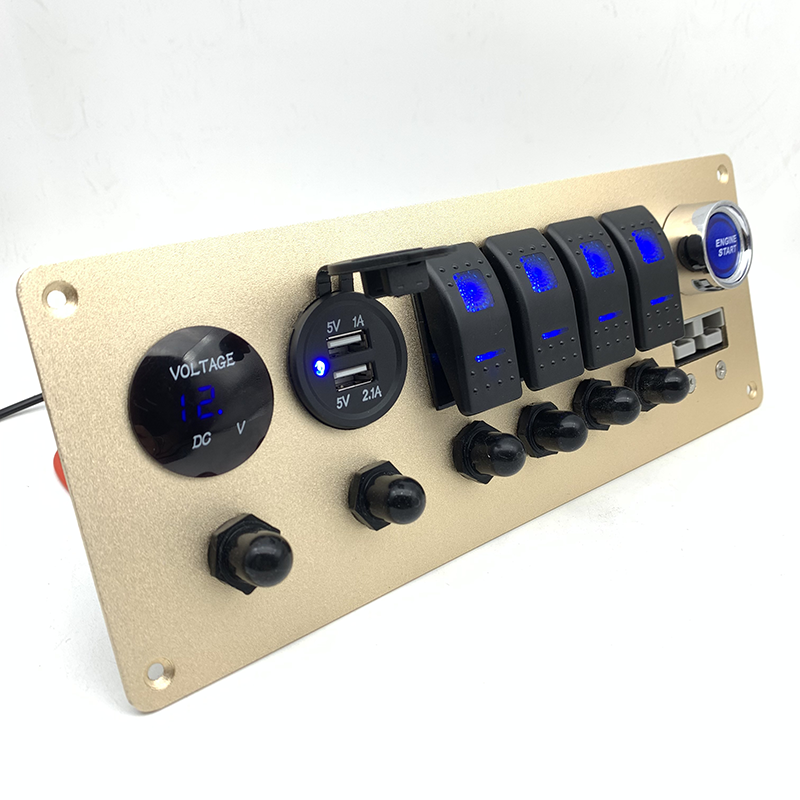

Marine power panel with engine start button — Versatile configuration options including engine start buttons and high-current connectors for marine use.

Installation

Wiring Details: 10AWG 105C FT1 Cable

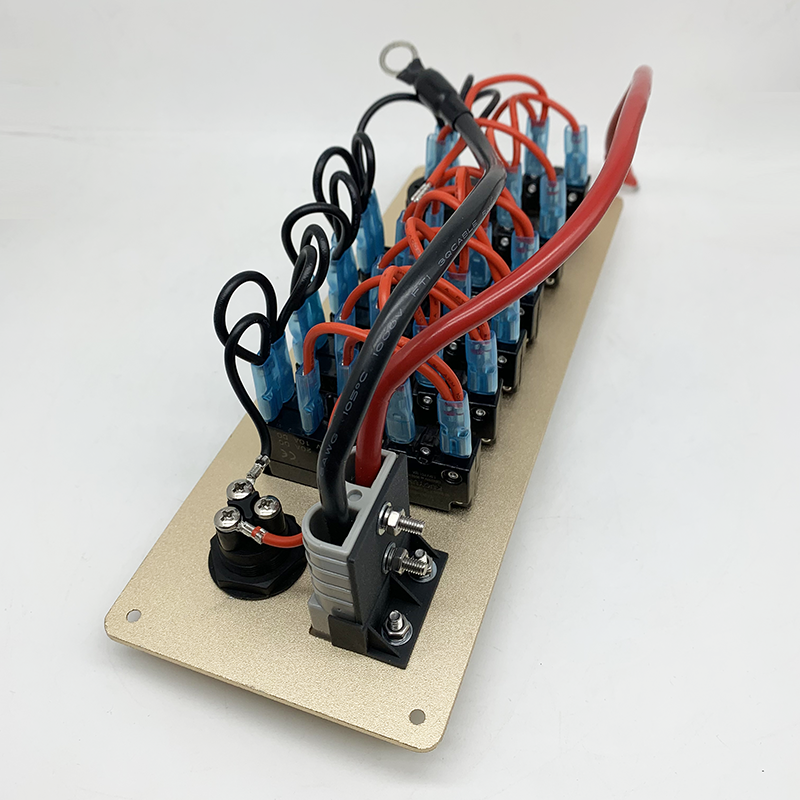

Rear view of panel wiring — Heavy-duty 10AWG wiring ensures reliable power delivery for high-current applications.
