Product Overview

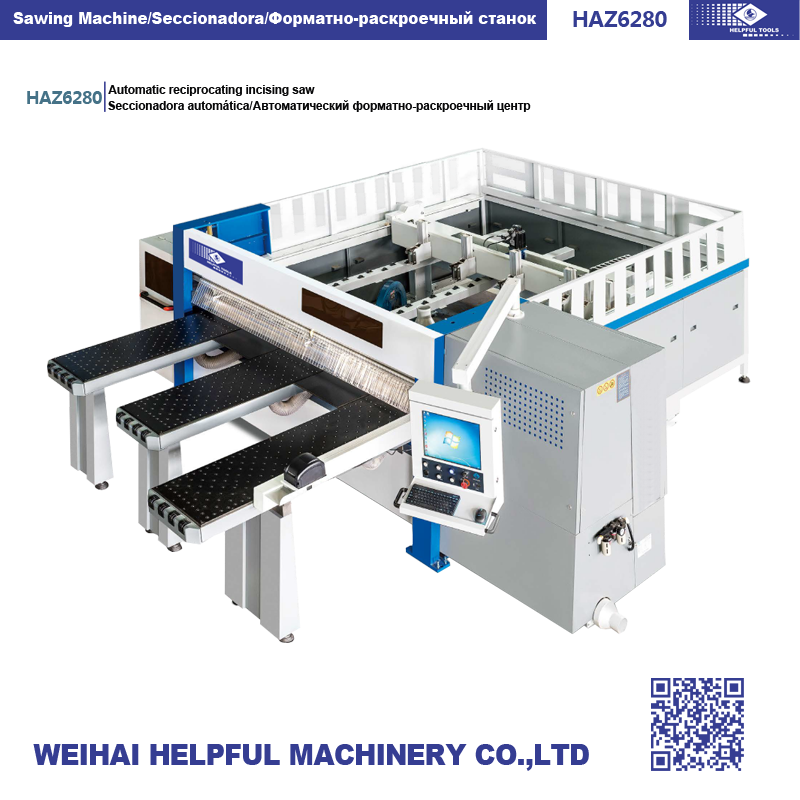

High-Precision Automatic Woodworking Saw
The HAZ series automatic reciprocating incising saw is engineered for industrial-grade wood cutting with a focus on precision and surface protection. Featuring a heavy-duty frame and advanced rack-and-pinion driving mechanisms, it ensures stable operation under heavy workloads. This machine significantly reduces manual labor while maintaining consistent, repeatable cutting quality for professional woodworking environments.
- Industrial Applications
- WoodworkingBoard CuttingFurniture ProductionIndustrial SawingAutomatic Format Cutting
Performance Metrics
Key Performance Metrics
105 m/min
Max Cutting Speed
85 m/min
Max Feeding Speed
4,500 rpm
Main Motor Speed
Technical Specifications
Model Specifications
| Feature | HAZ3150 | HAZ6280 |
|---|---|---|
| Max. Cutting Size | 3200 x 3100 x 100mm | 2800 x 2600 x 100mm |
| Main Saw Motor Power | 15kw | 13.5kw |
| Scoring Saw Motor Power | 3.0kw | 3.0kw |
| Feeding Servo Motor | 2.2kw | 2.2kw |
| Saw Carriage Servo | 2.0kw | 2.0kw |
| Weight | 3500kg | 3200kg |
| Outline Size | 7000 x 5900 x 1700mm | 6000 x 5000 x 1700mm |
Design & Construction
Frame & Drive System
- Heavy-duty machine frame design for long-term stability

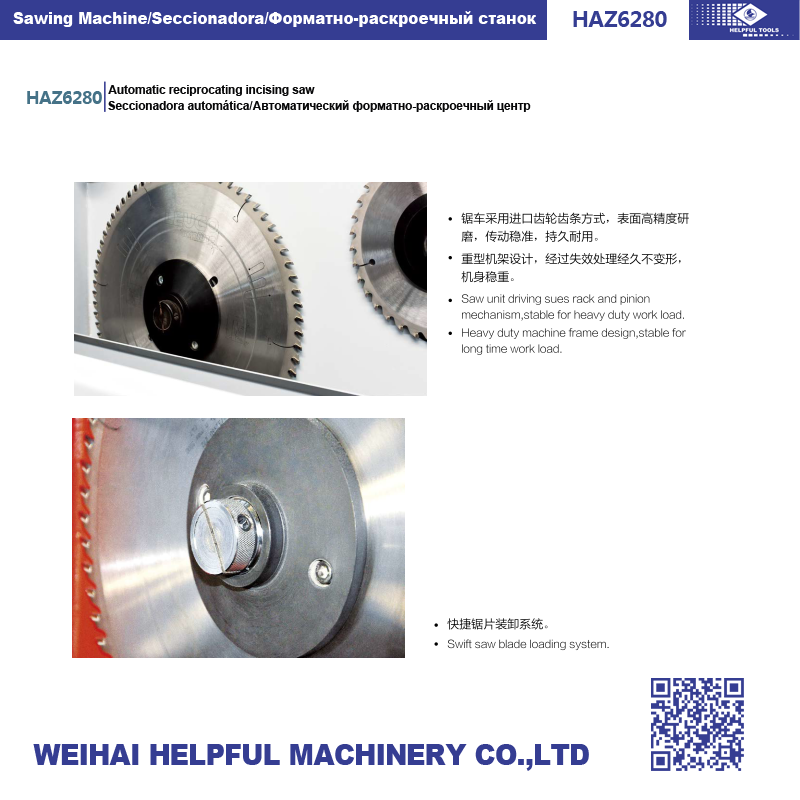

- Saw unit driving via high-precision rack and pinion mechanism
- Imported gear rack with high-precision surface grinding
- Failure treatment processed frame to prevent deformation
- Swift saw blade loading system for reduced downtime
Material Handling
Board Protection & Handling

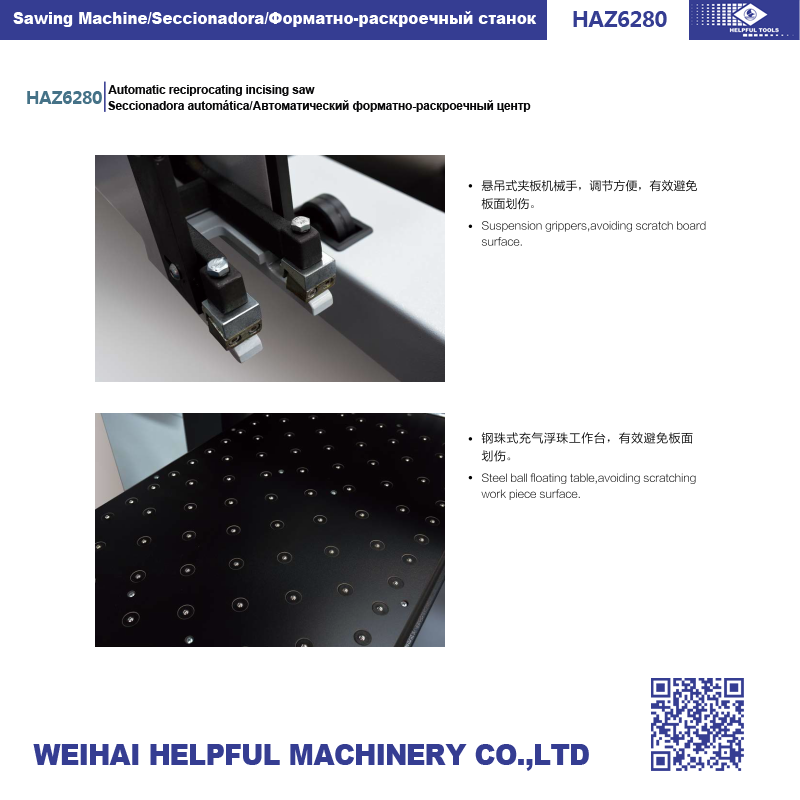

- Suspension grippers for secure board handling without surface damage

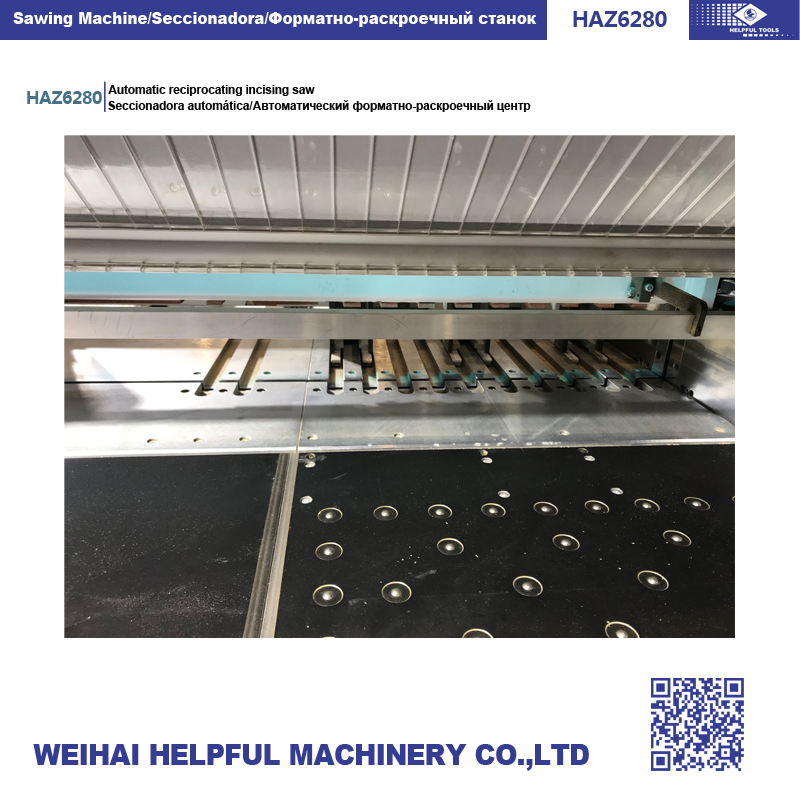

- Steel ball floating table to prevent scratching during workpiece movement

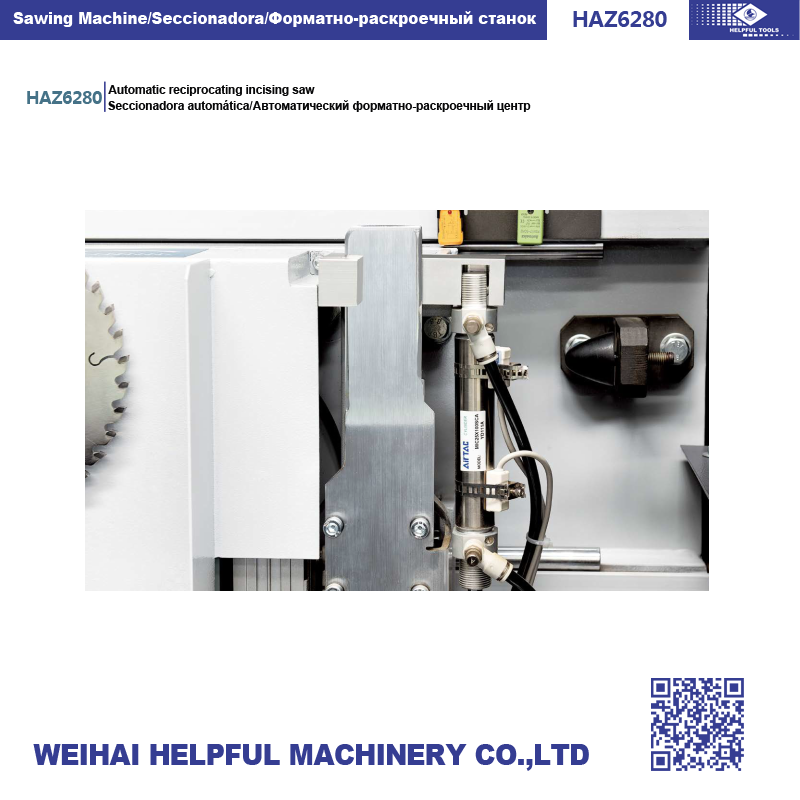

- Pneumatic cylinder control for smooth automated movement
- Adjustable gripper system for versatile board thicknesses
Operational Requirements
- Working Air Pressure
- 0.7 Mpa
Saw Blade Specifications
Blade Components
- Main Saw Diameter: 380mm (400mm optional)
- Scoring Saw Diameter: 200mm
